Jeans Pants Automations

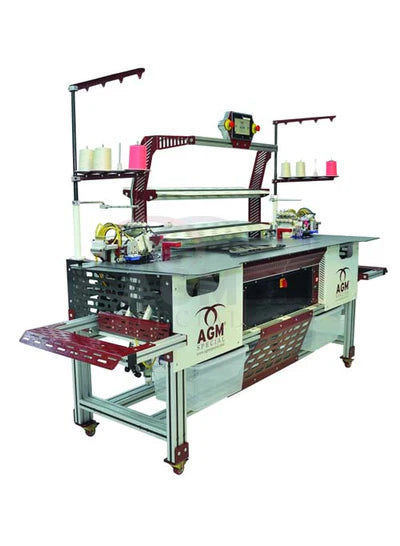

AGM Special Double Head Serging Automat KLR 400-T2

Production Capacity-Approx. 250 panels Per Hour.

Direct drive servo electronic motor.

Suitable for deeply curved forms of the panels.

AGM Special Straight and Curved Waistband Automat Machine

AGM Special SKU: KM 921 AR-T3

THE STAND-ALONE NEEDLE SUPPORT SYSTEM

ADJUSTABLE CUTTING DEVICE

200-250 pcs Per Hour

PROGRAMMABLE SKIP STITCH OPTIONS

SPECIAL DESIGN 6 NEEDLE CHAIN STITCH MACHINE HEAD (PATENTED)

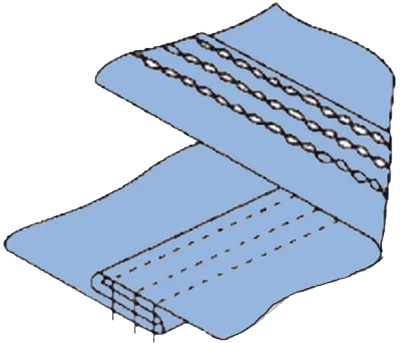

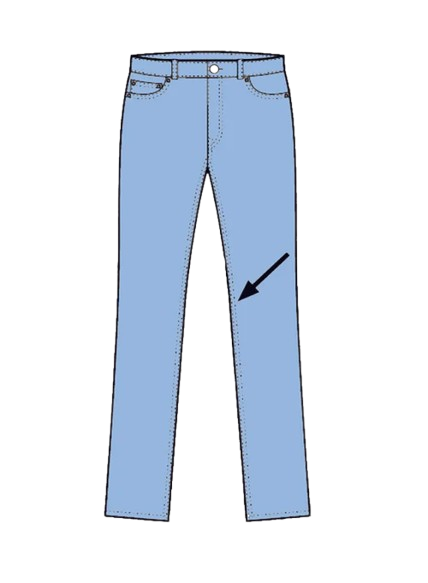

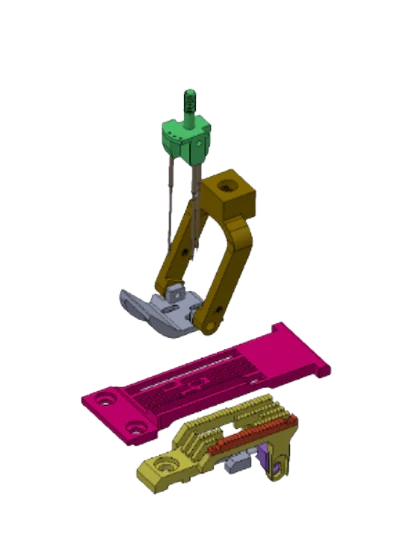

AGM Special Electronic Feed Off The Arm Machine For Heavy Materials

FULL OIL LUBRICATION SYSTEM GEARBOX(PATENTED)

3 needle chain stitch.

Direct drive servo electronic motor.

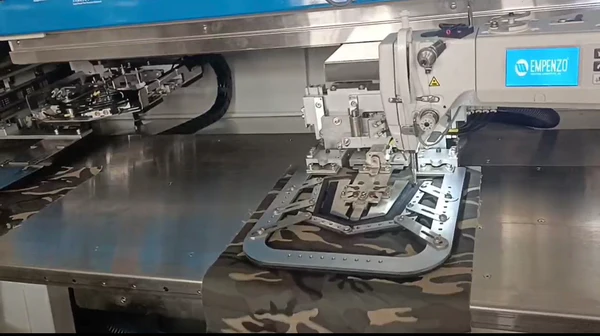

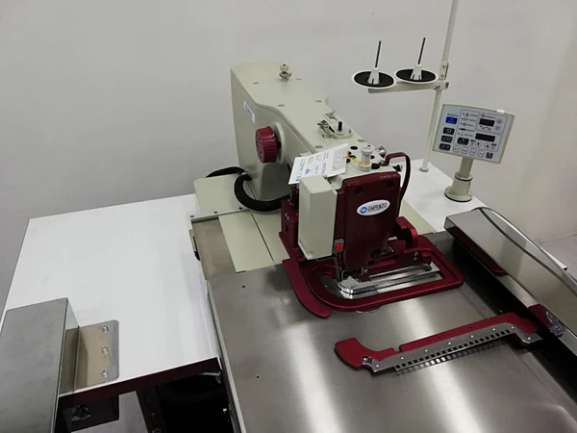

EPZ-6000 - Automatic Pocket Setter Machine For Denim

Easy-to-operate touch panel

Brother Nexio Head

Multiple testing functions such as input and output tests which is convenient for customers to
find problems

AC servo motor 750W (direct drive)

Thread breakage sensor

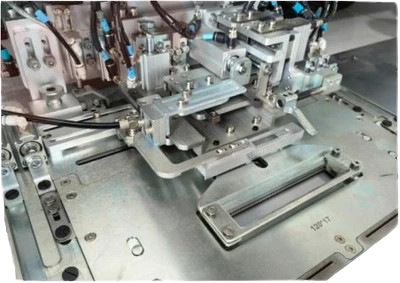

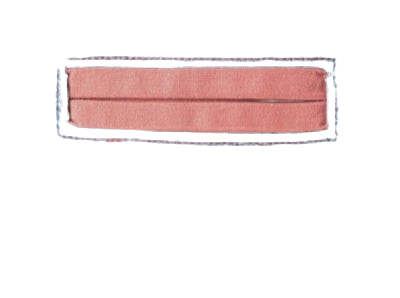

Automatic Laser Pocket Welting Machine
SKU: EPZ-995-CN

1. Heading sewing speed - 3000 RPM

2. Equipped wit head pattern machine 3020(optional Juki , Brother)

3.Laser power -1000w

4.Feeding drive mode- Taiwan DELTA servo motor drive(750W)

5.Size of pocket lenght 100mm-210mm,width 10mm-40mm

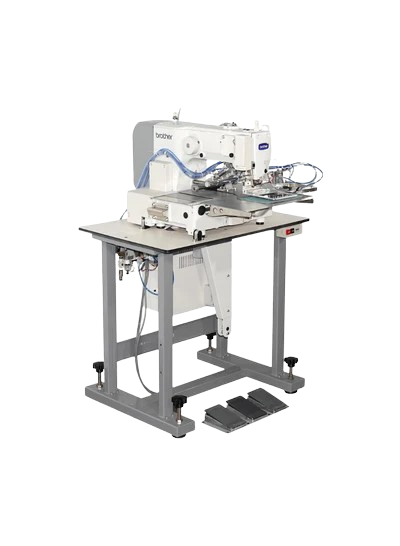

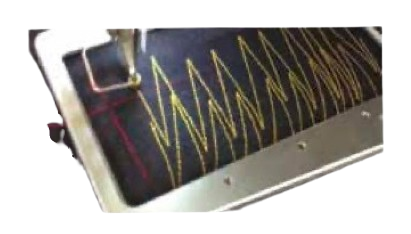

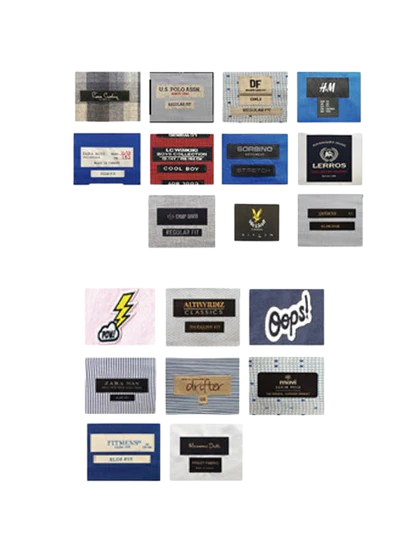

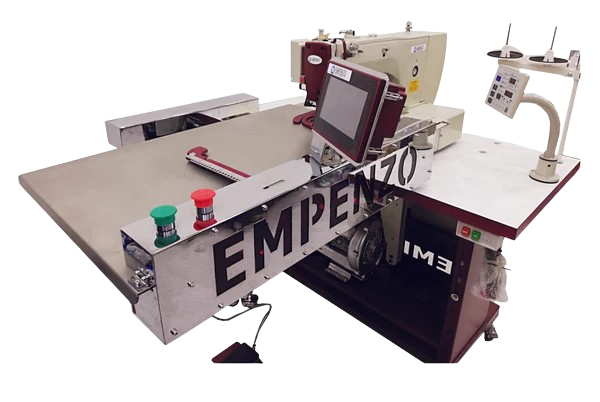

Label Attaching Machine For Multiple Labels EPZ-760 LAM-CN ( Made in China )SKU: EPZ-760 LAM-CN

Sewing Head: Brother BAS 311-05-XT.

Needles: DP x 17 (#18 - #22).

Max Sewing Speed: 2800Rpm By 3,5mm stitch-length.

Stitch length: 0.05 - 12.7mm

Stitching field: 250mm x 115mm

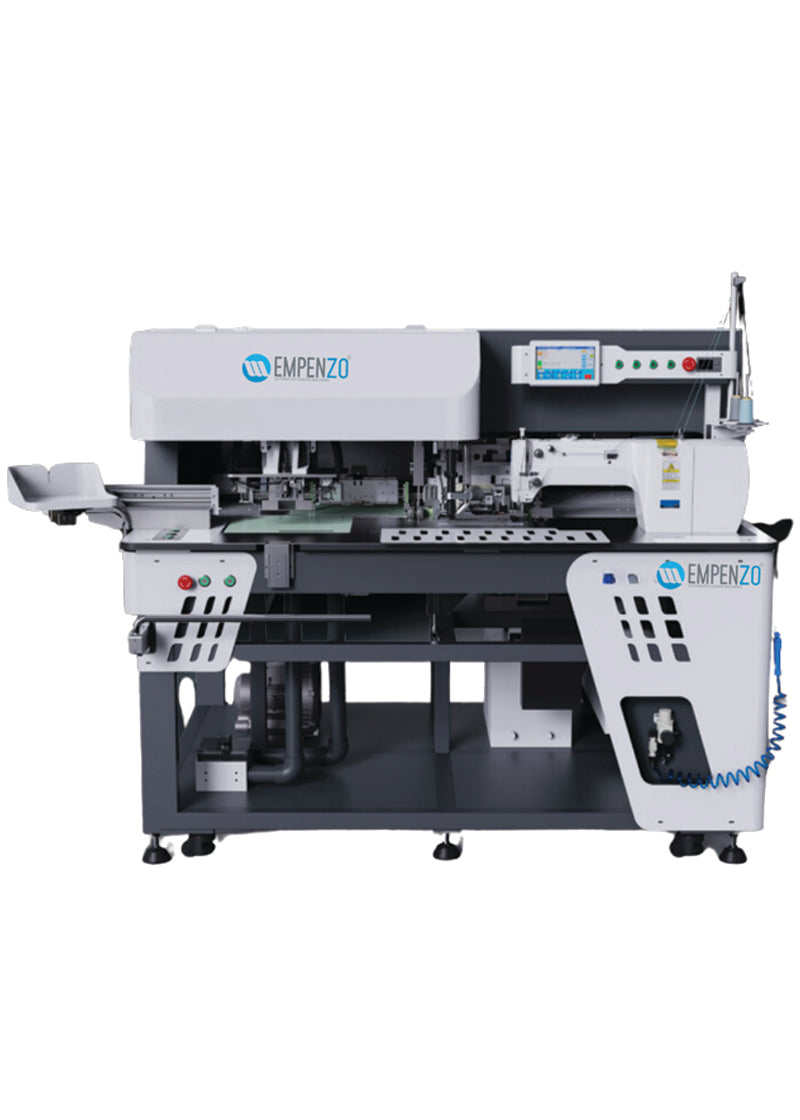

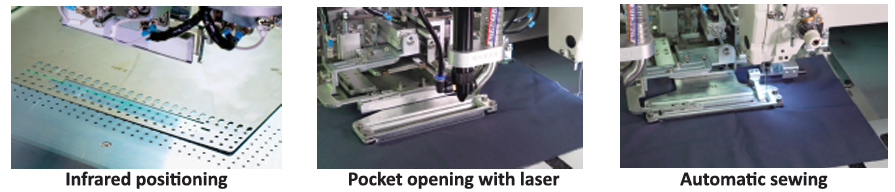

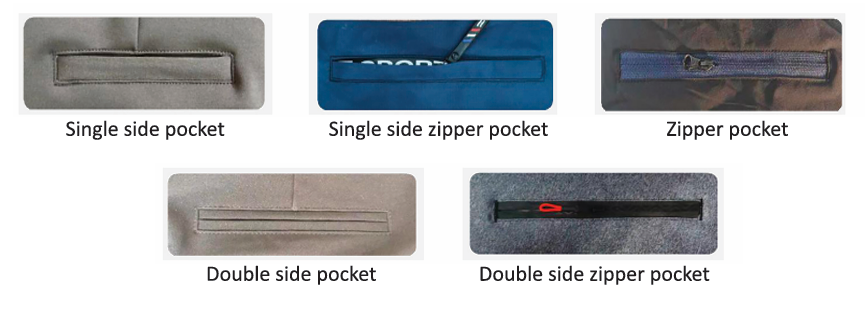

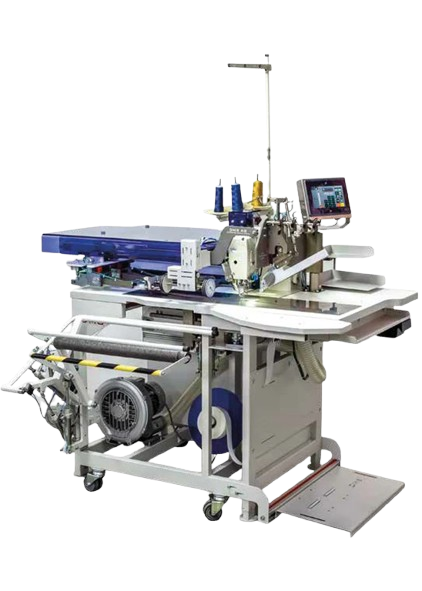

Automatic Pocket Welting Machine with Laser

Automatic Pocket Welting Machine with Laser
SKU: EPZ-2210N-PW CN

Daily Capacity 150-180 pcs Per hours.

Head sewing speed-1800-2800 rpm

Stitch distance-1.0mm-3.5mm

Presser foot rising height-60mm-80mm

Pocket opening mode-80-100Wlaser cutting mode

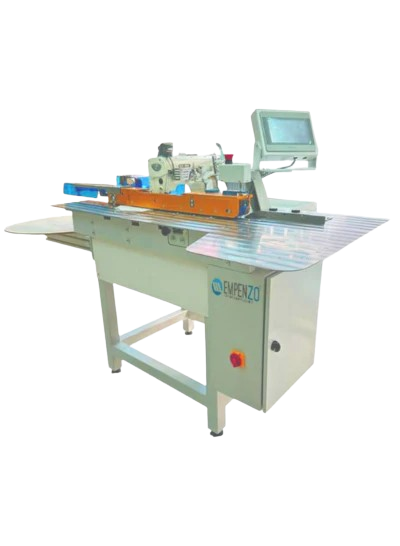

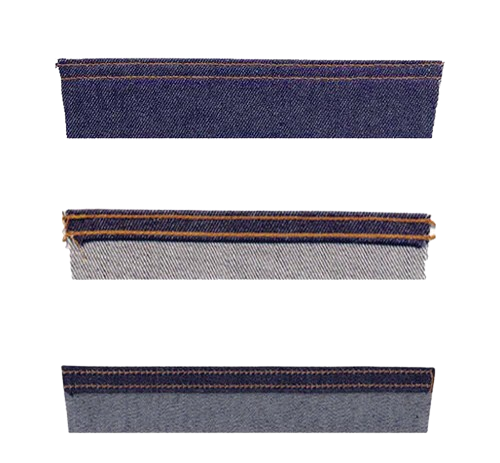

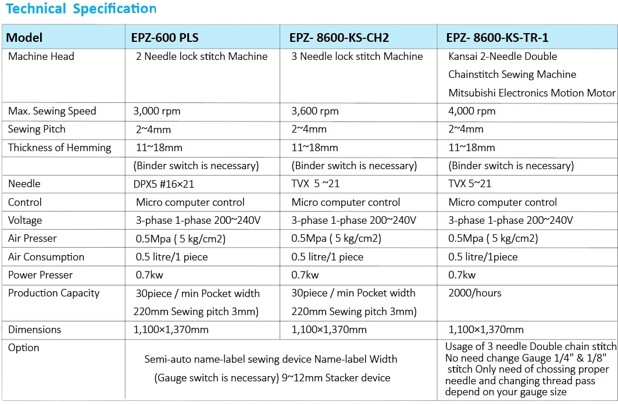

Automatic Pocket Hemmer Kansai Head 3 Needle-Chain Stich ( Made in Turkey )
SKU: EPZ- 8600-KS-CH2

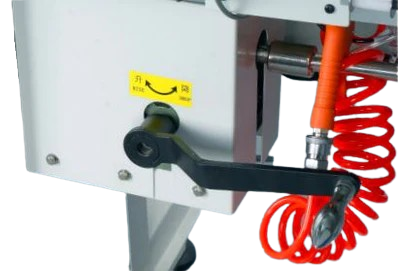

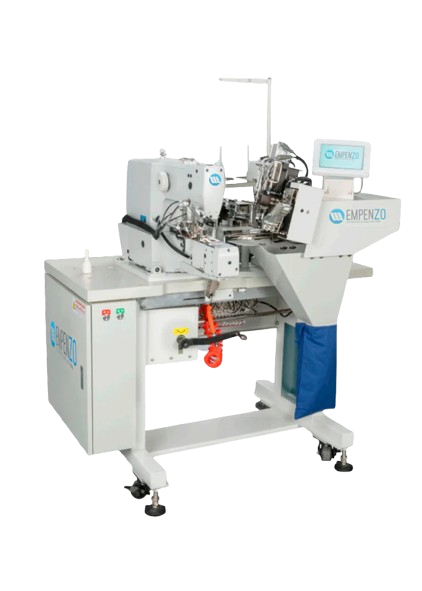

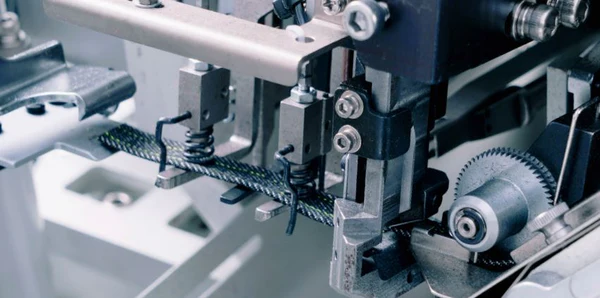

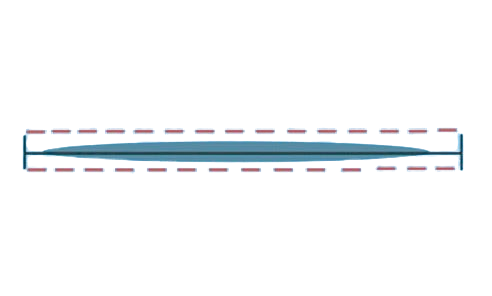

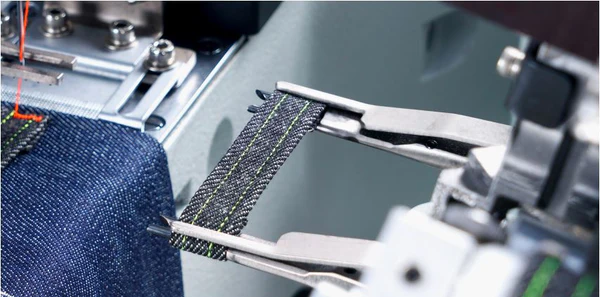

Automatic 2-Needle Belt-Loop Attaching Machine
EmpenzoSKU: EPZ-254GT-H/S CN

Description

Daily Capacity 1000-1200 pcs Per Hours

Technical parameter

Specification -NS-254GT-H
Trace - Chain type
Sewing process - Automatic 2-needle Belt-Loop Attaching Machine
Maximum sewing speed -2800rmp( 3.4mm ）(Sewing spacing less than 3.4mm)
Machine needle- DPx17#19#~21#.
Number of stitches -28，36，42(Select from the Operation panel).
Needle pitch- 45~75mm ( 1-11/16”~ 2-3/4”).
Press foot rise -21mm.
Reinforce the width of the joint -1.0~3.5mm.
Reinforce the seam loop width -9~20.mm.
Reinforce the seam loop length -40~70mm.
