Home » AGM Special Kansai Head Semi-Auto Waistband Machine ( HEAD WFB5509P )
Kansai Special Head Semi Auto Waistband Machine Skip Stich Functional - Empenzo Automated Sewing Systems
Kansai Special Head Semi Auto Waistband Machine Skip Stich Functional - Empenzo Automated Sewing Systems

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AGM Special

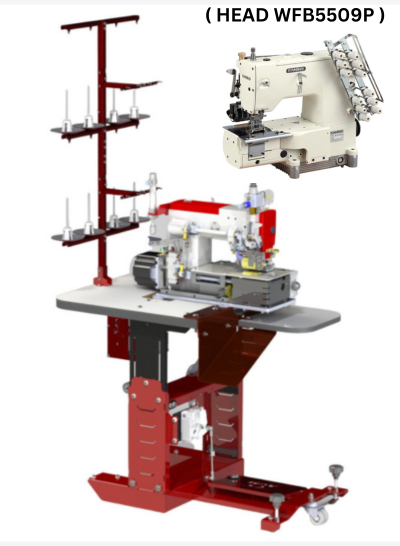

AGM Special Kansai Head Semi-Auto Waistband Machine ( HEAD WFB5509P )

SKU: KM- 902-T1
(0)
$6,000.00
-14% $7,000.00 $6,000.00
In stock
On backorder

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

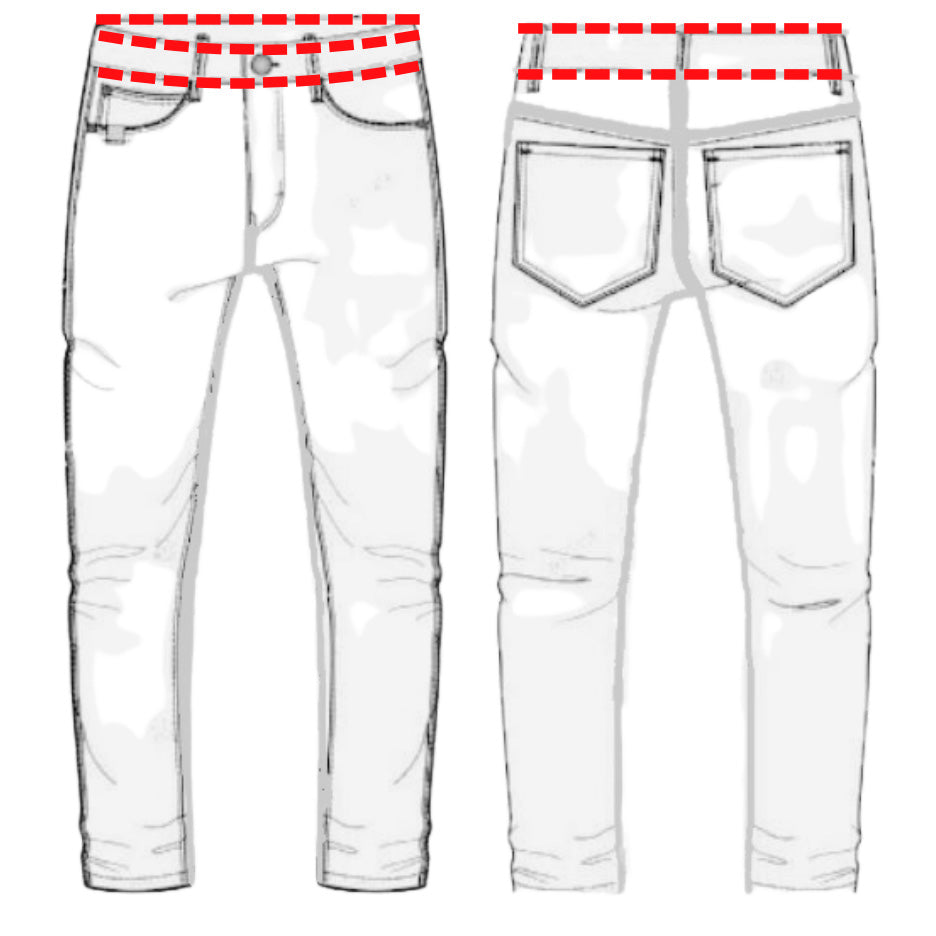

AGM Special Kansai Head Semi-Auto Waistband Machine ( HEAD WFB5509P ) model machine is usable for in particularly pattern and sample sewing lines. Also suitable for standart jeans sewing lines.

SPECIAL DESIGN 6 NEEDLE CHAIN STITCH MACHINE HEAD (PATENTED)
The machine head specially designed for AGM Special with 1/8 needle distance.

DIRECT DRIVE SERVO ELECTRONIC MOTOR
Energy saver electronic servo motor.

AUTOMATIC FOOT LIFTER
Easy foot lifting by using pedal.

UPPER AND LOWER RUBBER ROLLER
Upper and lower rubber roller for both curved and flat form waistbands

TECNICAL FEATURES

  • Needle feed 6 needle chain stitch sewing machine head specially designed for AGM Special.(PATENTED)
  • Special design guided presser foot.
  • Upper and lover rubber roller for curved and flat form waistbands.
  • Automatic double tension mechanism that prevents sharp chain sticth effects.
  • Oil tank drain machanism for an easy oil change.
  • Energy saver direct drive electronic servo motor.
  • Adjustable L type table and stand.
  • Automatic foot lifter.



OPTIONS

GUAGE SET OPTIONS

Standard Gauge Set : 1/8-1/8-1-1/8-1/8
Optional Gauge Set :
Needle Distance : Minimum 1/8 ” , Maksimum 1/4 “
Needle No : Minimum 1 , Maksimum 6
Gauge Set Size : Minimum 1 ” , Maksimum 1 3/4 “

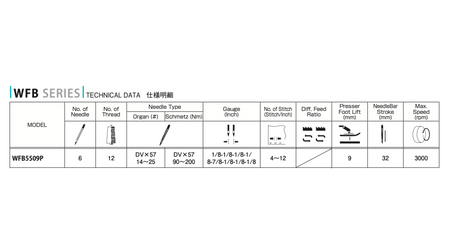

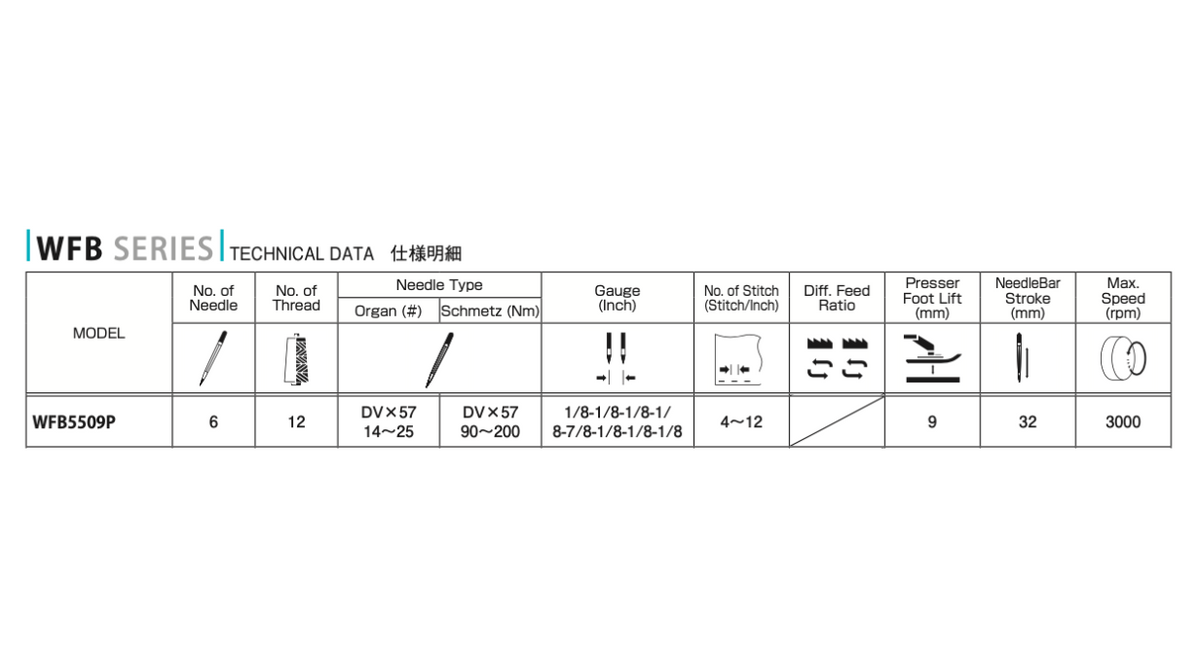

TECHNICAL SPECIFICATIONS

Machine Head : Needle feed 6 needle chain stitch.
Motor : Direct drive servo electronic motor.
Table and Stand : Adjustable L type.
Foot Lifter Device : Automatic.
Extra Pulling Device : Additional pulling roller device behind the blade.
Needle Cooling Device : Extra strong needle cooling.
Presser Foot : Special designed guided pressure foot by AGM Special
Roller Device : Upper and lover rubber roller device for both curved and standard flat form waistbands.
Puller Adjustment : Easy to change puller adjustment system.
Roller Air Pressure System : Extra air pressure system on roller.
Tension Mechanism Automatic double tension mechanism that prevents sharp chain sticth effects.
Maximum Speed : 3200 rpm.
Daily Capacity : 1300-1600 pcs/8 hours.
Net Weight : 98 kg.
Gross Weight : 125 kg.
Dimensions 60x100x130 cm.
Air Pressure : 6 bar.
Voltage : 220-240v 60Hz
Power : 2400-2800w
