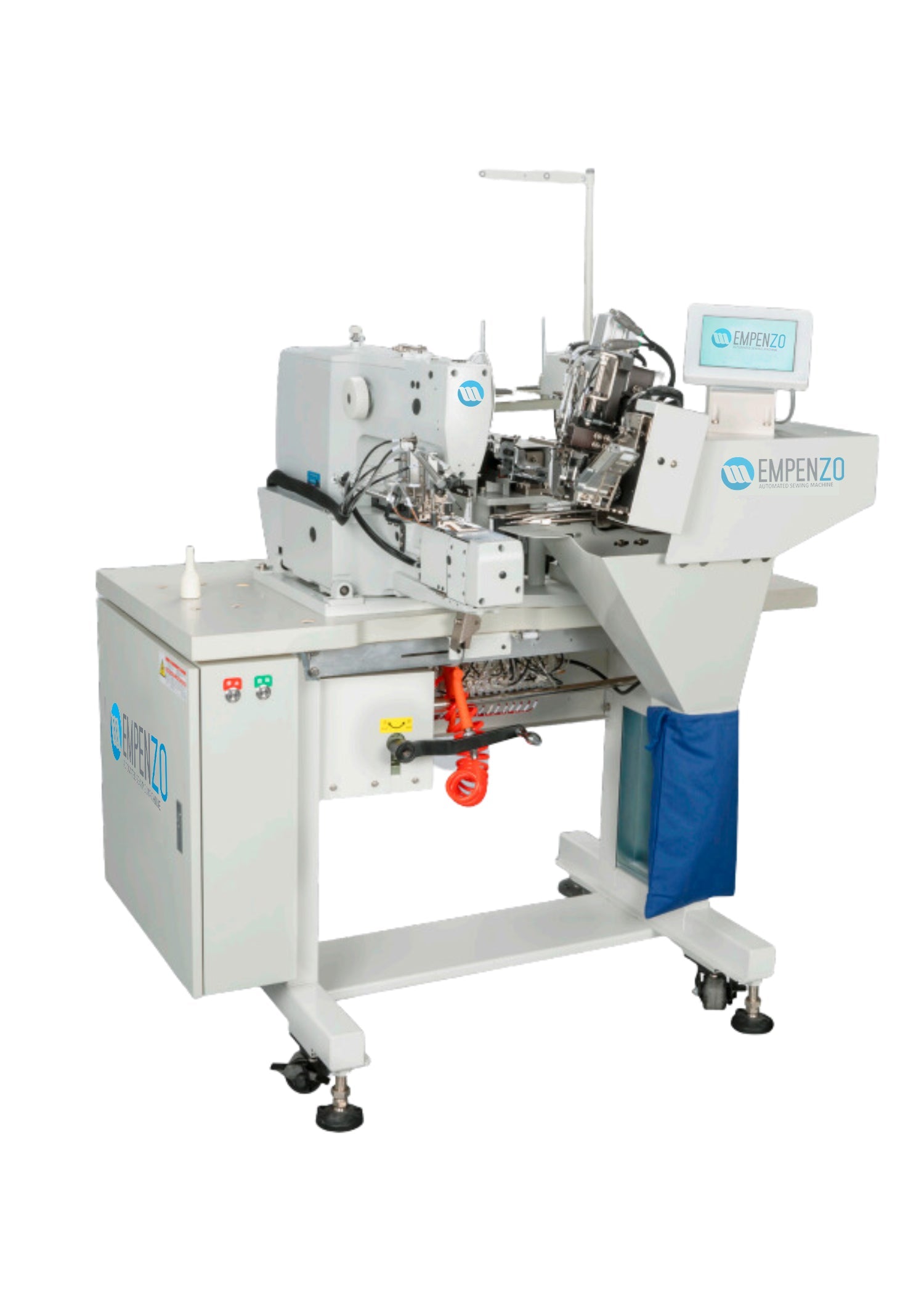

Automatic 2-Needle Belt-Loop Attaching Machine

Model: EPZ-254GT-H/S CN

Manufacturer: Empenzo

Price & Availability Upon Request

Submit your request using the form below and our team will quickly confirm pricing, availability, and shipping options.

Click or drop your image to upload, if any (Max 20MB)
  • Product Details

  • 24/7 Support

  • Return & Refund Policy

Daily Capacity 1000-1200 pcs Per Hours

Technical parameter
Specification -NS-254GT-H
Trace - Chain type
Sewing process - Automatic 2-needle Belt-Loop Attaching Machine
Maximum sewing speed -2800rmp( 3.4mm )(Sewing spacing less than 3.4mm)
Machine needle- DPx17#19#~21#
Number of stitches -28,36,42(Select from the Operation panel)
Needle pitch- 45~75mm ( 1-11/16”~ 2-3/4”)
Press foot rise -21mm
Reinforce the width of the joint -1.0~3.5mm
Reinforce the seam loop width -9~20.mm
Reinforce the seam loop length -40~70mm
Cloth delivery mode - Continuous cloth feed (pulse motor drive mode)
Reinforcement seam pattern memory - Standard capacity 9 patterns
Stitch adjustment mode - Operation disk input mode
Voltage -AC220V,50/60Hz
Air pressure- 0.5MPa 1.8L /min
Net weight -230kg
Package size -1200×800×1350 mm(L×W×H)
