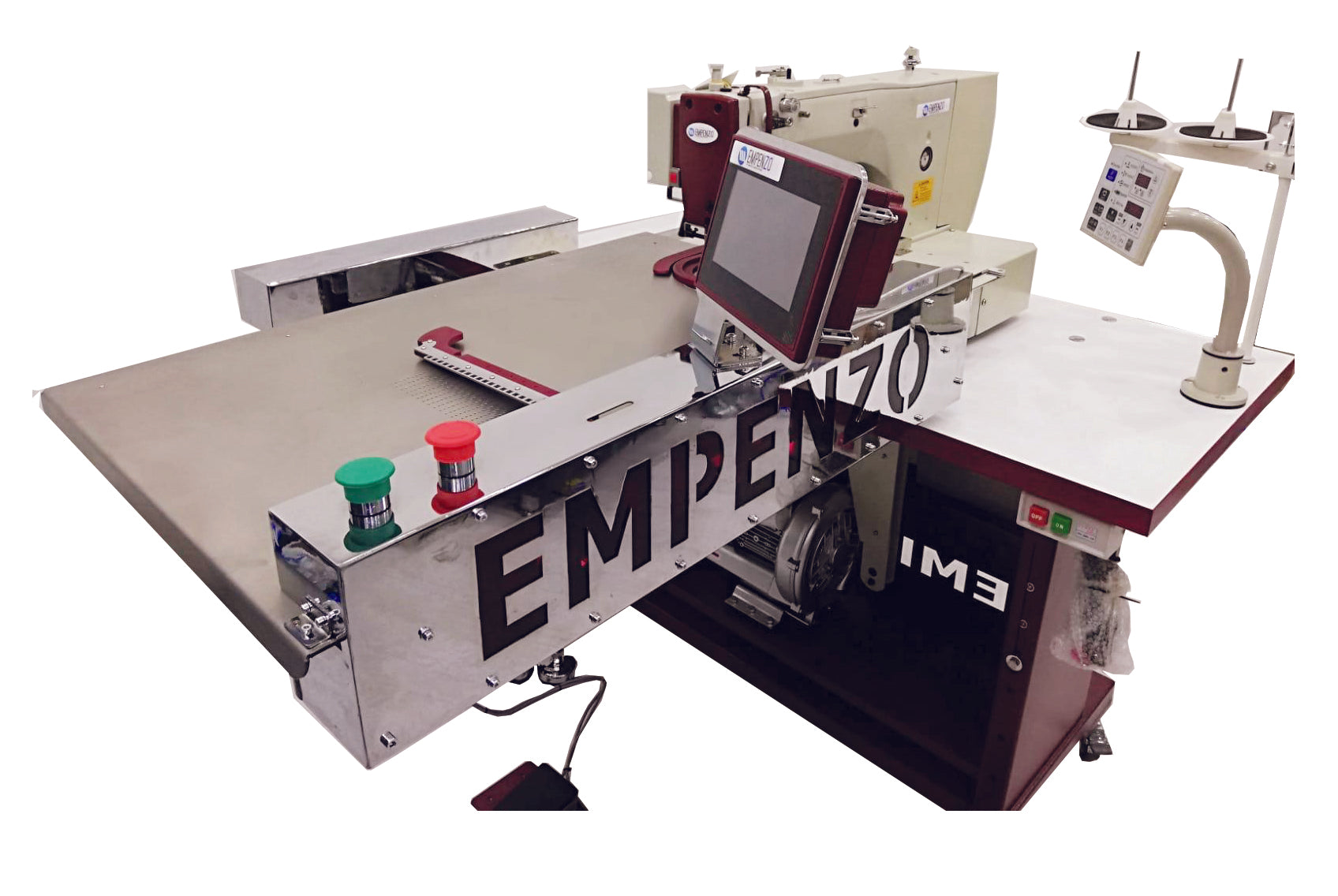

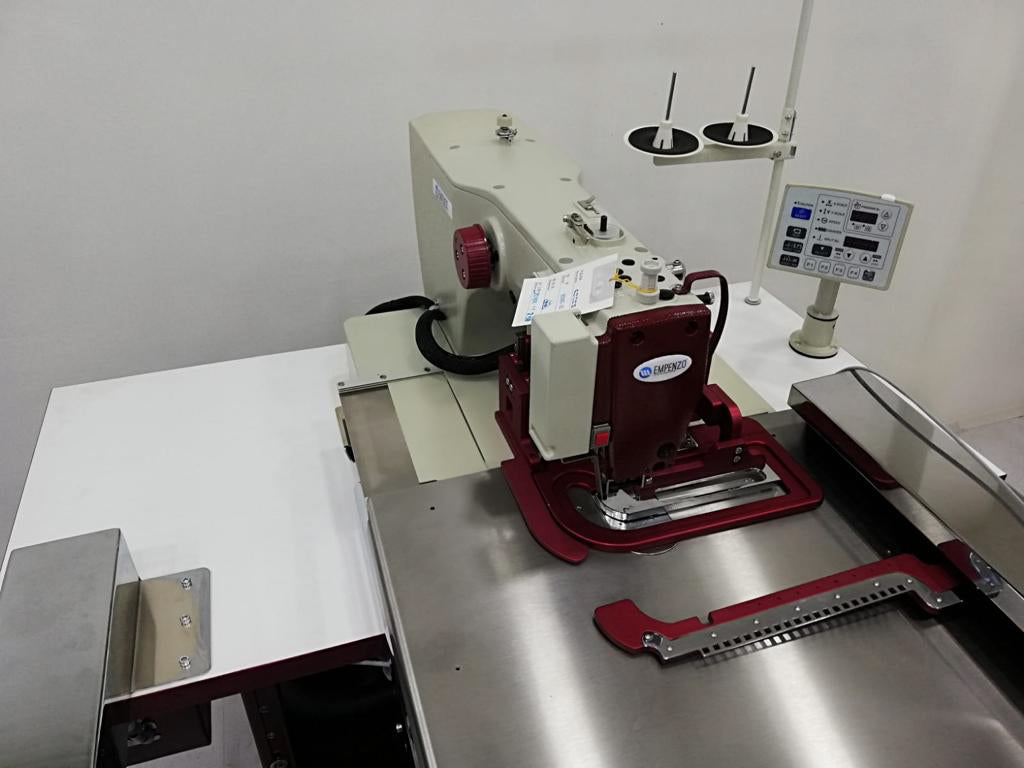

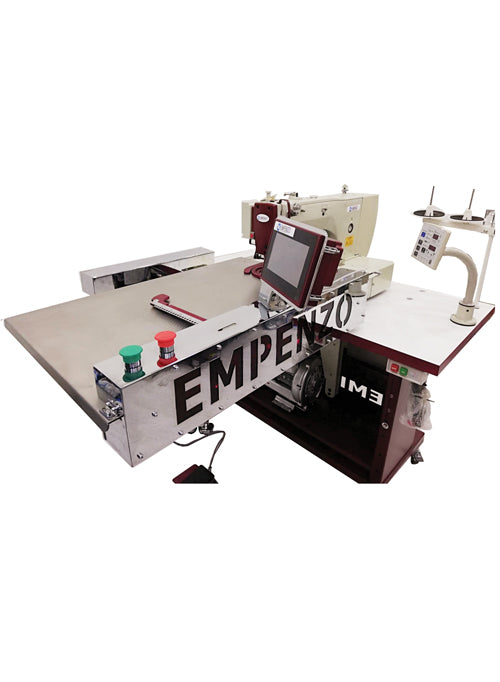

Automatic J-Stitch Machine

Production Capacity Approx. -400-420 pcs Per Hour
•Equipped with a servo motor control system for applying 'J' stitching to zippers or daily pants.

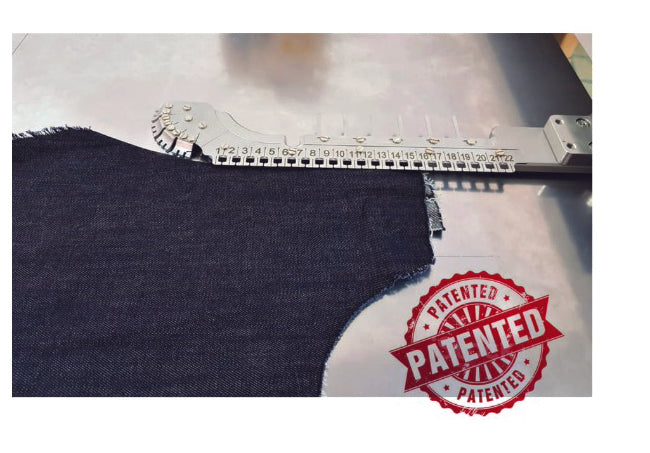

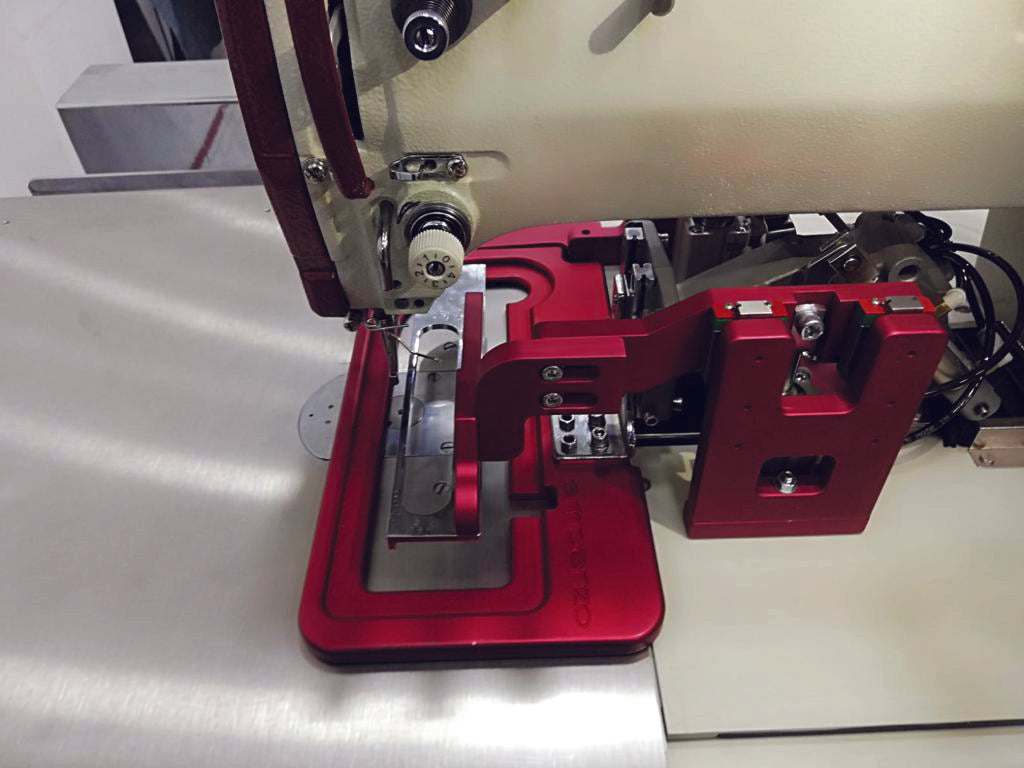

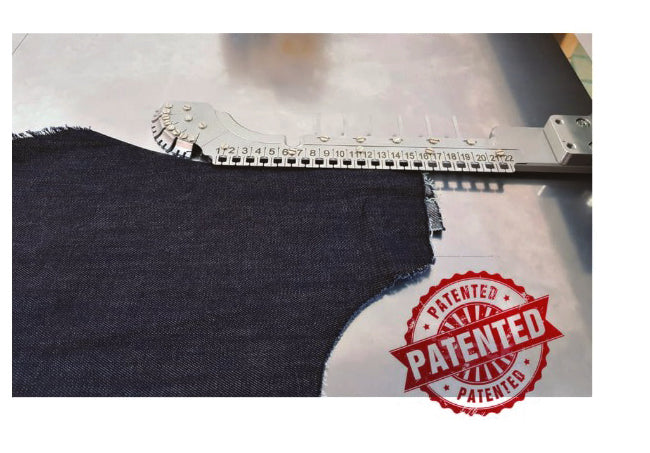

• The Fabric Transport Mold of Empenzo J Stitching Machine with Servo Control System consists of three main points: 1. Support point 2. Loading Point 3. Stitching Point.
• Its precise touchscreen, visually supported usage, and operator settings with speech capability have been simplified.
• The zippered model and buttoned patlet models provide excellent stitching results with a new mold design.
• Empenzo J Stitching Machine's patlet ensures perfect assembly with J stitching on the front panel with a new mold design.
The electronic tension system linked to the program of Empenzo J Stitching Machine has elevated the stitching quality to superior levels, surpassing its counterparts.
• The special tension system allows adjusting the stitching quality for both thick and thin fabrics on the same line.
• It can achieve perfect daily production with non-expert operators.
• The programming unit with a maximum working area of 22x10 cm enables creating the desired stitching pattern and does not leave you alone even in complicated stitches. Optional.
• The advantage of having a programming unit and performing this process from a computer is to reduce the copying of special pant models or brands.
• High flexibility of use and an electronic tension system make the machine versatile and unique in its kind.
• Empenzo J Stitching Machine, with a powerful vacuum motor, perfectly stabilizes the fabric and assists in moving the product to the stitching point without shifting.
• Empenzo J Stitching Machine, with an average production of 7 operations per minute, varies the production quantity according to the stitched model.
• When the machine is first opened, the air system is cut off to take the load off the system, and the machine automatically opens the air system to become ready to operate.
• Manufactured from the 326 G 22X10 PROCESSING machine.
• Empenzo J Stitching Machine has a double-sided stacking system.
The operator panel allows selecting the working mode for female or male models
• Female or male stitching patterns can be mechanically changed in a short time.
The special tension system allows adjusting the stitching quality for both thick and thin fabrics on the same line.
It can achieve perfect daily production with non-expert operators.

Sewing Head EMPENZO Machine Head
Sewing Area 220 x 110 mm(WxH)
Needle Distance 0.05-12.7 mm
Motor 550w Direct Drive System
Sewing Speed 2700 rpm (Maximum)

Production Capacity-3500pcs/8 hours
 Data Storage USB Application Way Various Thick and Thin Cloths
Air Pressure 6 Bar
Voltage 220 V 50/60Hz
Machine SIze 1550 x 1150 x 1420 mm(LxWxH)
Weight 240 Kg
Adjust Time About 5 Munites
