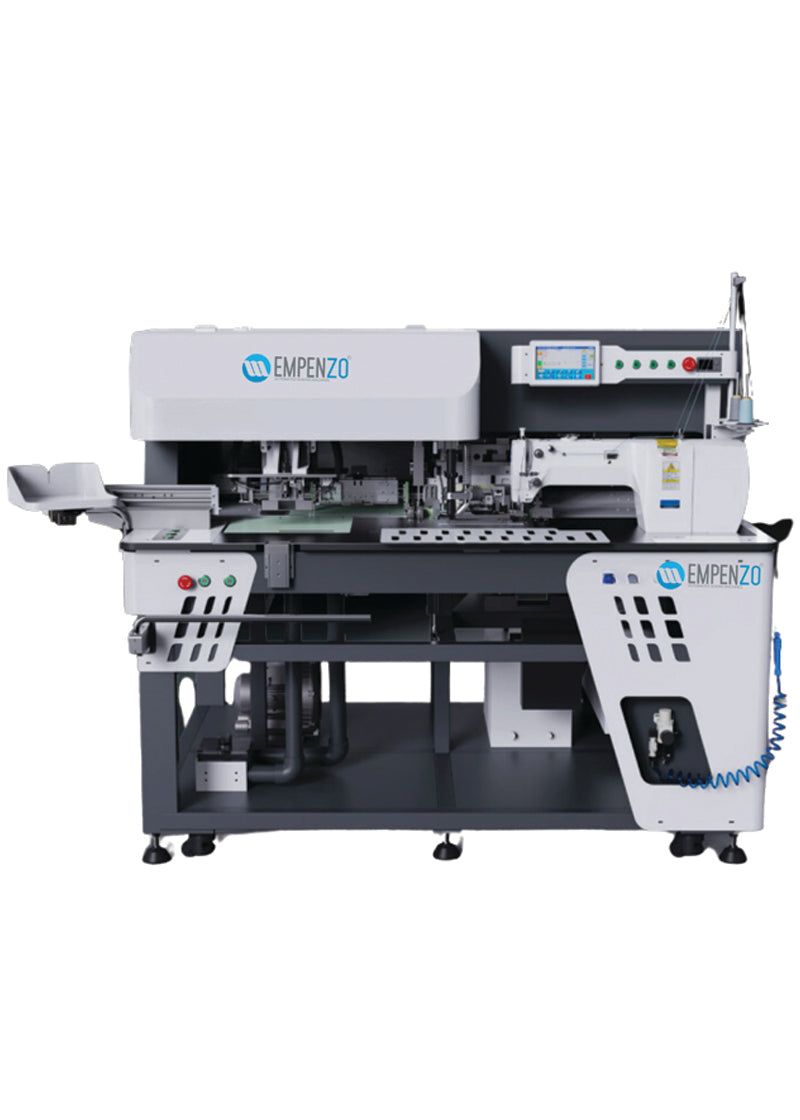

Automatic Pocket Welting Machine with Laser

Model: EPZ-2210N-PW CN

Manufacturer: Empenzo

Price & Availability Upon Request

Submit your request using the form below and our team will quickly confirm pricing, availability, and shipping options.

Click or drop your image to upload, if any (Max 20MB)
  • Product Details

  • 24/7 Support

  • Return & Refund Policy

Automatic Pocket Welting Machine with Laser

Daily Capacity 150-180 pcs Per  hours


Product Features

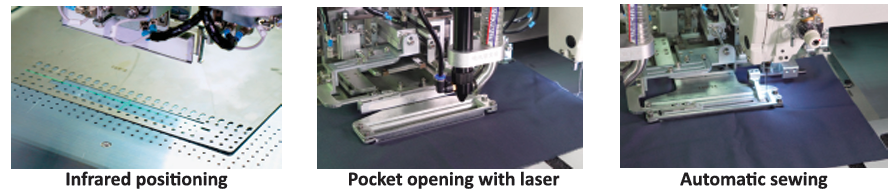

•Pocket opening with laser, automatic folding, automatic feeding, automatic sewing   process one-time com- -pletion, high-quality and efficient.
• 80-100w laser power adjustable, suitable for different fabrics.
• Infrared positioning function, accurate positioning, simple operation.
• The intelligent induction, automatic stopping function.

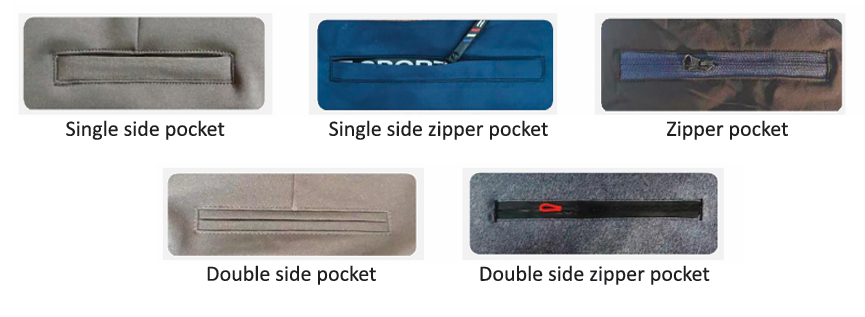

• Scope of application: It is suitable for opening and sewing of all kinds of pockets such as single side pocket double side pocket, zipper pocket, single side zipper pocket, double side zipper pocket etc.

Specification Parameter

Model-EPZ-2210N-PW CN
Machine head-2210 Pattern Sewing Machine head
Needle-DPX17(12#14#)
Head sewing speed-1800-2800 rpm
Stitch programming storage capacity-Operation screen input mode
Trace programming storage capacity-Can store up to 999 inds of pattens
Stitch distance-1.0mm-3.5mm
Presser foot rising height-60mm-80mm
Sewing pocket range-X:100mm-220mm:Y:10mm-35mm
Cloth positioning-Infrared spotlights
Sewing pocket speed-30-40seconds/piece(depending on the speed of the worker)
Folding pocket mode-Fold the pocket simultaneously in all four directions
Pocket opening mode-80-100Wlaser cutting mode
Sewing working mode-Pocket opening/folding/sewing/cutting/bartacking
Cloth feeding drive method-Servo motor driven(750W)
Power supply-AC 220V
Air pressure/air pressure consumption-0.6Mpa(6kg/cm);22dm/min
Weight-600 Kg
Thread broken induction-With intelligent wire break induction
Packing size-192*142*155 cm
