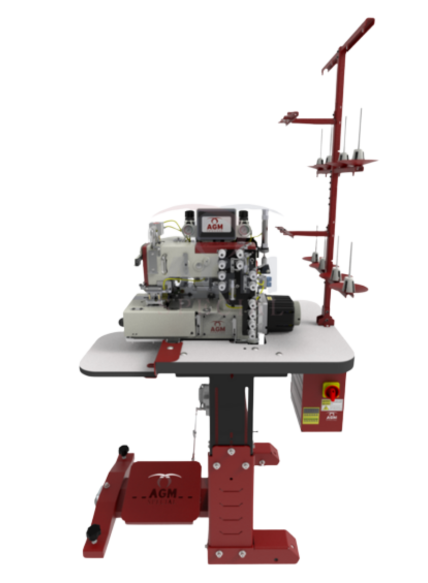

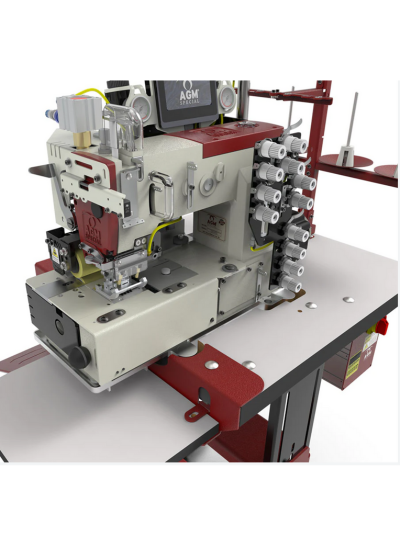

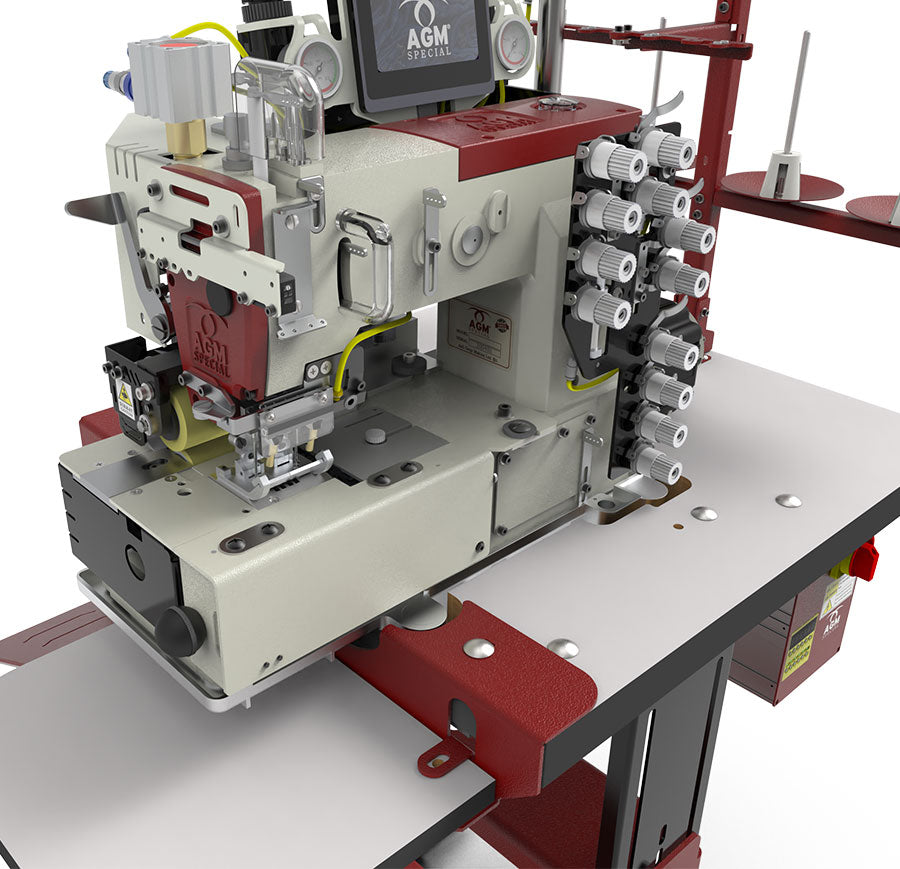

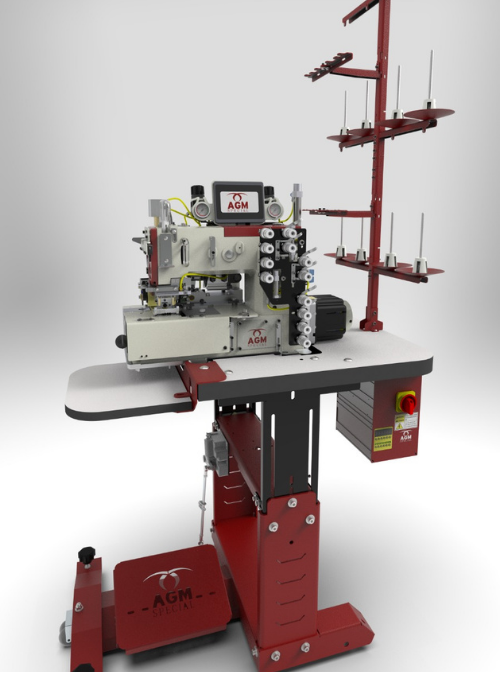

AGM Special Straight and Curved Waistband Automat Machine

Model: KM 921 AR-T3

Manufacturer: AGM Special

Price & Availability Upon Request

Submit your request using the form below and our team will quickly confirm pricing, availability, and shipping options.

Click or drop your image to upload, if any (Max 20MB)
  • Product Details

  • 24/7 Support

  • Return & Refund Policy


KM 921 AR-T3

Production Capacity Approx.~200-250 pcs Per Hour

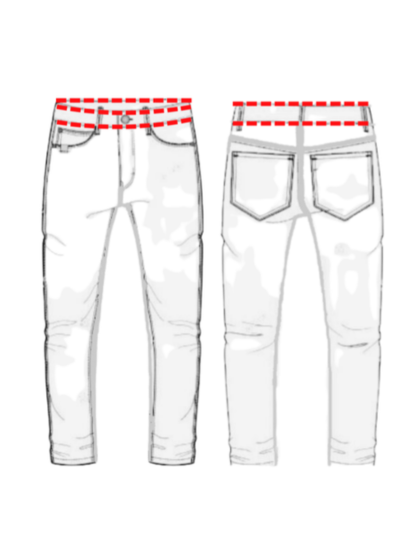

Waistband Attaching/Sewing Automat For Jeans



The waistband attaching sewing automat KM 921 AR-T3 chain stitch is a flexible unit a high level of effiency and quality output.The daily capacity of the machines is 1700-2500 pcs/8 hours. The innovative transport system allows the machine to perform on all type of fabric thickness from stretch denim fabric to cotton denim fabric.

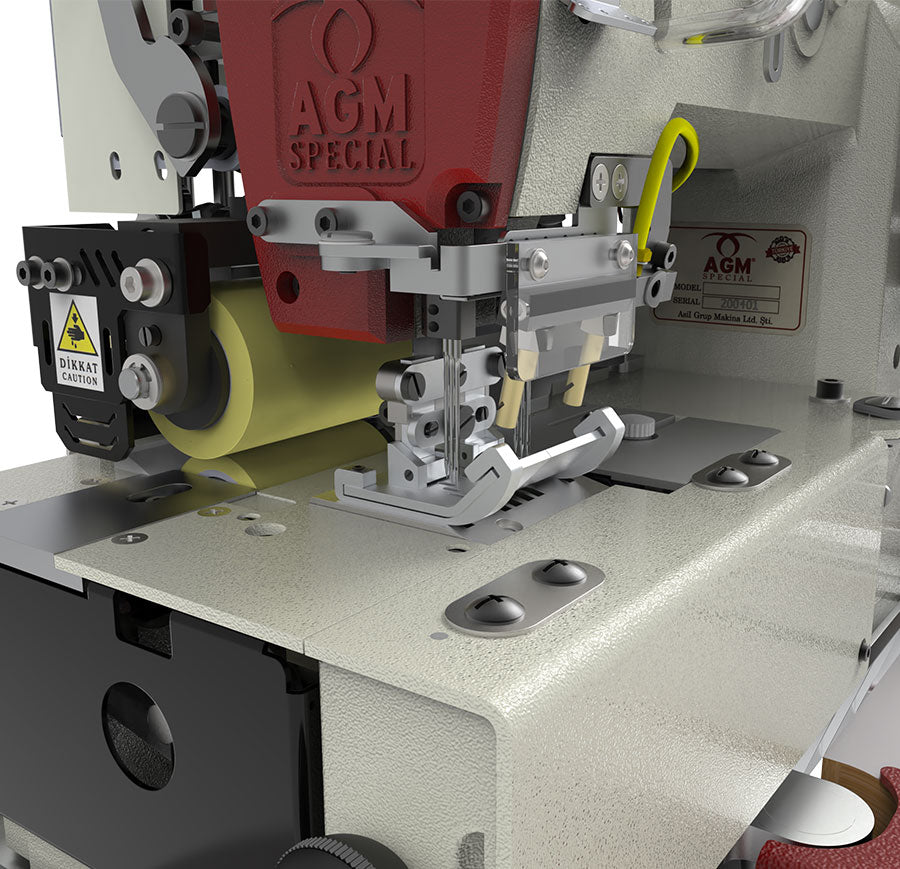

THE STAND-ALONE NEEDLE SUPPORT SYSTEM
The stand-alone needle support system does not require additional needle support adjustment when the stitch length is changed.(PATENTED)



ADJUSTABLE CUTTING DEVICE
Automatic cutting programm can be adjustable easily on panel

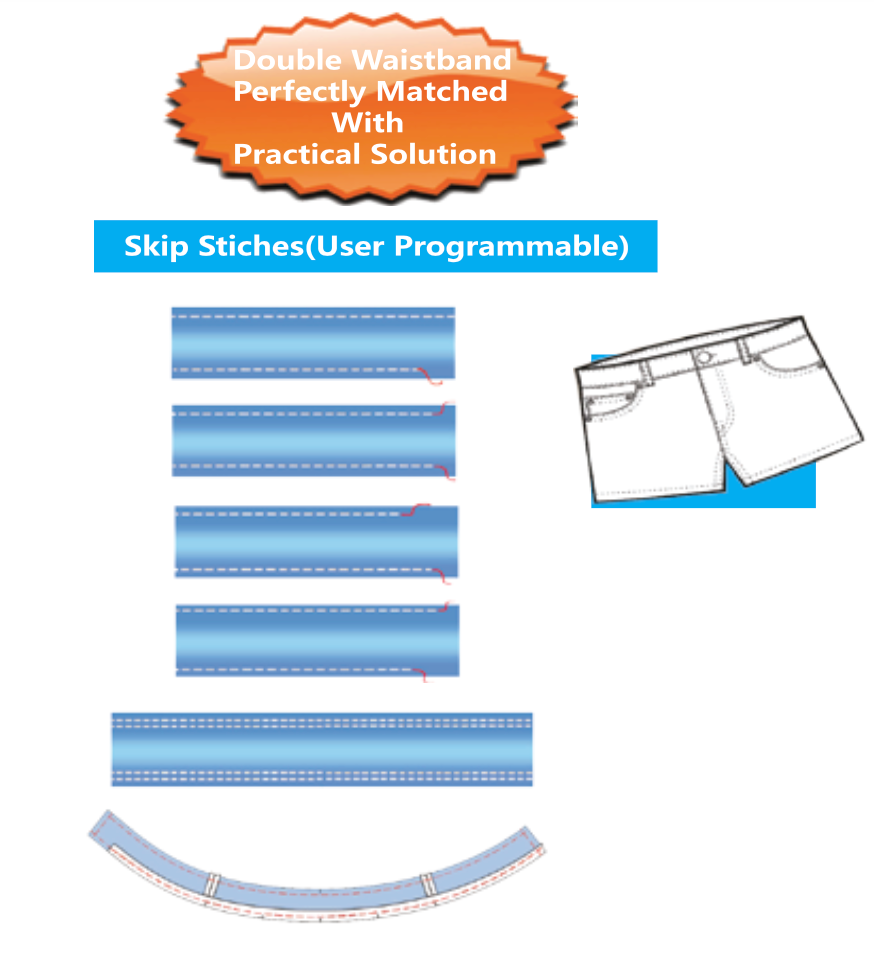

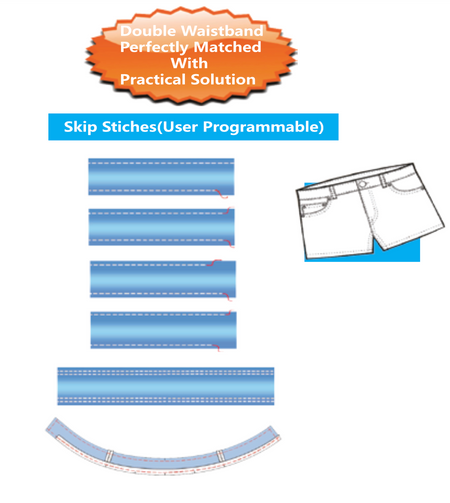

PROGRAMMABLE SKIP STITCH OPTIONS

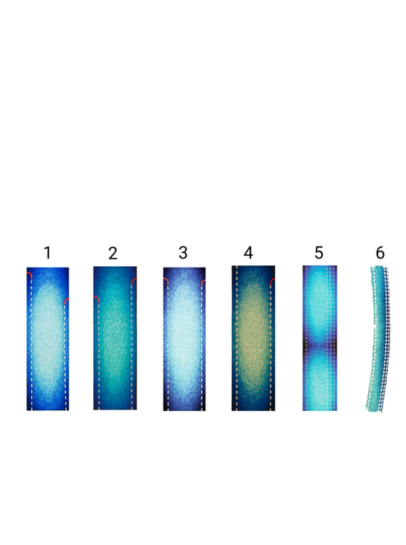

The skip stitch can be adjusted seperately(left-right) according to waistband design

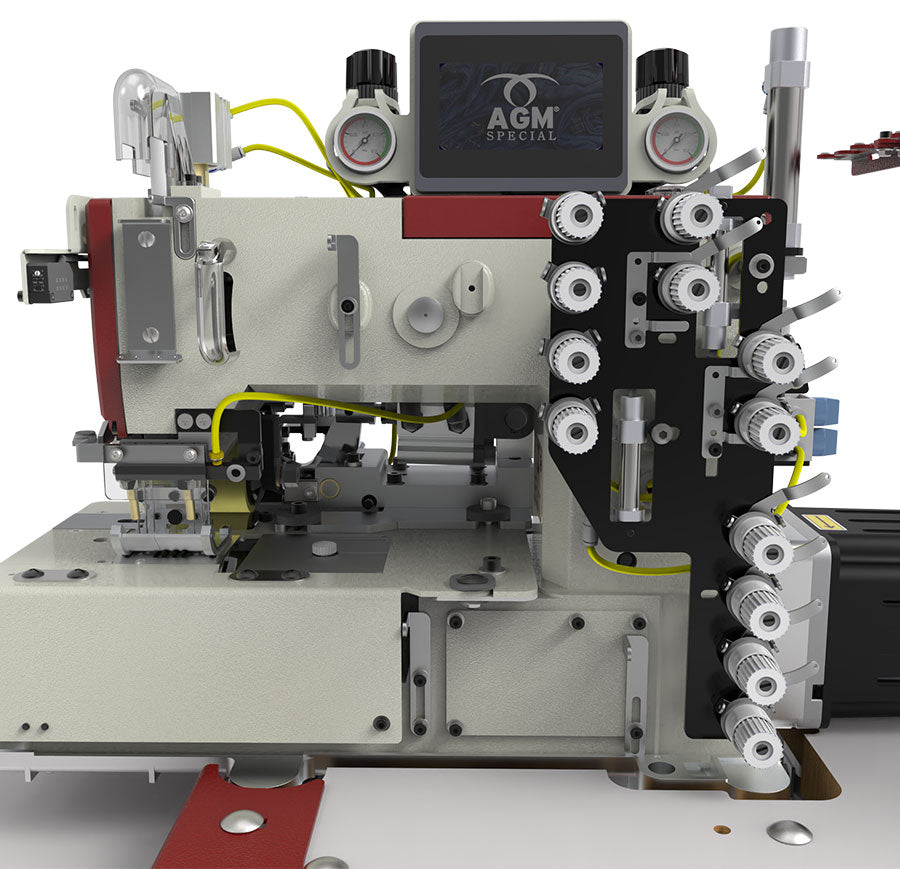

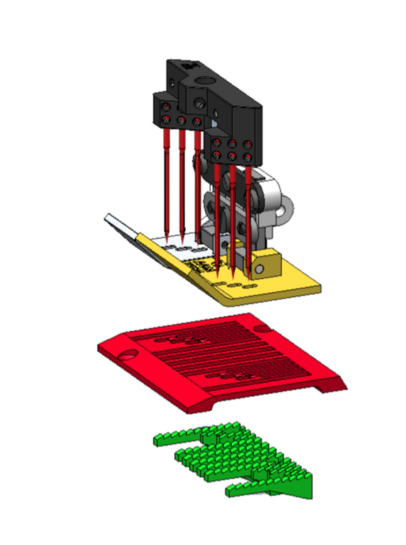

SPECIAL DESIGN 6 NEEDLE CHAIN STITCH MACHINE HEAD (PATENTED)

The machine head specially designed for AGM Special with 1/8 needle distance.














TECNICAL FEATURES

  • The stand-alone needle support system does not require additional needle support adjustment when the stitch lenght is changed.(PATENTED)
  • Needle feed 6 needle chain stitch sewing machine head specially designed for AGM Special.(PATENTED)
  • Software fully developed by AGM Special.
  • Left and right independently adjustable skip stitch feature.

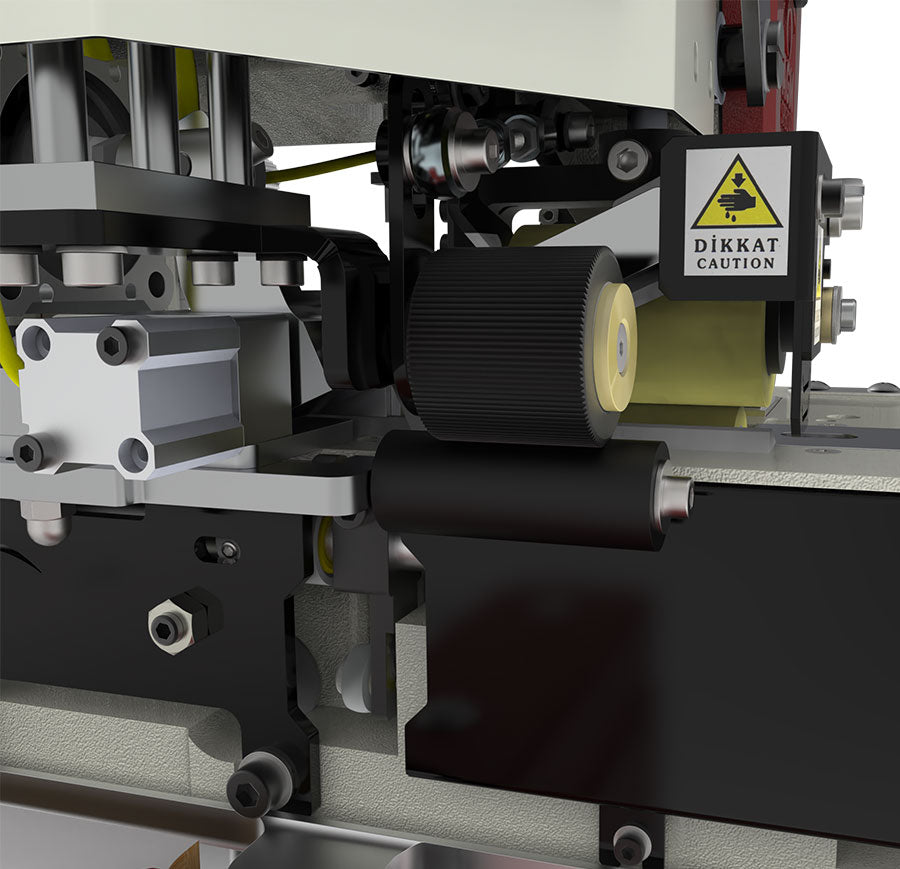

  • Additional pulling roller device behind the blade.
  • Automatic cut-off device on enter and exit.
  • Special design guided presser foot.
  • Upper and lover rubber roller for curved and flat form waistbands.
  • Automatic double tension mechanism that prevents sharp chain sticth effects.

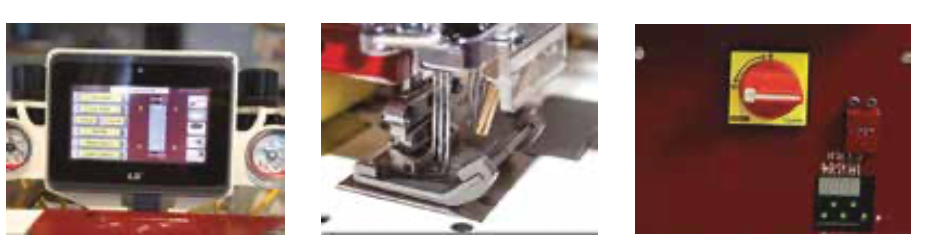

  • Easy to use touch screen with english, turkish and spanish languages option.
  • Oil tank drain machanism for an easy oil change.














GAUSET OPTIONS.

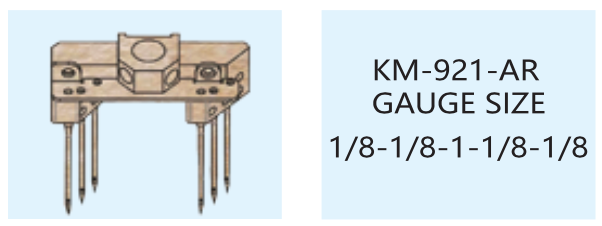

Standard Gauge Set : 1/8-1/8-1-1/8-1/8

Optional Gauge Set :

Needle Distance : Minimum 1/8 ” , Maksimum 1/4 “

Needle No : Minimum 1 , Maksimum 6

Gauge Set Size : Minimum 1 ” , Maksimum 1 3/4 “













TECHNICAL SPECIFICATIONS

Machine Head : Needle feed 6 needle chain stitch.
Motor : Direct drive servo electronic motor.
Table and Stand : Adjustable L type.
Skip Stitch System : Independently adjustable left and right stitch skipping feature.
Cutting Device : Automatic cut-off device on enter and exit.
Foot Lifter Device : Automatic.
Extra Pulling Device : Additional pulling roller device behind the blade.
Needle Cooling Device : Extra strong needle cooling.
Presser Foot : Special designed guided pressure foot by AGM Special
Roller Device : Upper and lover rubber roller device for both curved and standard flat form waistbands.
Puller Adjustment : Easy to change puller adjustment system.
Oil Tank Drain Mechanism : Oil tank drain machanism for an easy oil change.
Roller Air Pressure System : Extra air pressure system on roller.
Tension Mechanism Automatic double tension mechanism that prevents sharp chain sticth effects.
Touch Screen Easy to use touch screen with english , turkish and spanish languages option.
Blade Cutting Range 55 mm.
Maximum Speed : 3200 rpm.
Daily Capacity : 1700-2500 pcs/8 hours.
Net Weight : 98 kg.
Gross Weight : 125 kg.
Dimensions 60x100x130 cm.
Air Pressure : 6 bar.
Voltage : 220-240v 60Hz
Power : 2400-2800w
