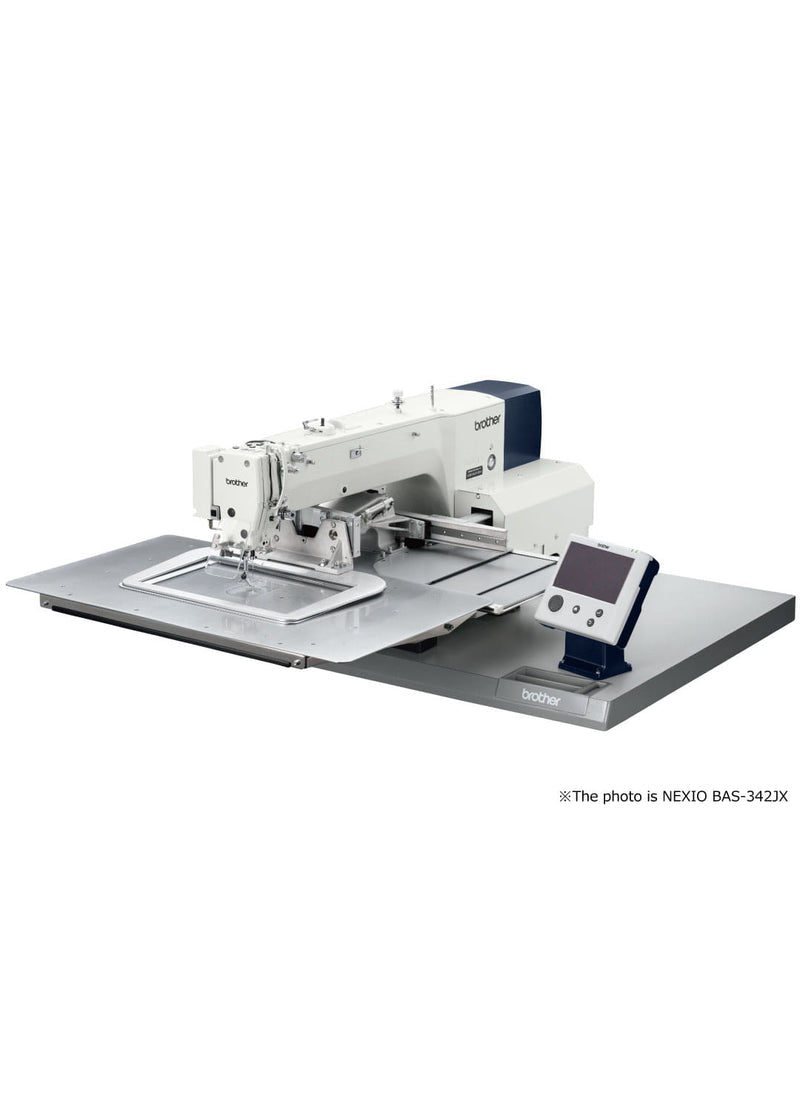

Brother NEXIO BAS-341JX — Direct Drive Programmable Electronic Pattern Sewer (Sewing area: 250×160mm).
Key Features
- World-Class Sewing Speed of Up to 2,800 Stitches Per Minute with Exceptional Stitch Quality
- "Skipped Stitch" and "Thread breakage" detection functions prevent the outflow of defective sewing products.
- "Fabric thickness detection" prevents sewing errors in advance.
- "Bird's nest reduction mechanism" supports beautiful seams.
Specifications
| BAS-341JX | -05A | -0AA |
|---|---|---|
| Stitch form | single needle lock stitch | |
| Max. sewing speed | 2,800sti/min*1 | |
| Max. sewing area | 250 x 160mm | |
| Feed mechanism | Intermittent feed (pulse motor drive) | |
| Stitch length | 0.05-20.0mm (per 0.05mm) | |
| Max. number of stitches | 20,000 stitches (per program) | |
| Max. number of programs | 999 | |
| Work clamp drive | Pneumatic drive | |
| Work clamp lift amount | Max. 30.0mm | |
| Work clamp | Intergrated-type | |
| Height of stepping presser foot | 27.0mm (highest needle stop position) | |
| Stepping presser foot stroke | 0-10mm(per 0.1mm) | |
| Hook | Double-capacity shuttle hook | |
| Thread wiper | Standard equipment | |
| Thread trimmer | Standard equipment | |
| Digital tension | Standard equipment | |
| Fabric thickness detection | Standard equipment | |
| Skipped stitch/Thread breakage detection | Standard equipment | |
| Bird's nest reduction | Standard equipment | - |
| Data storage media | Internal flash memory (data addition is available with external memory) | |
| Motor | AC servo motor 550W | |
| Weight | Machine head: Approx. 165kg Control box: Approx. 18kg | |
| Power | 1-phase: 200V-240V 450VA | |
| Air pressure/ Consumption | 0.5MPa, 1.8l/min | |
Request a Quote
New industrial machine, sourced to order for factories in the USA, Bangladesh and international projects. Final sub-class and configuration, electrical requirements (voltage/phase), table and stand, included accessories, freight and lead time are confirmed in your quotation. Use the Request Quote form on this page and tell us your application, material and quantity — our team will reply by email.
- Brand: Brother
- Model: BAS-341JX
- Machine category: Programmable Pattern Sewing Machine
- Condition: New
- Purchase method: Request for quotation only — not available for online checkout
- Freight: Quoted separately
Specifications follow the manufacturer's published data and may vary by sub-class; images may be representative. Brand names and model numbers are used solely to identify the applicable machine. Empenzo Americas is an independent supplier.
