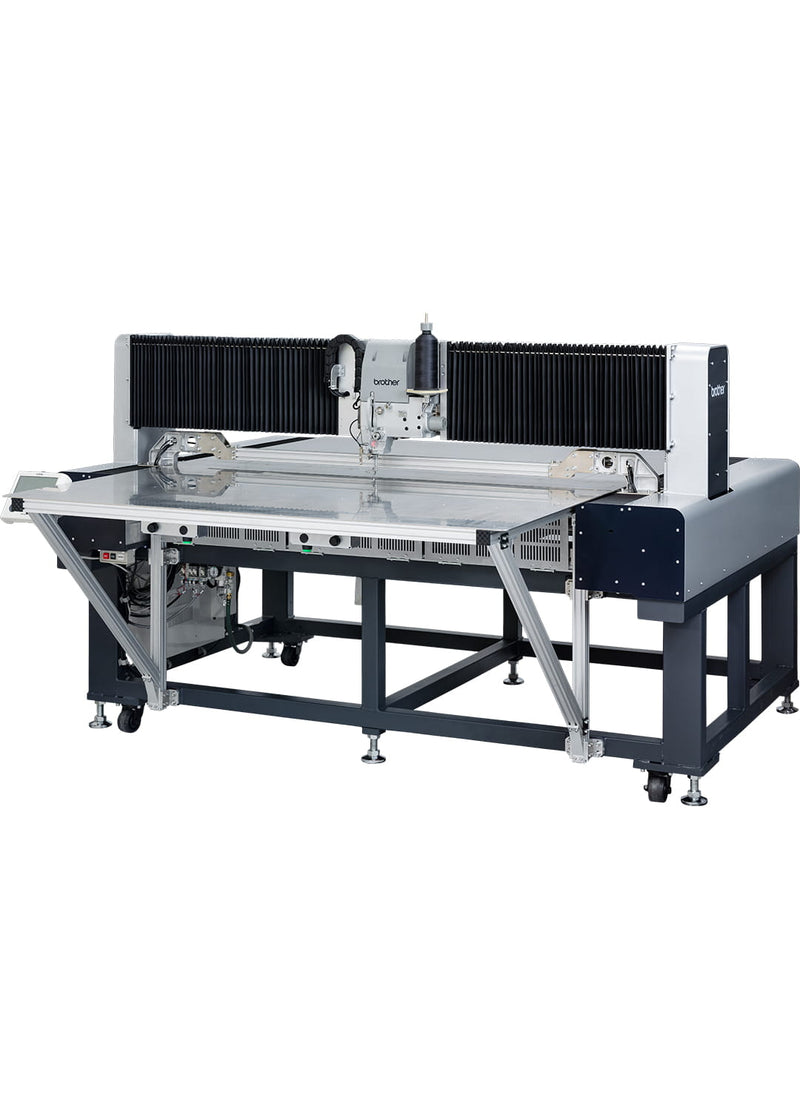

Brother NEXIO BAS-375H — Bridge Type Programmable Electronic Pattern Sewer (Max. sewing area: 1,200mmx700mm).
Key Features
- Bridge type mechanism provides great sewing quality at higher sewing speeds
- The XY independent feed mechanism delivers exceptional material control for consistently high-quality sewing results.
- Achieve world-class productivity and superior seam quality with sewing speeds of up to 2,500 stitches per minute.
- Needle cooling technology reduces thread breakage, allowing for higher sewing speeds and improved productivity.
- Designed to support a wide range of sewing applications and materials.
Specifications
| BAS-375H | |
|---|---|
| Stitch form | Single needle lock stitch |
| Max. sewing speed | 2,500sti/min (R spec: 2,200sti/min) |
| Max. sewing area | 1,200x700mm |
| Footprint | 2,199mmx2,076mm |
| Feed mechanism | Intermittent feed (pulse motor drive) |
| Stitch length | 0.05-20.0mm (per 0.05mm) |
| Max. number of stitches | 100,000 stitches (per program) |
| Max. number of programs | 999 |
| Height of stepping presser foot | 25mm(highest needle stop position) |
| Stepping presser foot stroke | 0-10mm(per 0.1 mm) |
| Work clamp | - |
| Head lifting function | Standard equipment |
| Head lifetable | 70mm (height from the top of the auxiliary plate Max.95mm) |
| Needle cooler | Standard equipment |
| Thread wiper | Standard equipment |
| Thread trimmer | Standard equipment |
| Digital tension | Standard equipment |
| Thread breakage detector | Standard equipment (fiber sensor drive) |
| Data storage media | Internal flash memory (data addition is available with external memory) |
| Motor | AC servo motor 550W |
| Weight | Approx. 910kg |
| Power | Single phase 200V / 220V 3-phase 200V -240V |
| Apparent power/Power consumption | 1200VA/ 700Wh |
| Air pressure/Consumption | 0.5MPa/Needle cooler ON:8l/min OFF:0.2/min |
Request a Quote
New industrial machine, sourced to order for factories in the USA, Bangladesh and international projects. Final sub-class and configuration, electrical requirements (voltage/phase), table and stand, included accessories, freight and lead time are confirmed in your quotation. Use the Request Quote form on this page and tell us your application, material and quantity — our team will reply by email.
- Brand: Brother
- Model: BAS-375H
- Machine category: Bridge Type Pattern Sewing Machine
- Condition: New
- Purchase method: Request for quotation only — not available for online checkout
- Freight: Quoted separately
Specifications follow the manufacturer's published data and may vary by sub-class; images may be representative. Brand names and model numbers are used solely to identify the applicable machine. Empenzo Americas is an independent supplier.
