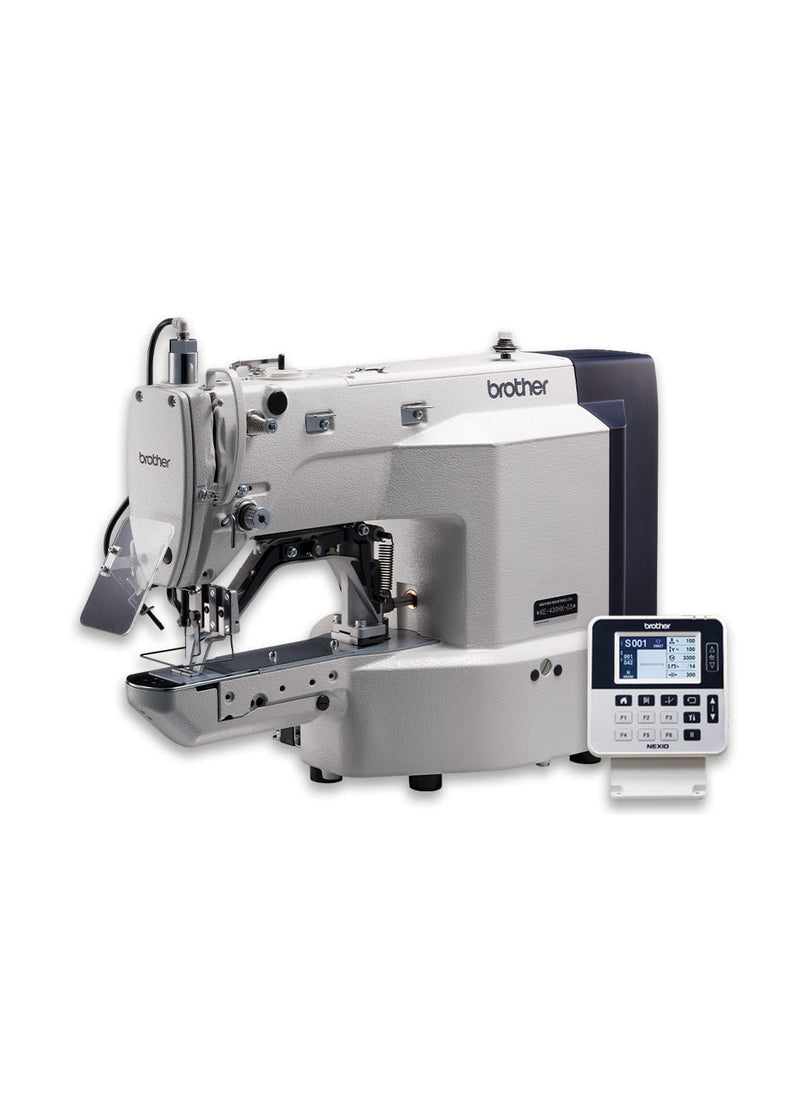

Brother NEXIO KE-430HX — Electronic Direct Drive Bar Tacking Machine with Needle Cooler.
Key Features
- Productivity Improvement by World's Top-class Sewing Speed, Needle Cooler, and IoT
- Reduction of disposition of threads ends (short remaining thread)
- Beautiful and Highly-reproducible Sewing Quality by Digital Tension
- Superior Usability as Everyone can Use Easily and Reliability
- Clean Sewing with Semi-dry Type
Specifications
| KE-430HX | 1 | 3 | 5 | 0K |
|---|---|---|---|---|
| Application | Light materials | Medium materials | Heavy materials | Knitted materials |
| Lubrication | Semi-dry | |||
| Max. sewing speed | 3,300sti/min | |||
| Max. sewing area | Max. 40x30mm*1 | |||
| Stitch length | 0.05~12.7mm | |||
| Feed mechanism | Y-θintermittent feed mechanism (pulse-motor driven mechanism) | |||
| No. of stitches | Variable (Refer to "Program List" for details on the number of stitches for sewing patterns that are already p | |||
| Max.No. of stitches | 5,000 stitches/pattern | |||
| Work clamp lifter | Pulse motor drive system | |||
| Work clamp height / Button clamp height | Max. 17mm | |||
| Rotary hook | Shuttle hook (double shuttle hook, optional) | |||
| Digital tension | Standard equipment | |||
| Thread wiper | Standard equipment | |||
| Thread trimmer | Standard equipment | |||
| Thread nipper | -01、-03、-0K:Standard equipment(-05: Option) | |||
| Data storage method | Internal flash memory (Data addition is available with external memory) | |||
| No. of cycle programs | 30 cycle (50 programs for each cycle) | |||
| No. of stored data | 89 sewing patterns are set already | |||
| (up to 500 patterns can be added. Total number of stitches of stored data which can be added is within 500,000 | ||||
| Motor | AC servo motor 550W (Direct Drive) | |||
| Weight | Machine head: Approx. 58kg, Operation panel: Approx. 0.5kg, Control box: Approx. 7kg | |||
| Power supply | Single-phase 100V/200V, 3 phase 220V/380V/400V 400VA (For single-phase 100V and 3-phase 380V/400V, the trans b | |||
Request a Quote
New industrial machine, sourced to order for factories in the USA, Bangladesh and international projects. Final sub-class and configuration, electrical requirements (voltage/phase), table and stand, included accessories, freight and lead time are confirmed in your quotation. Use the Request Quote form on this page and tell us your application, material and quantity — our team will reply by email.
- Brand: Brother
- Model: KE-430HX
- Machine category: Bar Tacking Machine
- Condition: New
- Purchase method: Request for quotation only — not available for online checkout
- Freight: Quoted separately
Specifications follow the manufacturer's published data and may vary by sub-class; images may be representative. Brand names and model numbers are used solely to identify the applicable machine. Empenzo Americas is an independent supplier.
