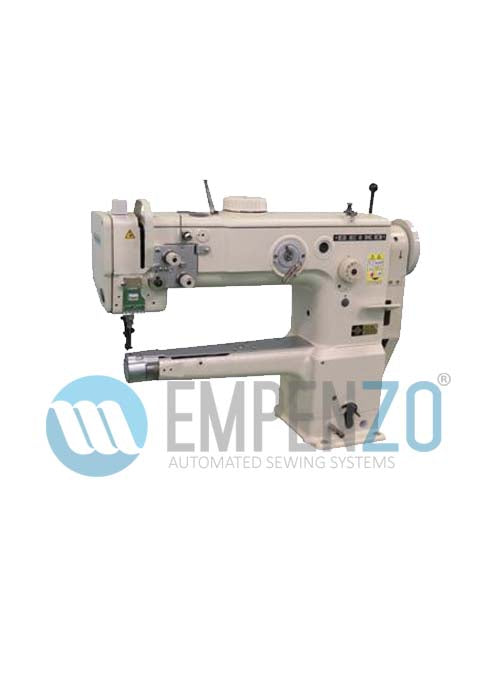

BSC series Single Nld

BSC series Single needle, High speed, Narrow Cylinder bed, Horizontal axis hook, Compound feed and walking foot, Reverse stitch, Lockstitch machines.

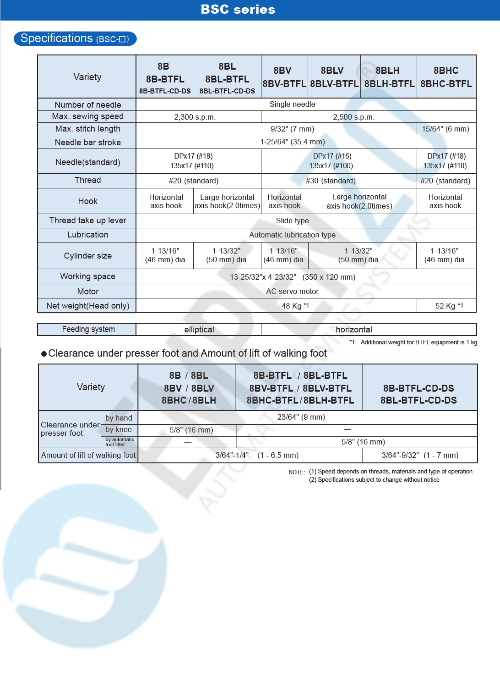

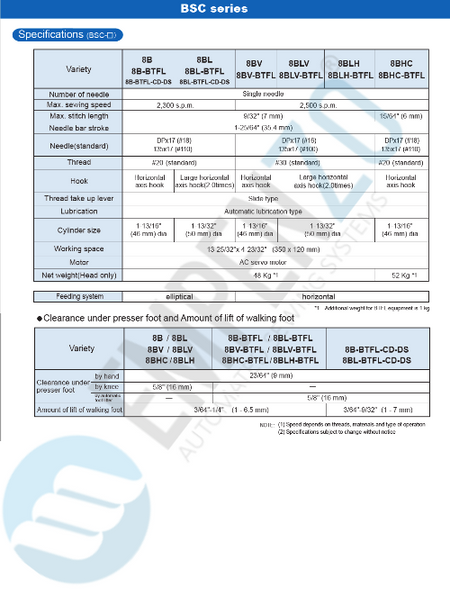

Variety BSC-8BL

Max.sewing speed      2,300s.p.m.

Max.stitch length        7mm

Clearance under

presser foot    16mm(by knee)

9mm(by hand)

Needle bar stroke       35.4mm

Needle(Standard)       DPx17 #18

135×17 #110

Hook   Large Horizontal axis hook(2.0times)

Amount of walking

foot movement           1-6mm

Lubrication      Automatic lubrication type

Cylinder size    46mm

Working space 350x120mm

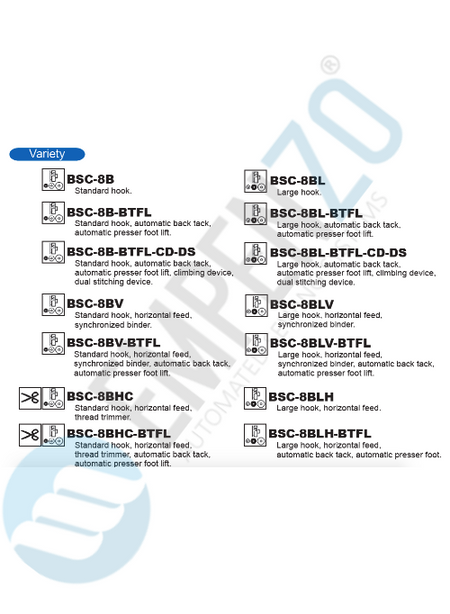

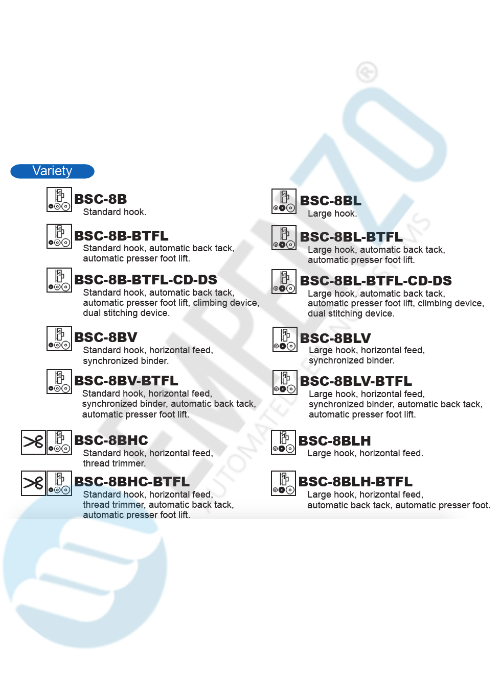

Variety

BSC-8B Standard hook,

BSC-8BL Large hook,

BSC-8BV Standard hook synchronized binder,

BSC-8BLV Large hook synchronized binder,

BSC-8BLH Large hook horizontal feed,

BSC-8BHC Standard hook thread trimmer horizontal feed

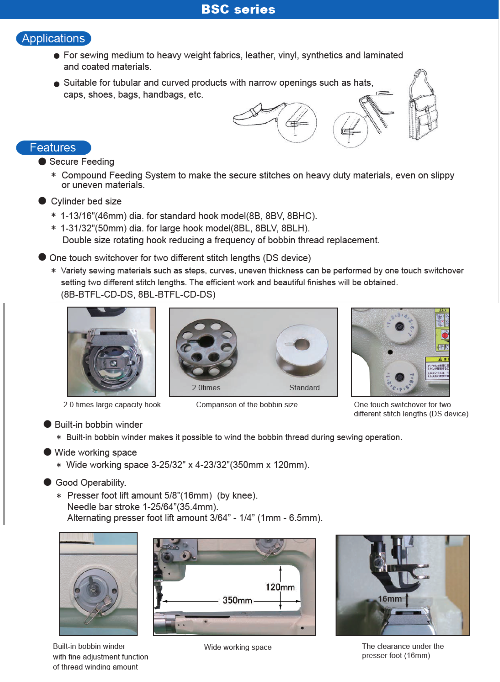

Applications

For sewing medium to heavy weight fabrics, leather,

vinyl, synthetics and laminated and coated materials.

Suitable for tubular and curved products with narrow openings

such as hats, caps, shoes, bags, handbags, etc.
