Computerize lock stitch sewing machine with top feed mechanism
GET PRICE & CONFIRM FIT
⚠️ Avoid ordering the wrong part — confirm before you buy
Submit your request using the form below and our team will quickly confirm pricing, availability, and shipping options.
Looking for multiple sewing machine parts?
Send us your parts list - our team will help you source them quickly at competitive pricing.
Fast response for urgent spare parts requests.

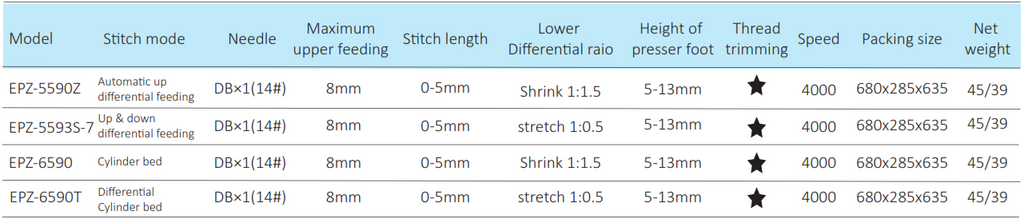

Technical Specification:
Computerized up differential feeding: EPZ-5590Z
Master of highly difficult craft solutions, the Green hand can get the apparel craft skill quickly, Necessary equipment for small orders & quick reorder mode Stable sewing quality.
Solve the Super highly difficult sewing process easily, Master of highly difficult process solutions

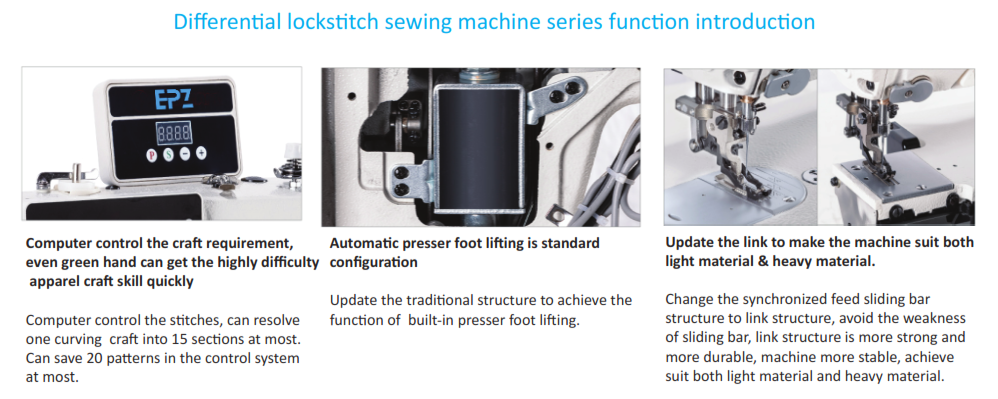

Control the synchronized presser foot intelligence through a digital motor, The Computer controls the stitches, which can resolve one curving craft in 15 seconds at most. Can save 20 patterns in the control system at most. Solve the Super highly difficult sewing craft easily
Green hand can get the apparel process skill quickly
Like an auxiliary hand to help the workers to sew. For some difficult craft, we can set the control system and the machine will control the differential automatically, the worker just needs to feed the fabric.
Stable sewing ability suits both light material and heavy material
No matter chiffon or 16 layers of jeans, even extremely thick material like leather, can sewing easily. Craft master can hold extremely elastic fabric, smooth fabric, and multi-layer fabric easily.

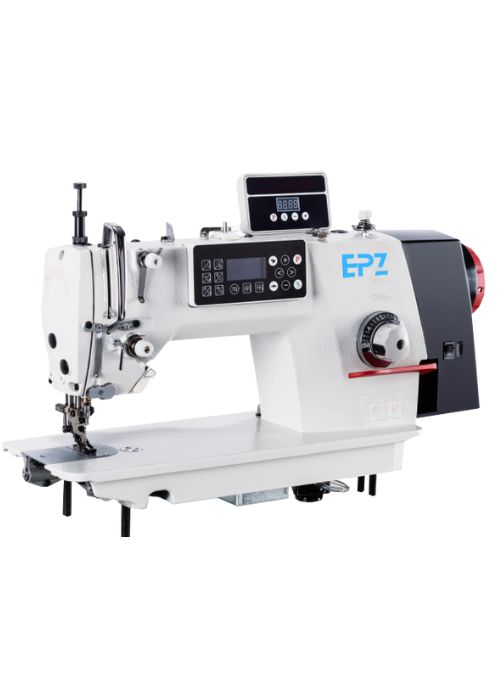

Computerized up & down differential feeding: EPZ-5593S-7
The operation screen can quickly adjust the upper/lower differential momentum, Realize rapid switching of different sewing positions, adapt to different radian, and tolerance requirements, and easy to learn and operate, up to 99 types of patterns according to different processes. The length and capacity of each segment are controlled by a servo motor, An upper sleeve arc can be divided into 9 sections at most to meet all upper sleeve process requirements. The capacity of each segment is controlled by a computer, with no need for redundant operations, 20 programs are stored, input once, used any time.
Computerized cylinder-bed up differential feeding: EPZ-6590T
The operation screen can quickly adjust the upper/lower differential momentum, Realize rapid switching of different sewing positions, adapt to different radian, and tolerance requirements, easy to learn and operate. up to 99 types of patterns according to different processes. The length and capacity of each segment are controlled by a servo motor, An upper sleeve arc can be divided into 9 sections at most to meet all upper sleeve process requirements. The capacity of each segment is controlled by a computer, with no need for redundant operations, 20 programs are stored, input once, and used at any time.
The innovative design of the small mouth bottom plate ensures the strength of the product, The Small mouth cylinder length is 78mm, the circumference is 195mm, and the Lock stitch design, is suitable for small space operations, improving production efficiency.
