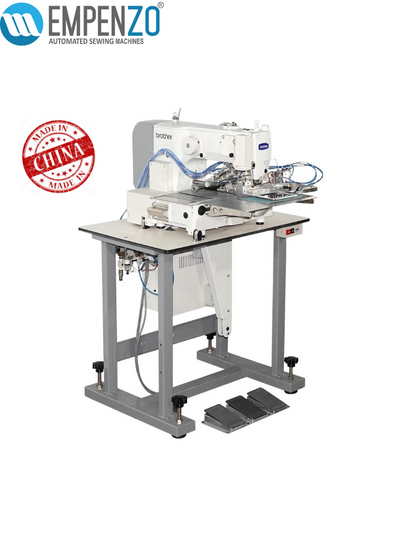

Label Attaching Machine For Multiple Labels EPZ-760 LAM-CN ( Made in China )

SKU: EPZ-760 LAM-CN
(0)
$10,000.00
In stock
On backorder

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

The unit is equipped with a double turning-sliding, or double sliding  device for shirt labels.

Metal or plastic frame holder, according to customer demand.

Frames can be easily made by customers as well .

The unit can be used to sew 1 label, as  well multiple labels (Brand label, quality label and size label all at once.

2 Sewing Heads are available ,Brother big shuttle Hook or Small rotary Hook EPZ.

Easy programming system for making  label design, on the EPZ Dahao touch

screen or Nexio.

Error messages reflect on display, in case of any error.

Height adjustable stand to maximize  operator's comfort.

Data can be quickly transferred   between different machines by USB  or SD-Card.

Programmable pressure foot height for different sections.

Thread end or thread break monitor.

Genuine SMC for all standard pneumatic parts.

No skilled operators are required for this unit



To mention at order:

  • Brother shuttle hook sewing head or EPZ rotary hook sewing head

  • Metal or plastic frame





TECHNKCAL SPECIFICATIONS

Sewing Head:  Brother BAS 311-05-XT

Needles:  DP x 17 (#18 - #22)

Max Sewing Speed: 2800Rpm By 3,5mm stitch-length.

Stitch length:  0.05 - 12.7mm

Programming: EPZ Dahao

Stitching field: 250mm x 115mm

Productivity 1 Label: 250/h 3 Labels: 175/h

Voltage :220V - 240V Mono 50/60 Hz

Power :0.36 Kw

Air pressure / Consumption: 5.5Bar / 65L/min

Dimensions mm LxWxH 1200x800x1350

Weight (NW) : 230Kg

Dimensions mm :Packed LxWxH . 1320x970x1550

Weight (GW) :290Kg
