Home » Efka Electronic Motor for Feed Off The Arm Machine 60500
Efka Electronic Motors DC 1500 - Empenzo Automated Sewing Systems

Efka Electronic Motor for Feed Off The Arm Machine 60500

Part No: 60500

Manufacturer: Efka Motor

Price & Availability Upon Request

Submit your request using the form below and our team will quickly confirm pricing, availability, and shipping options.

Looking for multiple sewing machine parts?

Send us your parts list — our team will help you source them quickly at competitive pricing.

Fast response for urgent spare parts requests.

REQUEST PRICE & AVAILABILITY

  • Product Description

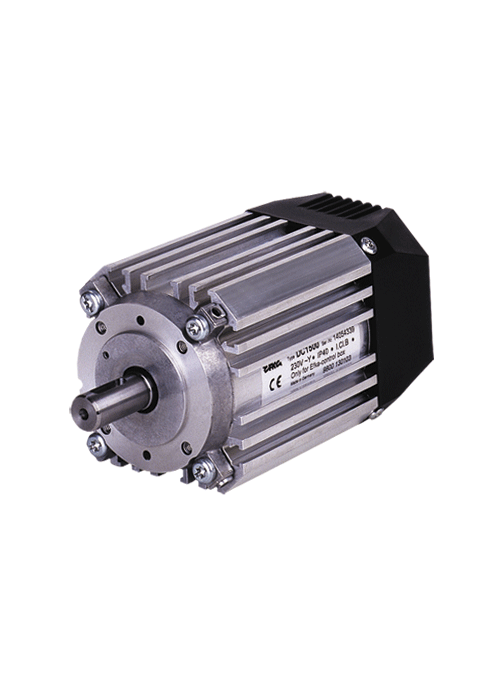

Efka Electronic Motors DC 1500





Brushless direct current  motor in compact design  for flange mounting with integrated incremental encoder. Usable for Overlock, Chainstich and light Lockstich machines.

Usable control box:

AB620A, AB611A, AB600A, AB221A, AB425S, AB286A, AB286C

Technical specifications

Power range: 400-1000 W

Operation voltage:

 230 VAC (180 V-250 V)
Maximum Speed: 9000 min-1
Nominal torque: 0,64 Nm
Maximal torque: 3 Nm
Moment of inertia (Jrot): 0,5 kgcm2
Length: 145,5 mm
Flange dimensions: 80 x 75 mm2
Weight: 2,125 kg
Insulation class: B
Protection class: IP40
Shaft end: cylindrical ∅14k6
Incremental encoder, integrated:

512 Impulses/rotation
