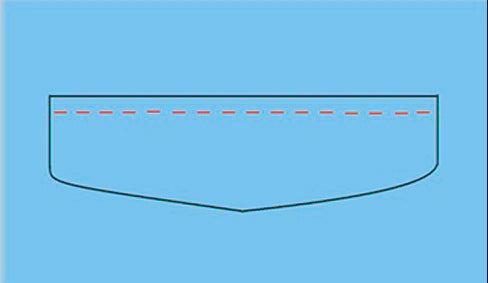

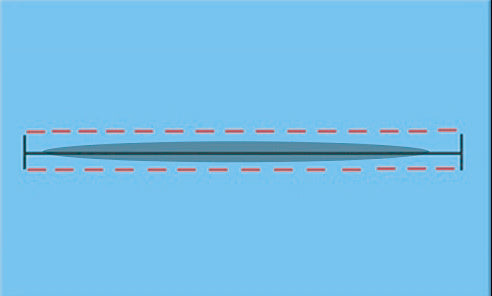

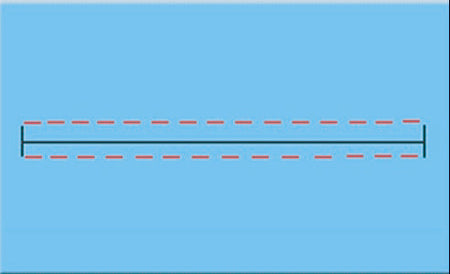

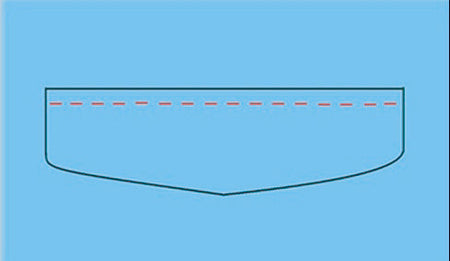

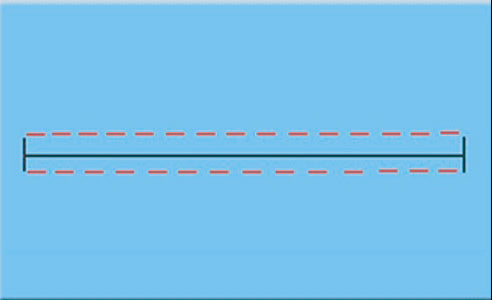

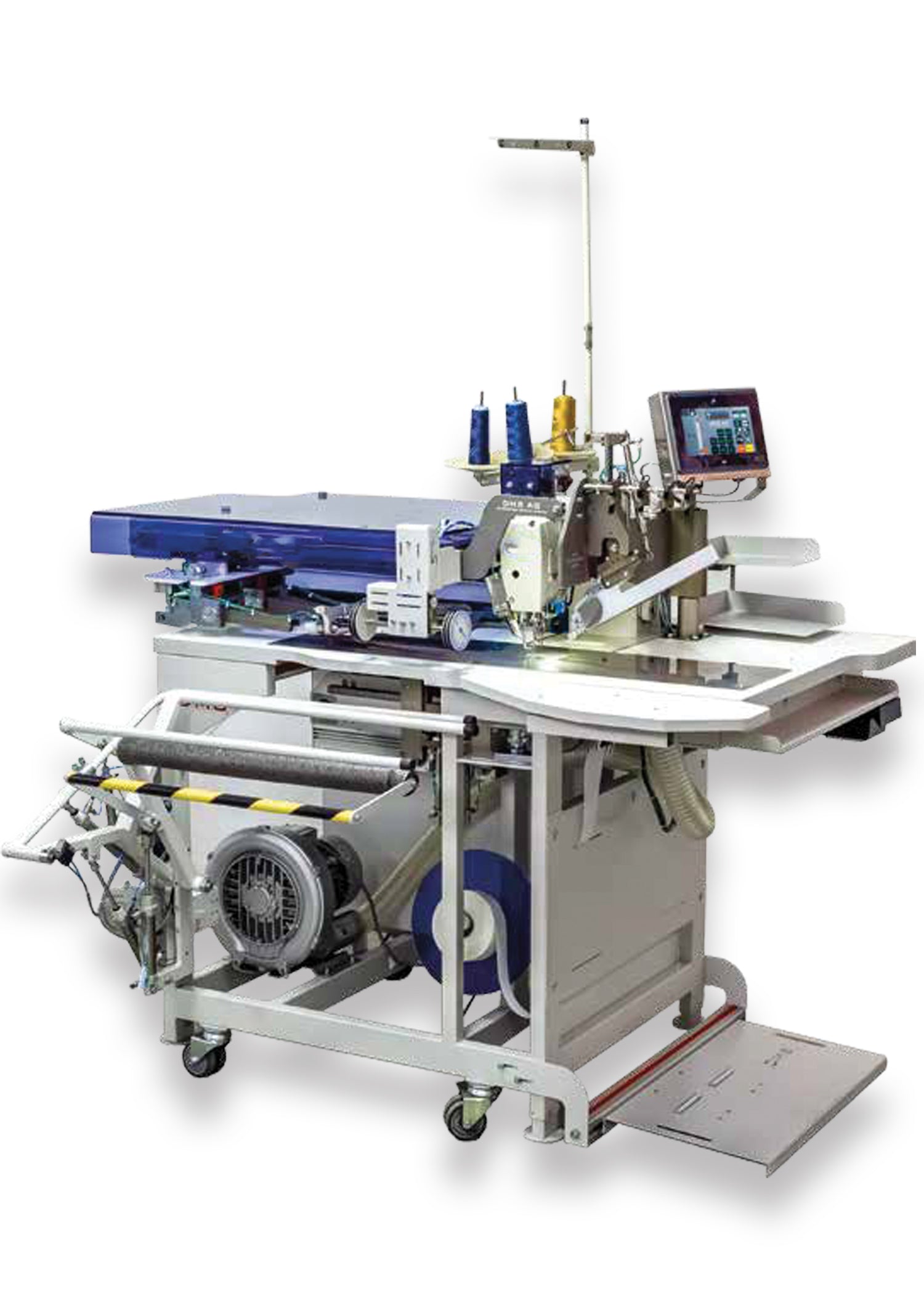

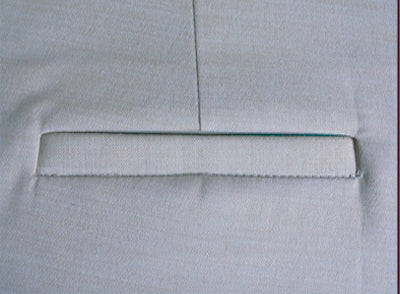

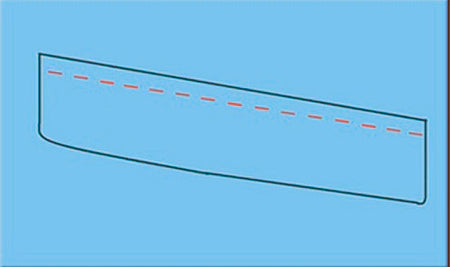

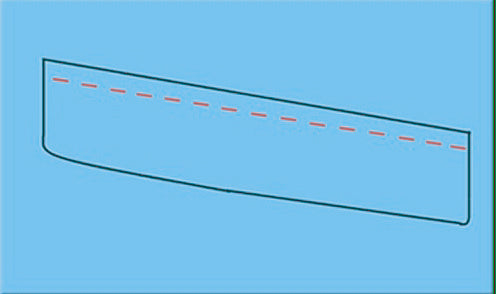

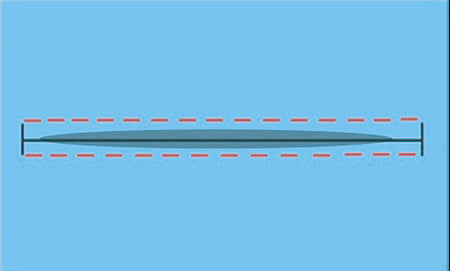

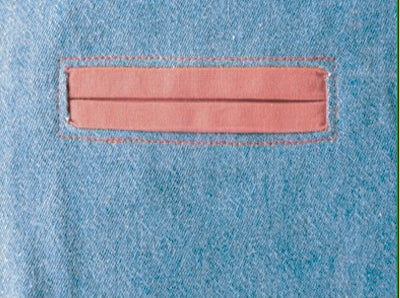

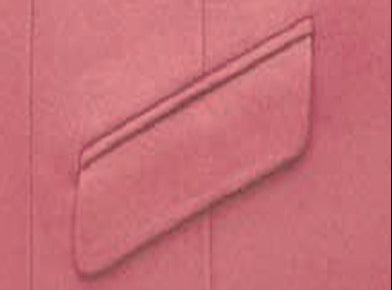

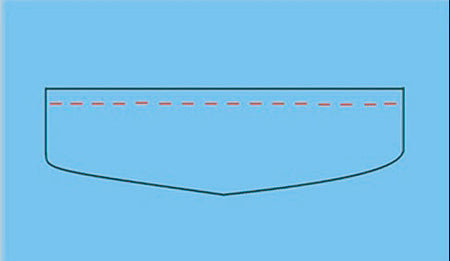

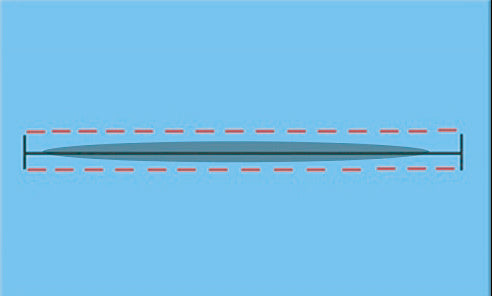

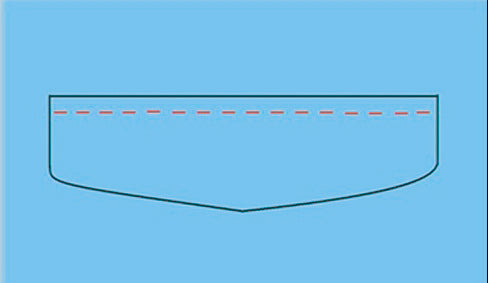

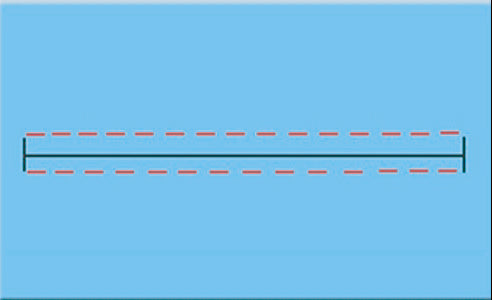

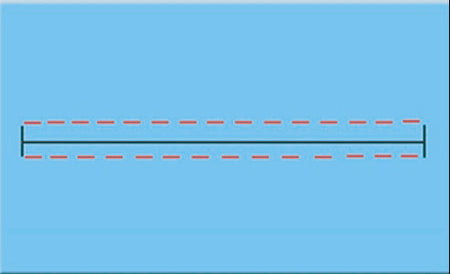

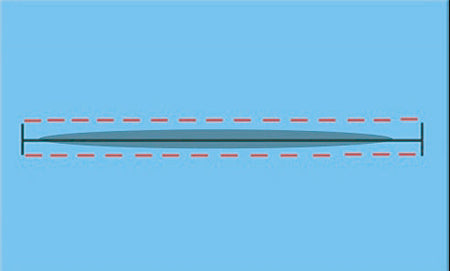

The EPZ-200 is a programmable automatic welt-pocket system for trousers, men's jackets, uniforms and workwear. It handles inside and outside pockets in combed cotton and comparable woven fabrics, producing single and double welt pockets, with or without flaps, in straight, curved and shaped configurations. Centre-knife cutting and automatic corner notching are completed in the same cycle as the seam.
Production capacity: 150–160 pieces per hour.
Models
- EPZ 200P-TR — Automatic pocket welting

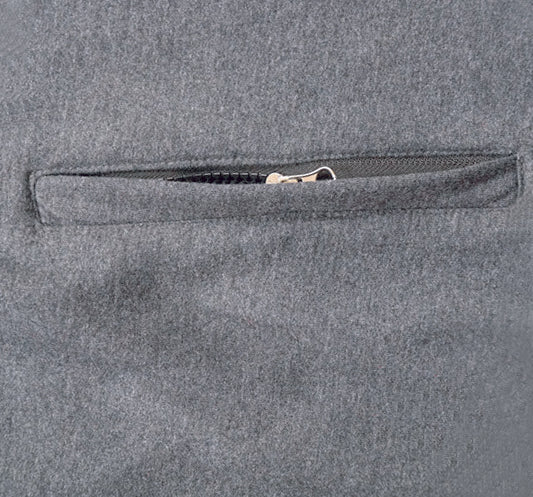

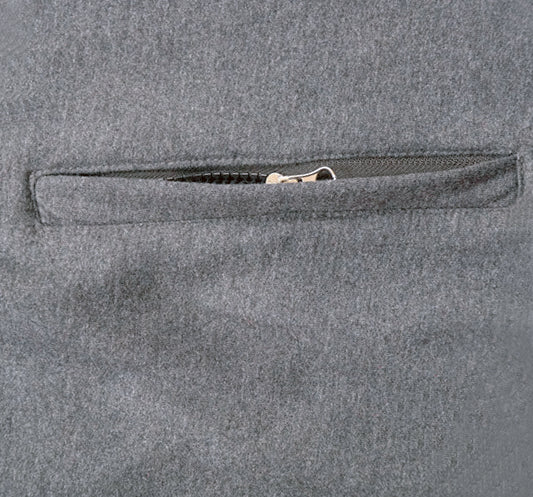

- EPZ 200Z-TR — Automatic pocket welting with zipper
- EPZ 200SN-TR — Automatic pocket welting with split needle bar
- EPZ 200TJ-TR — Automatic pocket welting for trouser and jacket
Specification
| Sewing head | Brother Model C series direct-drive needle-transport lockstitch |
| Motor | Efka 550 W mini-stop DC, or direct-drive DC servo sewing motor |
| Maximum sewing speed | 3,000 r.p.m. |
| Maximum stitch length | 0.5 or 3 mm |
| Stitch type | 301 lockstitch |
| Needle distance | 8–22 mm standard / 24–36 mm optional |
| Pocket sewing range | 20 mm to 220 mm |
| Connection voltage | Single-phase A.C. 220–230 V, 50/60 Hz |
| Air pressure | 6 bar |
| Dimensions (L×W×H) | 140 × 80 × 120 cm |
| Net weight | 200 kg |

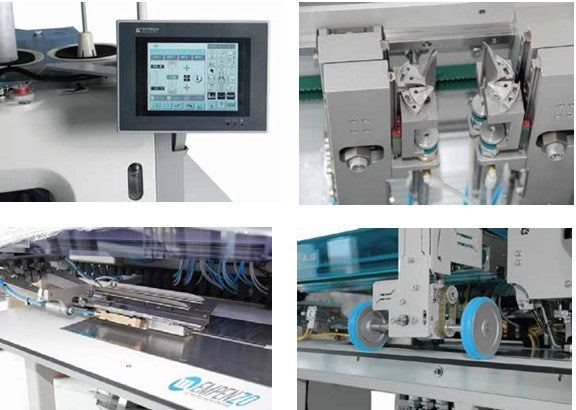

Features
- Colour graphic display
- Specially balanced machine head for quiet running
- Enhanced interlining system with stepper motor
- Knife station with stepper motor
- Enhanced fully automatic corner
- 30 programs, with 5 different cycles available within each program
- Simplified operating layout for fast operator training
Options
- Stacking
- Interlining
- Vacuum
- Ausrol
- Bottom bobbin sensor
Before You Order
This is an industrial machine supplied to order. Please contact us to confirm needle distance (welt width), pocket dimensions and fabric type, site electrical supply, compressed air availability at 6 bar, freight and delivery terms, and the final accessory list. Machines are supplied as single-phase 220–230 V as standard.
