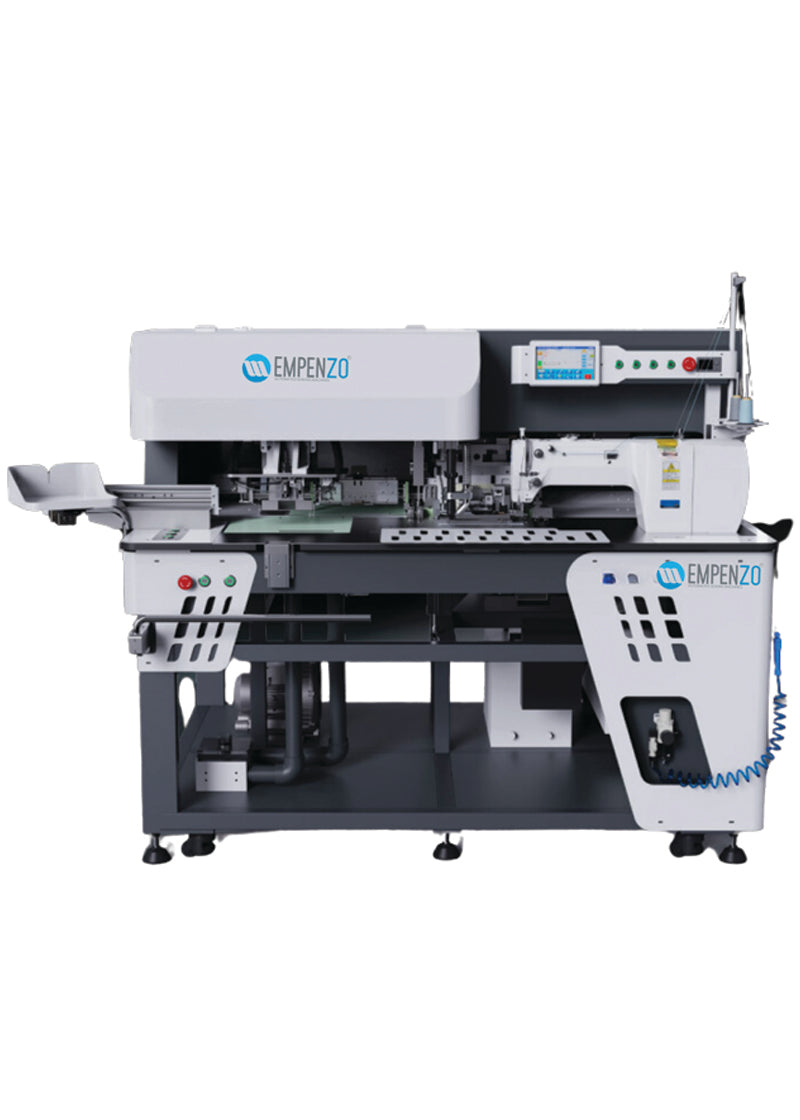

The EPZ-2210N-PW Automatic Pocket Welting Machine with Laser is a high-efficiency industrial automation solution designed for precise pocket opening, folding, and sewing operations in a single process.
Equipped with an integrated laser cutting system, this machine delivers clean and accurate pocket openings while maintaining consistent quality across various fabric types.
With fully automated functions including pocket opening, folding, feeding, sewing, and bartacking, the EPZ-2210N-PW significantly reduces labor requirements and increases production efficiency.

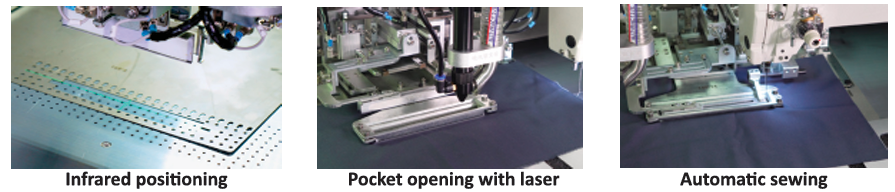

Its infrared positioning system ensures precise alignment, while intelligent automation features improve workflow and minimize errors in production.
This machine is ideal for garment manufacturers working with a wide range of pocket styles, including welt pockets, zipper pockets, and double-sided pockets.
⚙️ KEY FEATURES
- Laser pocket opening with 80–100W adjustable power
- Fully automatic process: opening, folding, feeding, sewing, cutting
- Infrared positioning system for high accuracy
- Automatic stop and intelligent detection system
- Supports multiple pocket types (single, double, zipper pockets)
- High efficiency and consistent production quality
- Suitable for various fabric types
🧵 APPLICATIONS
Welt pockets, zipper pockets, single and double pockets, casual garments, workwear, uniforms
📊 TECHNICAL SPECIFICATIONS
- Model: EPZ-2210N-PW CN
- Machine Head: 2210 Pattern Sewing Machine Head
- Needle: DPX17 (#12–#14)
- Sewing Speed: 1800–2800 rpm
- Pattern Storage: Up to 999 patterns
- Stitch Length: 1.0 – 3.5 mm
- Presser Foot Lift: 60 – 80 mm
- Sewing Range: X: 100–220 mm / Y: 10–35 mm
- Positioning: Infrared spotlight system
- Sewing Speed per Pocket: 30–40 seconds
- Folding Mode: 4-side simultaneous folding
- Cutting System: 80–100W laser cutting
- Working Mode: Opening / Folding / Sewing / Cutting / Bartacking
- Drive System: Servo motor (750W)
- Power Supply: AC 220V
- Air Pressure: 0.6 MPa (6 kg/cm²)
- Air Consumption: 22 dm/min
- Weight: 600 kg
- Packing Size: 192 × 142 × 155 cm
- Thread Break Detection: Yes (intelligent sensor)
