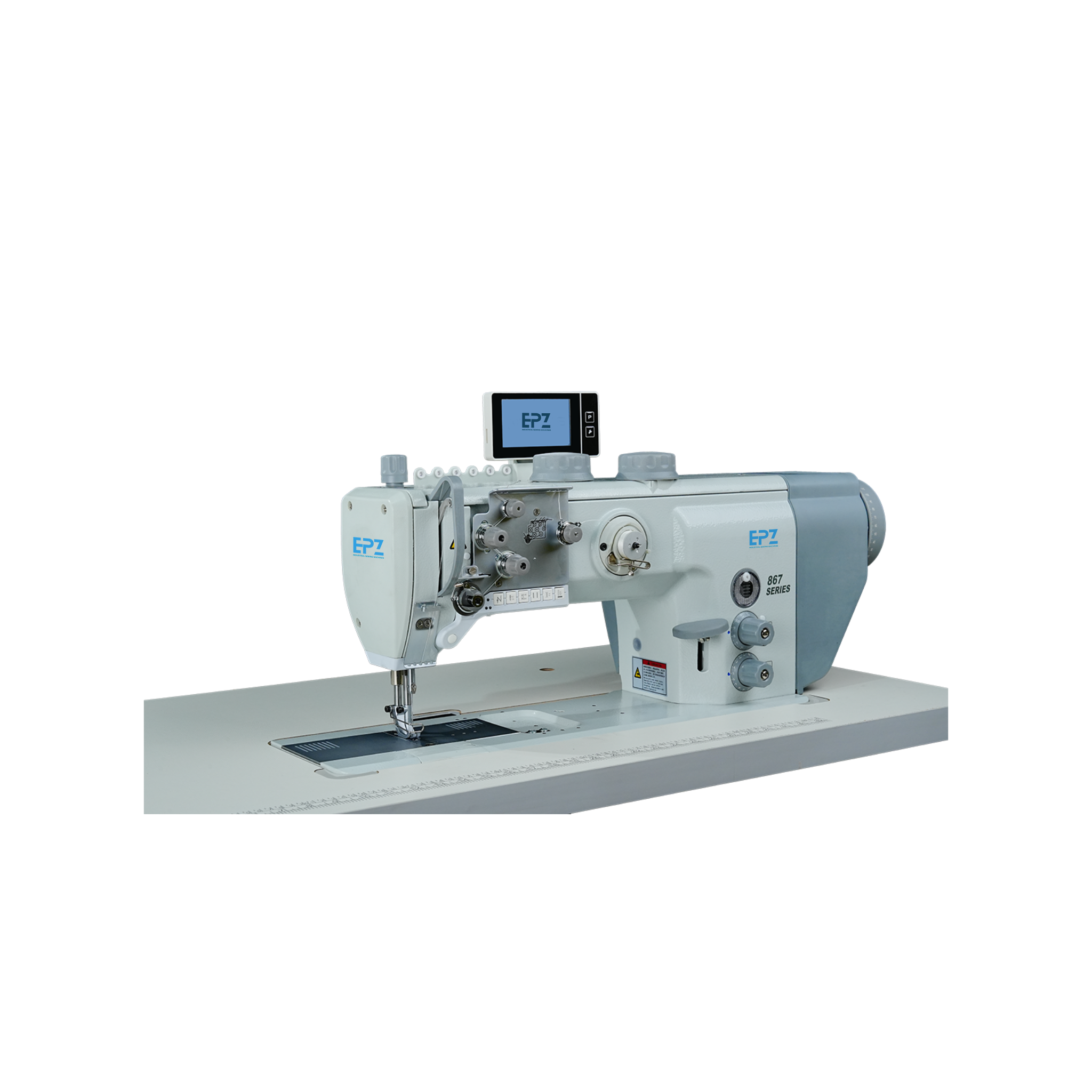

EPZ 867 Flat Bed – 335mm Long Arm Compound Feed Lockstitch Sewing Machine
Designed for medium-to-heavy duty applications requiring precise feeding, strong penetration power, and extended workspace.
The 335 mm long arm provides improved material handling while maintaining stable compound feed sewing performance.
Key Features
✔ 335 mm Long Arm Working Space
✔ Compound Feed Mechanism for Multi-Layer Materials
✔ Z-Integrated Powerful Direct Drive System
✔ EPZ Self-Developed Stable Control System
✔ Automatic Thread Trimmer
✔ Automatic Backtacking
✔ Pneumatic Presser Foot Lifter (PFL) – up to 20 mm
✔ HP Function (Heavy Penetration Mode)
✔ Knee-Operated Presser Foot Lifter
✔ Built-in Energy-Efficient LED Lighting
✔ Designed for Continuous Industrial Operation
Technical Specifications
| Feature | Specification |
|---|---|
| Machine Type | Flat Bed, Single Needle, Compound Feed Lockstitch |
| Arm Length | 335 mm Long Arm |
| Working Clearance | 335 × 120 mm |
| Max. Sewing Speed | 3,000 RPM (1,500 RPM for 12 mm version) |
| Stitch Length | 9 mm (Optional 12 mm) |
| Thread Capacity | Nm 10/3 (Nm 5/3 for 12 mm version) |
| Needle System | DP×35 (#14 – #24) |
| Top Feed Stroke | Up to 9 mm |
| Presser Foot Lift | Max. 20 mm (Pneumatic) |
| Hook System | 26XL Standard / 32 mm XXL Hook Optional |
| Bobbin Capacity | Up to 70% Larger with XXL Hook |
| Air Requirement | 4.0 NL – 6 Bar |
| Drive Type | Integrated Direct Drive |
| Control System | EPZ Intelligent Control |
| Lighting | Built-in LED |
Optional Configurations
-
12 mm Extra Long Stitch Version
-
XXL Hook for Extended Sewing Cycles
-
Edge Cutter Version (Cutting Width: 1.2 – 2.5 mm)
-
Double Needle Gauge Available: 3 mm – 70 mm
-
Standard Gauges in Stock: 4 / 6 / 8 / 10 / 12 mm
Applications
Widely used in:
-
Leather goods & bags
-
Upholstery components
-
Automotive interiors
-
Safety equipment & harnesses
-
Technical textiles
-
Reinforced seams & binding processes
EPZ — Precision in Every Stitch
Engineered for durability, consistency, and industrial performance.
