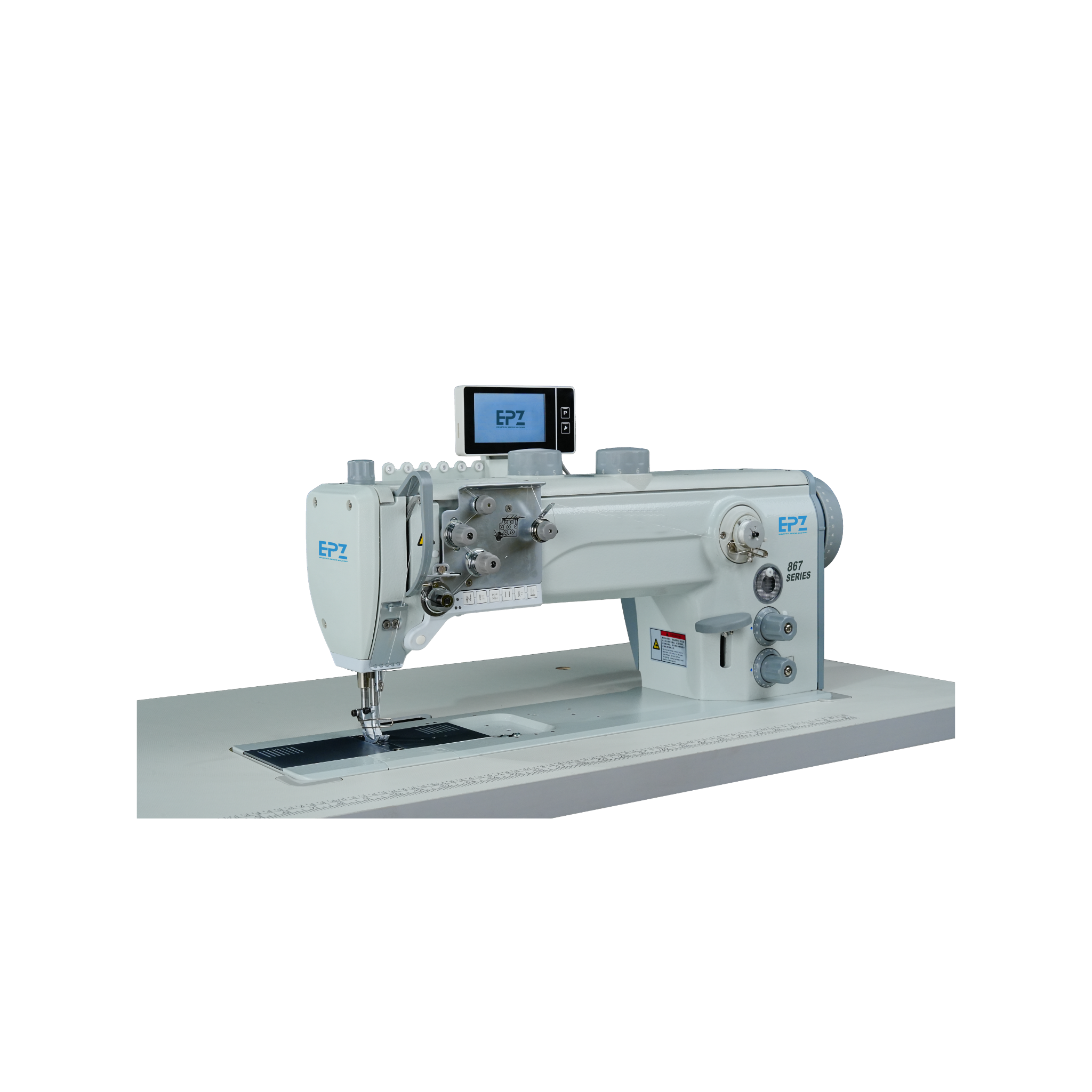

EPZ 867 Flat Bed – 460mm Long Arm Compound Feed Lockstitch Sewing Machine
Heavy-duty long arm flat bed sewing machine engineered for handling oversized workpieces and demanding medium-to-heavy material applications.
The extended 460 mm arm clearance provides superior material handling while maintaining powerful compound feed performance and precise stitch consistency.
Key Features
✔ 460 mm Extra Long Arm Design for Large Products
✔ Compound Feed Mechanism for Multi-Layer Materials
✔ Z-Integrated Powerful Direct Drive System
✔ EPZ Self-Developed Intelligent Control System
✔ Automatic Thread Trimmer
✔ Automatic Backtacking
✔ Pneumatic Presser Foot Lifter (PFL) – up to 20 mm
✔ HP Function (Heavy Penetration Mode)
✔ Energy-Efficient Built-in LED Lighting
✔ Designed for Continuous Industrial Production
Technical Specifications
| Feature | Specification |
|---|---|
| Machine Type | Flat Bed, Single Needle, Compound Feed Lockstitch |
| Arm Length | 460 mm Long Arm |
| Max. Sewing Speed | 3,000 RPM (1,500 RPM for 12 mm version) |
| Stitch Length | 9 mm (Optional 12 mm Heavy-Duty Version) |
| Needle System | DP×35 (#14 – #24) |
| Thread Capacity | Up to Nm 10/3 (Nm 5/3 for 12 mm version) |
| Presser Foot Lift | Max. 20 mm (Pneumatic) |
| Feed Stroke | Up to 9 mm |
| Hook System | 26XL Standard / 32 mm XXL Hook Optional |
| Bobbin Capacity | Up to 70% Larger with XXL Hook |
| Drive Type | Integrated Direct Drive |
| Control System | EPZ Intelligent Control |
| Lighting | Built-in LED |
| Air Requirement | 4.0 NL – 6 Bar |
Optional Configurations
-
12 mm Extra Long Stitch Version (Heavy Material Sewing)
-
32 mm XXL Hook (Large Bobbin Capacity)
-
Edge Cutter Version (1.2 – 2.5 mm Cutting Width)
-
Special Needle Gauges Available Upon Request
Applications
Ideal for:
-
Upholstery & furniture components
-
Automotive interiors
-
Safety equipment & harnesses
-
Large leather panels & bags
-
Technical textiles
-
Mattresses & padded assemblies
-
Long seam heavy-duty products
