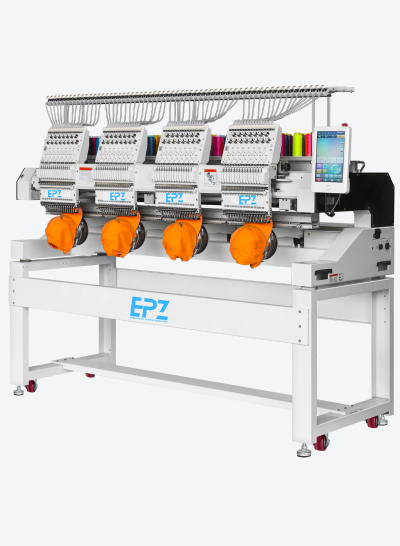

EPZ-FW-1504C – 4 Head Commercial Embroidery Machine – 400×450mm

The 4 Head Commercial Embroidery Machine is designed for growing embroidery factories and contract production workshops that require reliable multi-head efficiency. It delivers synchronized stitching performance, consistent stitch quality, and stable industrial operation for daily commercial production.

Available on request. Built to order.

Machine Overview

Brand: EPZ
Model: EPZ-FW-1504C
Heads: 4
Needles: 9 / 12 / 15 (Selectable)
Internal SKU:
FW1504C-9N-400450
FW1504C-12N-400450
FW1504C-15N-400450

The EPZ-FW-1504C features a reinforced heavy-duty industrial frame engineered for synchronized multi-head performance, ensuring maximum stability and precision across all 4 heads during extended production cycles.

Embroidery Specifications

Embroidery Area (per head): 400 × 450 mm
Wide Cap Frame: 270°
Maximum Speed: 1200 RPM
Screen: Dahao A18 Touch Screen
Memory: 100 million stitches / 800 designs
Voltage: AC110V–230V, 50/60 Hz
X/Y Motor: Industrial servo motor system
File Support: DST & DSB

Functions & Features

Cap / Flat / Garment embroidery
Automatic thread trimming
Automatic thread break detection
19 language support
Industrial multi-head synchronization system
Designed for continuous factory production

Packing & Shipping

Packing Size: 2800 × 1130 × 1500 mm

Built-to-order production.
Shipping and installation quotation provided based on destination.

Orders are typically processed within 1–3 business days.

We ship from our Georgia, USA warehouse. If an item is temporarily unavailable in the U.S., we source it through our global supplier network and will notify you of the estimated lead time.

Free shipping is available on U.S. orders over $99.

Once your order ships, you will receive a tracking number by email.

For urgent orders or shipping questions, please contact us before placing your order.

We stand behind the quality of the products we sell.

• Genuine OEM parts are covered by the manufacturer's warranty where applicable.

• Aftermarket and generic parts are covered against manufacturing defects.

• If you receive a damaged, defective, or incorrect item, please contact us within 30 days of delivery.

• Warranty does not cover damage caused by improper installation, misuse, normal wear, or modifications.

If you have any questions, our support team is happy to help before or after your purchase.
