⚠️ IMPORTANT NOTICE

This is an industrial machine.

👉 Please contact us before purchase for:

• Availability
• Shipping cost (LTL / International)
• Configuration options

🔹 Product Overview

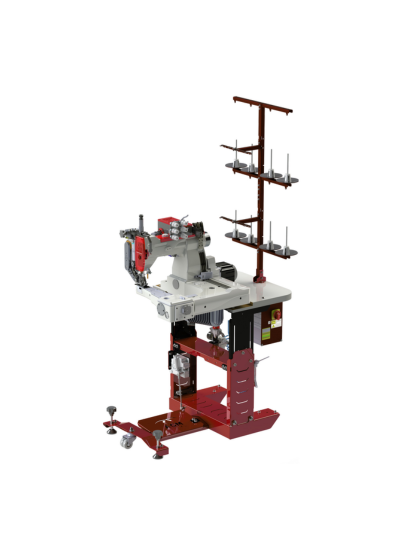

Heavy-duty feed-off-the-arm sewing machine with differential feeding system, designed for high-quality stitching on denim and thick materials.

The AGM KZ 1080 DFX is specifically engineered to eliminate puckering and seam distortion, especially in critical areas such as crotch seams and joint sections.

With its adjustable differential feed mechanism, operators can precisely control fabric feeding, ensuring smooth and uniform stitching across different material thicknesses.

Ideal for jeans manufacturers and factories working with complex sewing operations.

⚙️ Key Features

• Differential Feeding System – Adjustable feed for perfect seam control
• Anti-Puckering Performance – Ideal for crotch and joint areas
• 3 Needle Chain Stitch – Strong and flexible seam structure
• High-Speed Operation – Up to 5000 RPM
• Full Oil Lubrication Gearbox – Long life & stable performance (Patented)
• Movable Roller Puller – Prevents overlapping and seam distortion
• Direct Drive Servo Motor – Energy efficient and stable
• Automatic Foot Lifter – Improves operator efficiency
• Needle Cooling System – Extended needle life
• Heavy Duty Construction – Designed for continuous industrial use

📊 Technical Specifications

• Model: KZ 1080 DFX
• Machine Type: Feed-Off-The-Arm Sewing Machine
• Feeding System: Differential Feeding
• Stitch Type: 3 Needle Chain Stitch
• Maximum Speed: 5000 RPM
• Motor: Direct Drive Servo Motor
• Voltage: 220–240V / 60Hz
• Power: 2400–2800W
• Air Pressure: 6 bar
• Air Consumption: 3 L/min
• Net Weight: 98 kg
• Gross Weight: 125 kg
• Dimensions: 60 × 100 × 130 cm

🔧 Advanced Systems

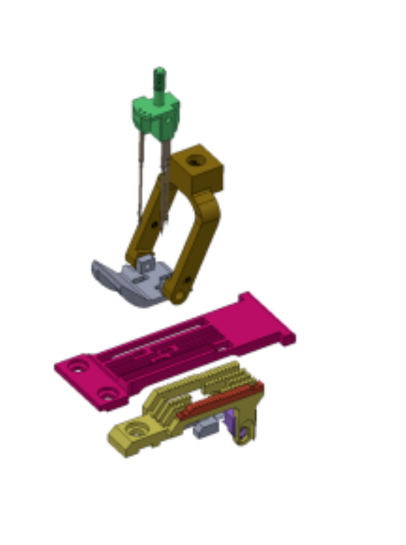

• Differential Feed Dog System (Adjustable)
• Full Oil Lubrication Gearbox (Patented)
• Movable Roller Puller System
• Automatic Double Tension Mechanism
• Special Guided Presser Foot
• Adjustable L-Type Table & Stand

📏 Gauge Options

• Standard Gauge: 1/8” – 1/8”
• Needle Distance: 1/8” – 1/4”
• Needle Count: 1 to 3
• Optional Gauge Sets:
  • 1/8–1/8 Slim (3 needle)
  • 3/16 (2 needle)
  • 9/32 (3 needle)
  • 5/32 (2 needle)

🌎 Application Advantage

This machine is especially effective in operations where fabric distortion is common.

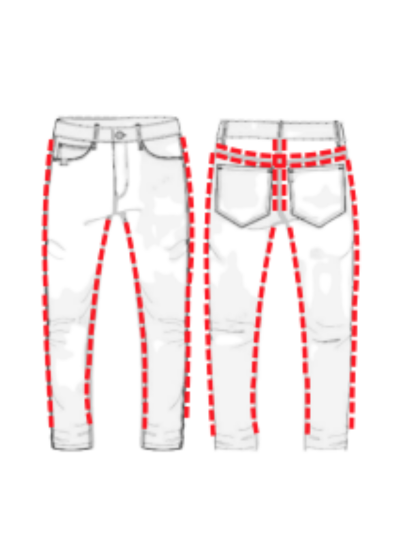

👉 Best for:

• Jeans crotch seams
• Heavy denim joints
• Workwear stress areas

👉 Key Advantage:
Differential system allows precise adjustment of fabric feeding, preventing wrinkling and uneven stitching.

🚚 Shipping & Ordering

• Ships via LTL freight or international cargo
• Delivery options available (warehouse pickup / door delivery)
• Lead time depends on configuration and stock availability

👉 For pricing and availability, please contact us directly.

💼 Industrial Solutions

We also provide complete garment production solutions including:

• Denim production machines
• Pattern sewing machines
• Sewing automation systems

👉 Contact us for full factory setup support and bulk inquiries
