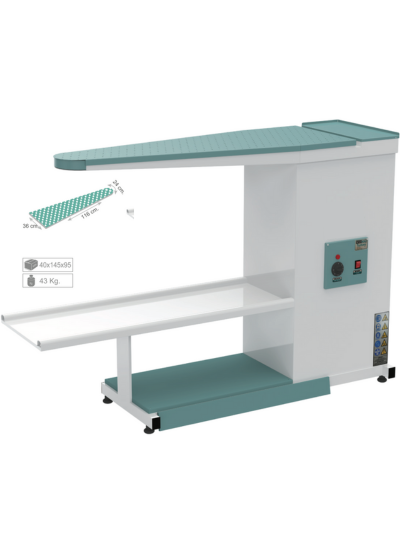

Vacuum Narrow Board EPZ-C200-TR
About product
Vacuum table and perforated sheet are 1.5 mm thick
Strong vacuum system with stack fan
Table heater indicator
Table temperature setting between 50 – 300°C
It is used in model shops, final ironing and intermediate ironing systems.
Features
Electric Power: 220V & 380V
Vacuum Engine: 0.55 Kw
Table Heater: 1.5 Kw
Vacuum Flow: 2500 m³/h
Table Length: 24 x 36 x 116 cm
Ironing Area: 24 x 36 x 116 cm
Weight: 43 Kg

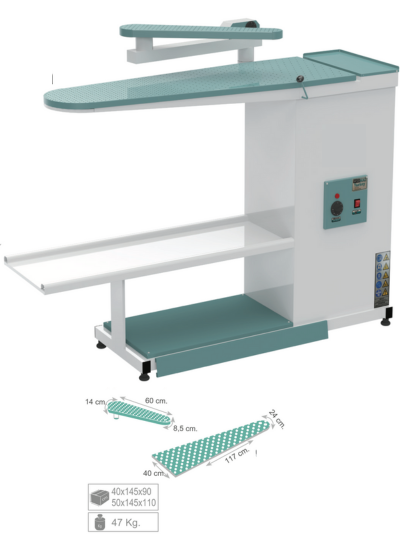

Narrow Board With Vacuum Arm Device EPZ-C201-TR
About product
Vacuum table and perforated sheet are 1.5 mm thick
Strong vacuum system with stack fan
Table heater indicator
Table temperature setting between 50 * 300°C
Thanks to the sleeve apparatus, the sleeves of the products are ironed better.
90 degree rotatable vacuum arm apparatus (heating can be added if desired)
It is used in model shops, final ironing and intermediate ironing systems.
Features
Electric Power: 220V & 380V
Vacuum Engine: 0.55 Kw
Table Heater: 1.5 Kw
Vacuum Flow: 2500 m³/h
Table Length: 24 x 36 x 116 cm
Dimensions W.B.H: 50 x 145 x 110 cm
Weight: 47 Kg

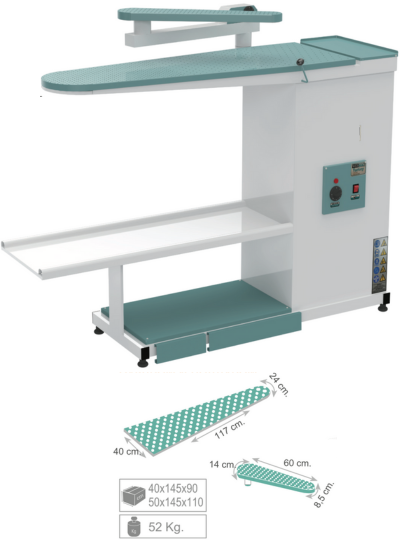

Narrow With Vacuum Blowing Arm Device EPZ-C202-TR
About product
Designed for dry cleaning.
Thanks to its blowing feature, it prevents velvet, stamp, lining and dark colored products from shining.
Since it has a vent, it does not release vacuum air to the ground and does not lift the dust on the ground.
Thanks to the balancer, the hand iron stays in the air, your arms do not get tired and you can iron comfortably.
The upper table is equipped with heating, vacuum and blowing features.
Thanks to the handle attachment, it provides better ironing of places such as jacket sleeves.
Features
Electric Power: 380V
Vacuum Engine: 2 x 0.55 Kw
Table Heater: 1.5 Kw
Vacuum Flow: 2500 m³/h
Table Length: 116 x 40 x 24 cm
Measurements E.B.Y. :50 x 145 x 110 cm
Weight: 44 kg

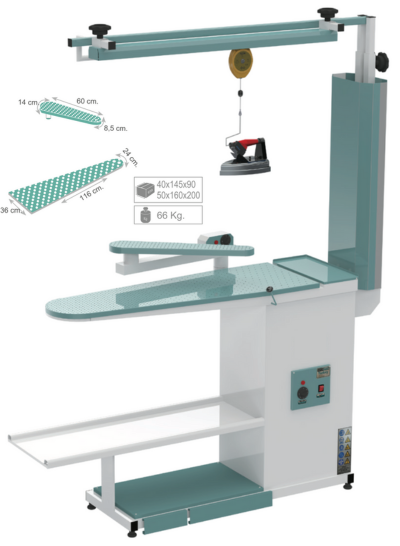

Full System Narrow Bar (Water Spray Unit Is Excluded) EPZ-C203-TR
About product
It is generally designed for dry cleaning.
Thanks to its blowing feature, it prevents velvet, cachet and dark colored products from shining.
Since it has a vent, it does not release vacuum air to the ground and does not lift the dust on the ground.
Thanks to the balancer, your arm will not get tired and you can iron comfortably.
The upper table is equipped with heating, vacuum and blowing features.
Thanks to the handle attachment, it provides better ironing of places such as jacket sleeves.
Features
Electric Power: 380V
Vacuum Engine: 2 x 0.55 Kw
Table Heater: 1.5 Kw
Vacuum Flow: 2500 m³/h
Table Size: 116 x 36 x 24 cm
Measurements E.B.Y. : 50 x 160 x 200 cm
Weight: 66 Kg

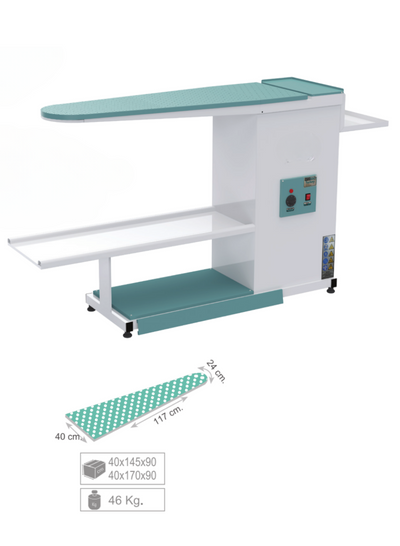

Special Putting Side Narrow EPZ-C400-TR
About product
Strong vacuum system with stack fan
Perforated sheet is 1.5 mm thick
1 Lt. – 2 Lt. and 3.5 Lt. It is provided in combination with a boiler iron.
It is used in model shops, tailor shops, hotels, laundries and stores.
Features
Electric Power: 220V & 380V
Vacuum Engine: 0.55 Kw
Table Heater: 1.5 Kw
Vacuum Flow: 2500 m³/h
Table Length: 24 x 36 x 117 cm
Dimensions W.B.H: 40 x 170 x 90 cm
Weight: 46 Kg

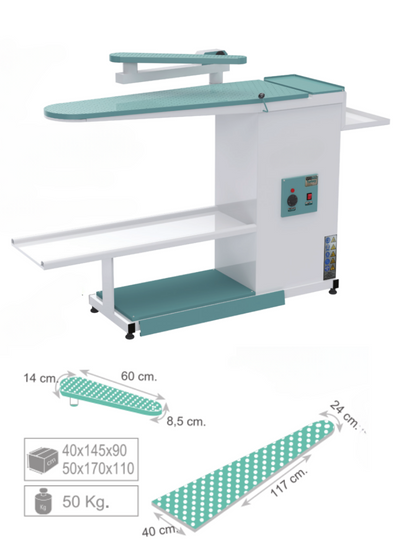

Special Putting Side Narrow with Arm Device
About product
Strong vacuum system with stack fan
Perforated sheet is 1.5 mm thick
Table heater indicator
1 Lt. – 2 Lt. and 3.5 Lt. It is provided in combination with a boiler iron.
It is used in model shops, tailor shops, hotels, laundries and stores.
Thanks to the handle attachment, it provides better ironing of places such as jacket sleeves.
Features
Electric Power: 220V & 380V
Vacuum Engine: 0.55 Kw
Table Heater: 1.5 Kw
Vacuum Flow: 2200 m³/h
Table Size: 116 x 40 x 24 cm
Dimensions W.B.H: 50 x 170 x 110 cm
Weight: 50 Kg

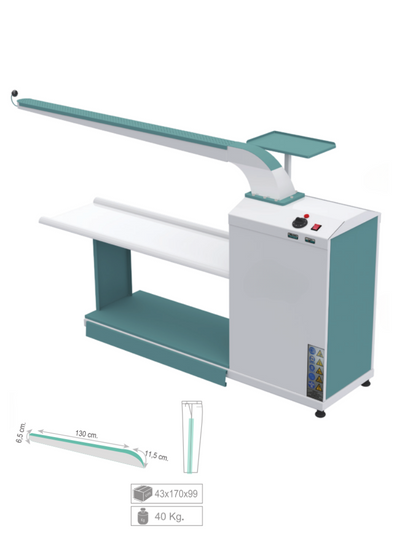

Trousers Side Seam Opening (Chained) EPZ-C700-TR
About product
Designed for trouser side seam opening.
It fits perfectly into the form of the product.
Chains can be added if desired.
Features
Electric Power: 220V & 380V
Vacuum Motor: 0.55 Kw
Table Heater: 1 Kw
Vacuum Flow: 2500 m³/h
Table Dimensions: 6.5 x 11.5 x 130 cm
Dimensions W.B.H: 43 x 170 x 99 cm
Weight: 40 Kg

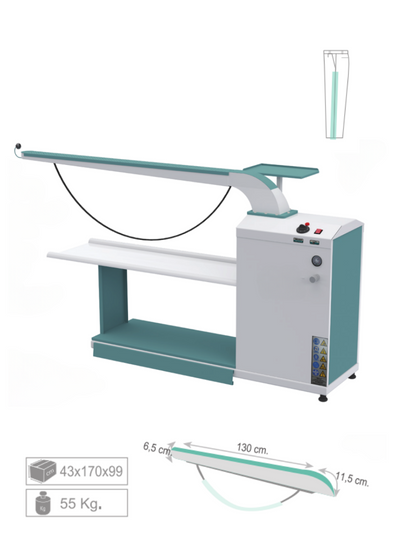

Trousers Side Seam Opening (Pneumatic System Chain) EPZ-C702-TR
About product
Designed for trouser side seam opening
Provides ease of use thanks to the pneumatic piston chain system
It fits perfectly into the form of the product.
Features
Electric Power: 220V & 380V
Vacuum Motor: 0.55 Kw
Table Heater: 1 Kw
Vacuum Flow: 2500 m³/h
Table Dimensions: 6.5 x 11.5 x 130 cm
Dimensions W.B.H: 43 x 170 x 99 cm
Weight: 55 Kg
