LSW single Nld series (edge trimming)

LSW single needle series (edge trimming) High speed, Large vertical axis hook, Compound feed and walking foot,Reverse stitch, Lockstitch machines.

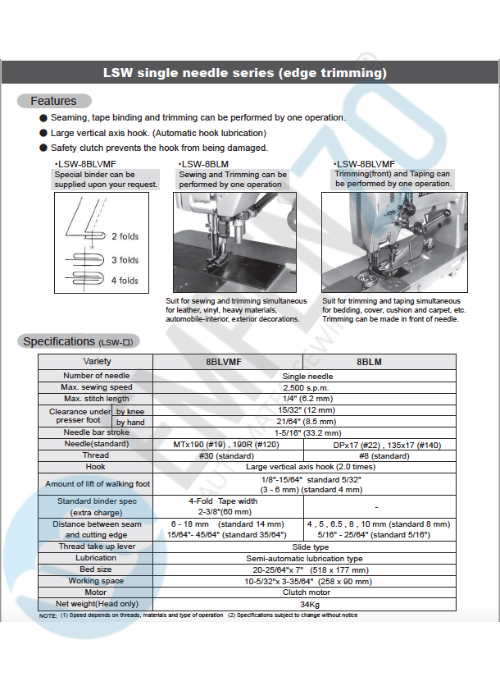

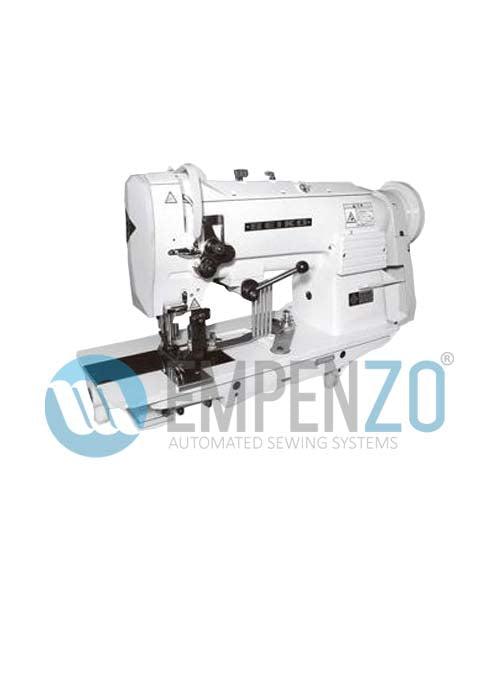

Variety LSW-8BLVMF

Max.sewing speed      2,500s.p.m.

Max.stitch length        6.2mm

Clearance under

presser foot    12mm(by knee)

8.5mm(by hand)

Needle bar stroke       33.2mm

Needle(Standard)       MTx190(#19)

190R(#120)

Hook   Large vertical axis hook (2.0times)

Amount of walking

foot movement           3-6mm(Standard 4mm)

Lubrication      Automatic lubrication type

Variety

LSW-8BLM

Vertical edge trimming(right)

LSW-8BLVMF

Vertical edge trimming (front), synchronized binder(*)

Applications

For sewing medium to heavy weight fabrics, leather, vinyl,

synthetics and laminated and coated materials.

Designed for operation such as tape binding, edge trimming for

quilt, cushion, cover and automobile-interior.

(*)Available various special binder at extra charge.
