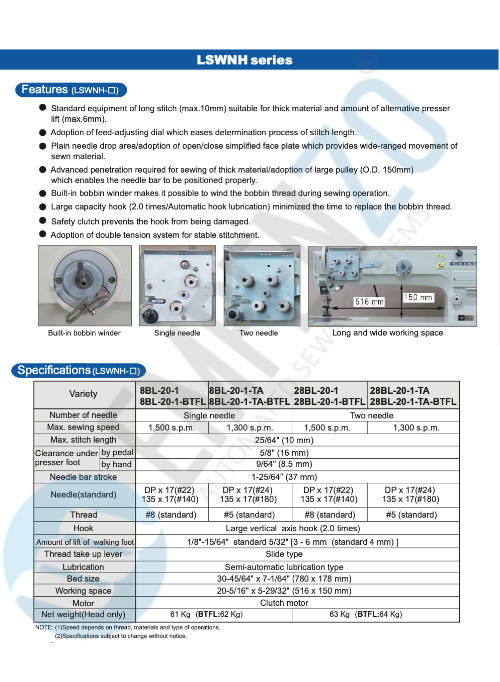

LSWNH series

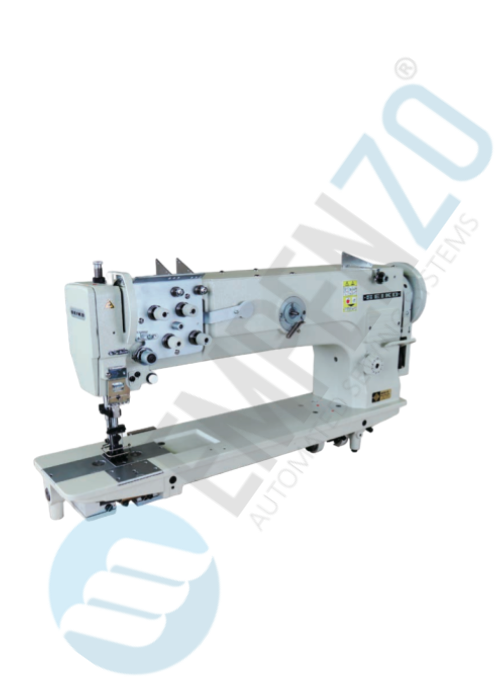

LSWNH series 20 inch long arm and high arm, Large vertical axis hook, Compound feed and walking foot, Reverse stitch, Lockstitch machine.

Variety LSWNH-28BL-20-1-BTFL

Max.sewing speed      1,500s.p.m.

Max.stitch length        10mm

Clearance under

presser foot    16mm(by pedal)

8.5mm(by hand)

Needle bar stroke       37mm

Needle(Standard)       DPx17 #22

135×17 #140

Hook   Large vertical axis hook (2.0times)

Amount of walking

foot movement           3-6mm(Standard 4mm)

Lubrication      Semi-automatic lubrication type

Working space 516×150mm

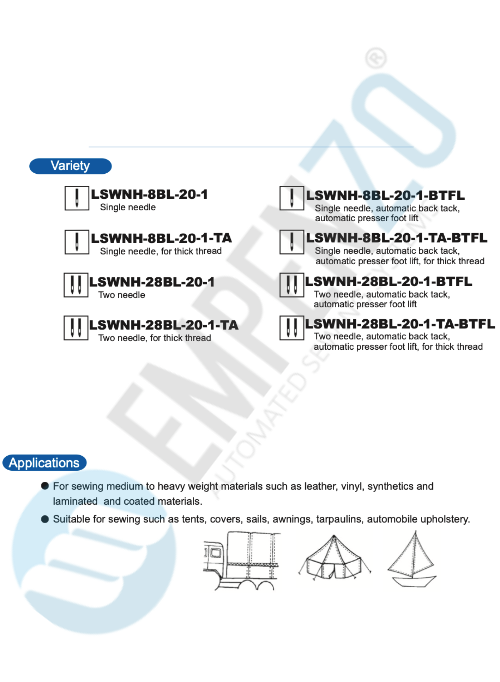

Variety

LSWNH-8BL-20-1

Single needle 20inch long arm

LSWNH-8BL-20-1-BTFL

Single needle automatic back tack automatic presser foot lift 20inch long arm.

LSWNH-8BL-20-1-TA-BTFL

Single needle automatic back tack automatic presser foot lift  for thick thread 20inch long arm

LSWNH-28BL-20-1

Two needle 20inch long arm

LSWNH-28BL-20-1-BTFL

Two needle, automatic back tack,automatic presser foot lift, 20inch long arm.

LSWNH-28BL-20-1-TA-BTFL

Two needle, automatic back tack,automatic presser foot lift, for thick thread, 20inch long arm.

Applications

For sewing medium to heavy weight materials such as leather, vinyl, synthetics and laminated and coated materials.

Suitable for sewing such as tents, covers, sails, awnings, tarpaulins, automobile upholstery.
