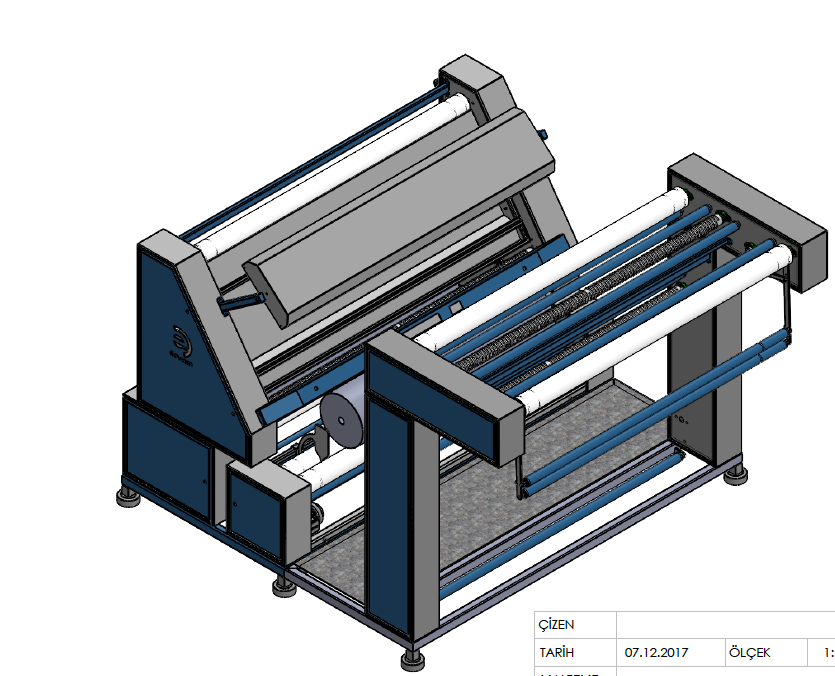

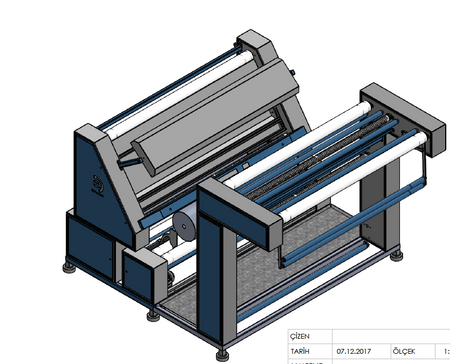

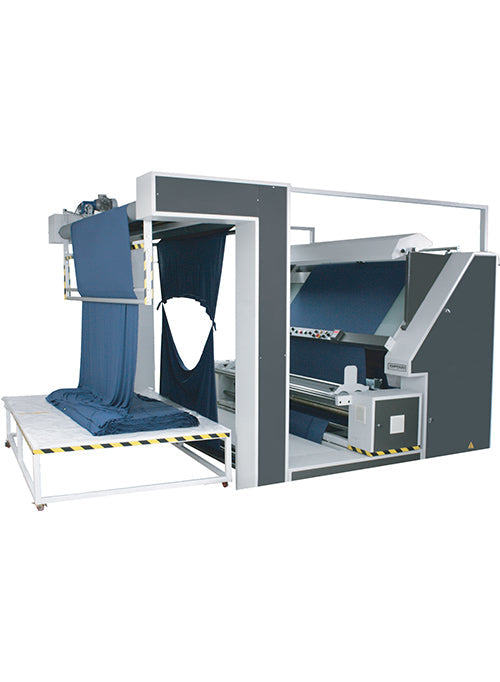

Open Width - Finished Fabric Inspection and Fabric Opening Machine
Working Width: 2400 mm.
Roll Diameter: 500 mm.
Working Speed: 0/60 m / min with manual adjustment.
Mode of Operation: The fabric taken from the unloading basket or the marker is opened in spiral openers and transferred to the screen with the help of the pulling cylinder. The controlled fabric is then passed through the edge control system and rolled fabric is wrapped with smooth edges. If the fabric is to be made of markers, the fabric continues under the platform without entering the winding cylinders and is taken as a paste in the fabric shaking mechanism.
Edge Control System: Sensors that follow the fabric edge allow us to obtain smoothly wound fabric rolls by moving the winding system to the right or left according to the arrival of the fabric.
Roll Winding Hardness: Provides the fabric to be wrapped tightly or loosely on the roll. It can be controlled manually with the help of an electronic button.
Fabric End: When the fabric in the fabric hopper runs out, the machine automatically stops. The fabric is prevented from leaving the machine in an uncontrolled manner.
Tension: It is used to control the tension of the fabric as it passes through the machine. There are 2 pieces on the machine. It is controlled automatically.
Control Panel: It is controlled by the industrially illuminated button and switches on the front of the user.
Lighting: There are different lighting sources that can easily show errors.
Air: By applying compressed air to the point where the fabric enters the winding, if there is an unopened edge, it is opened completely.
Driven Rollers: Driven rollers on the machine are 5 ”diameter natural rubber wrapped.
Spiral Openers: 76mm in diameter. 5mm diameter aluminum wire is wrapped on it.
Motors: 10 AC motors are used in the machine.
Motor Drivers: 8 AC motor drivers are used in the machine.
Meter Measurement: Meter measurement can be made with 1cm accuracy. Meter information can be transferred to PC or similar devices via serial port.
Paint: Machine body RAL7035 (Cream), circumference RAL5012 (Blue). Static powder coating.

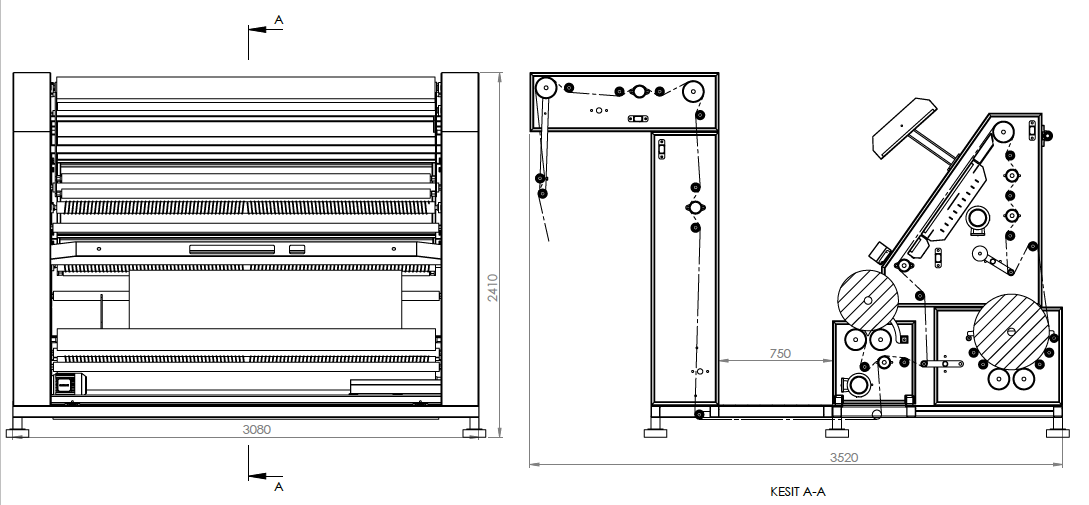

Dimensions: 3100 x 2350 x 3700 mm
Bid Form Form
2nd
Assembly: Machine assembly and setup are done by us. Machine transportation fee, food, travel and accommodation fees for out-of-city assembly belong to you.
Warranty: 1 year warranty against manufacturing defects.
GENERAL FEATURES
Wholesale ball wrap
Wholesale to shake
UV light
Raw, Dyed, Finished fabric wrapping and Quality control
Straight edge winding with edge photocell
Stop at the end of the fabric with the fabric end photocell
Opening the wrinkles with spiral openers
With the help of air, the edges are fully opened and wrapped
Healthy fabric control with upper and lower lighting tables

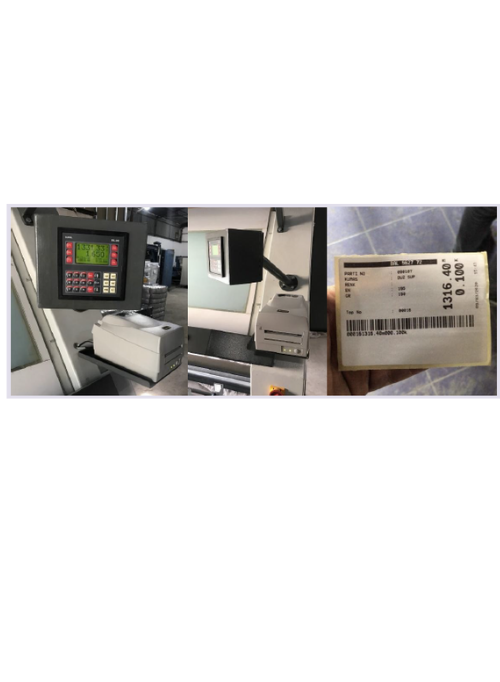

Feature of getting weight and meter information
Measuring meters with 0.2% accuracy
Roll and marker fabric entry feature
Manually adjusting the roll winding stiffness
Automatic fabric tension control (tension)
Stopping at the desired meters
