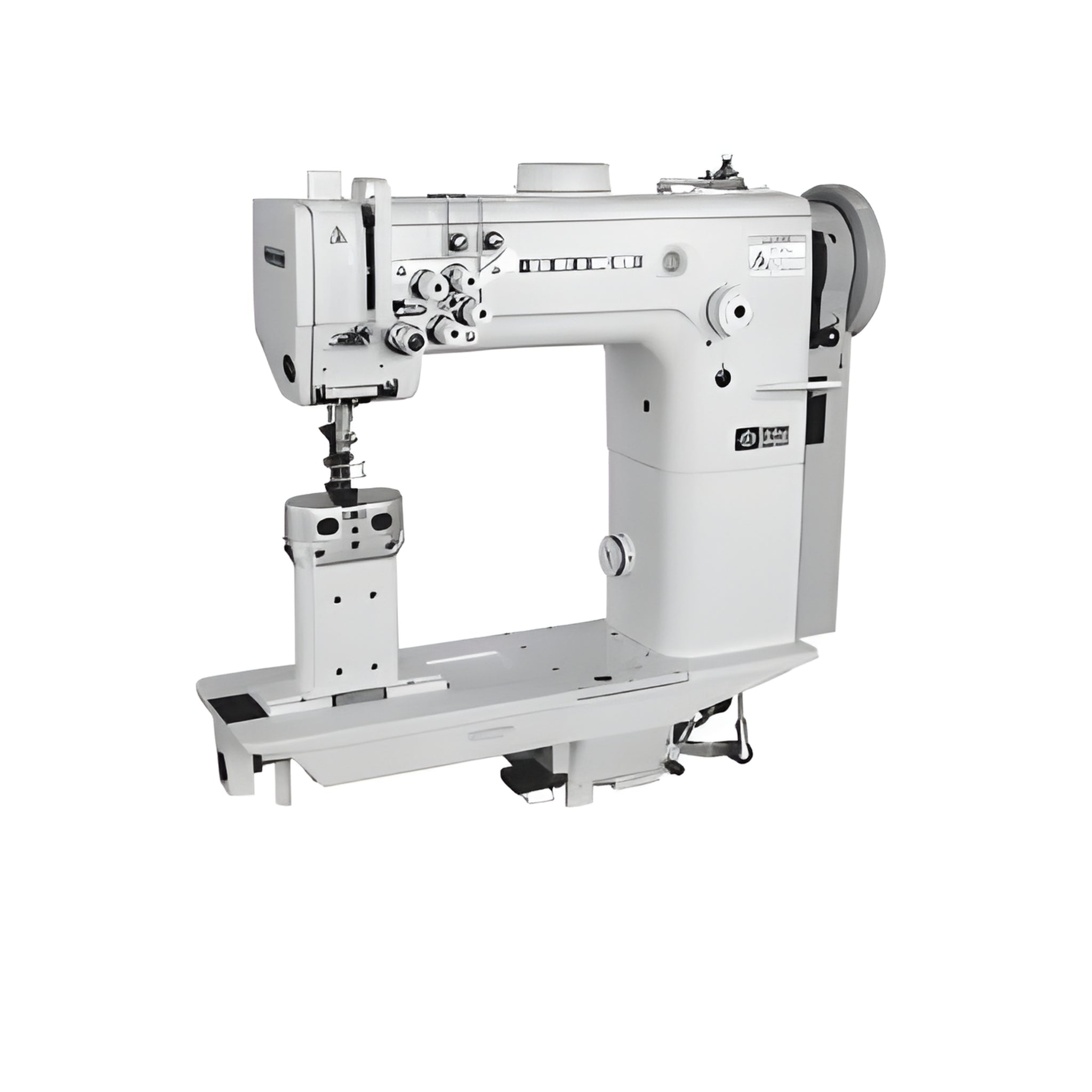

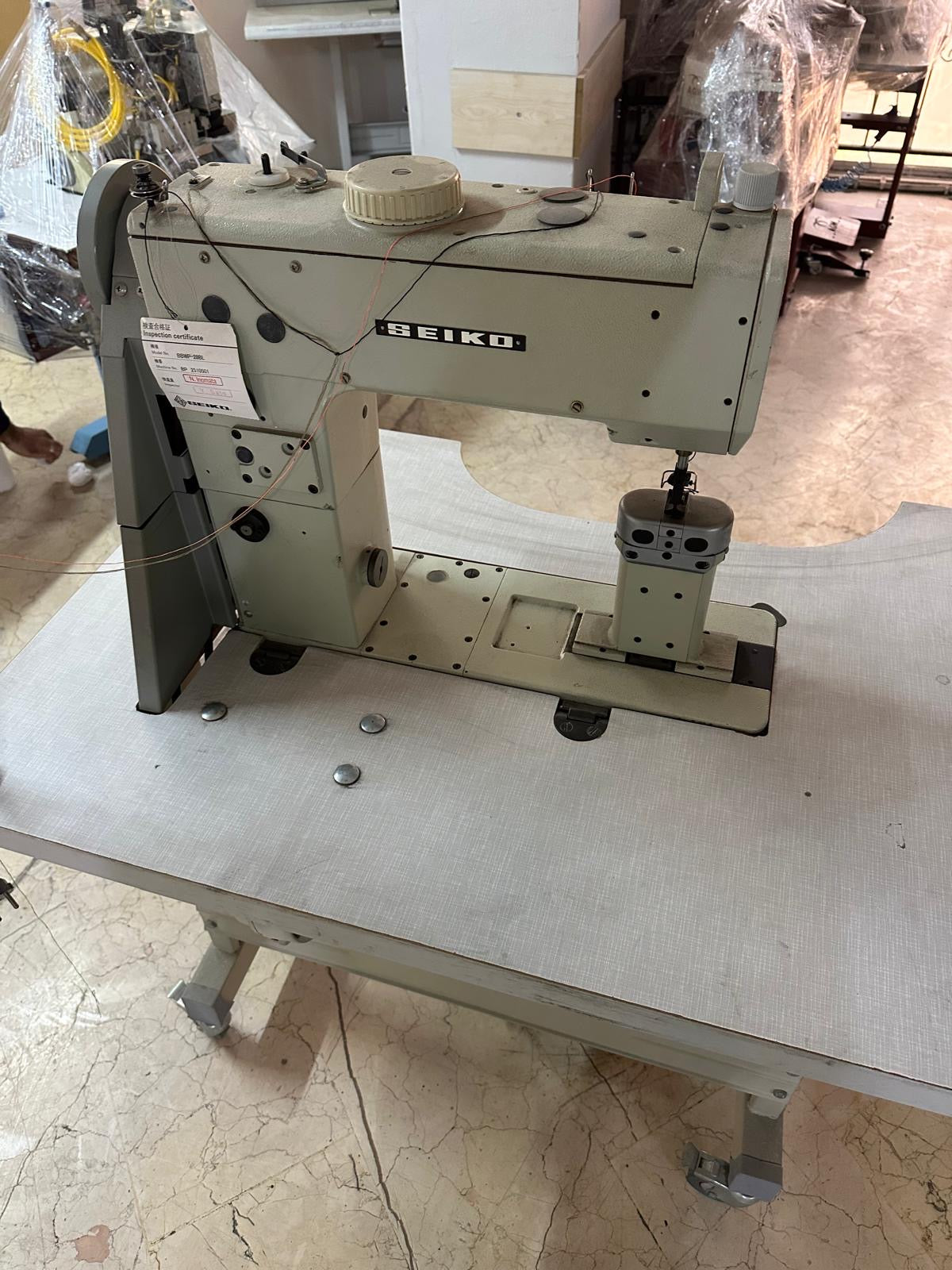

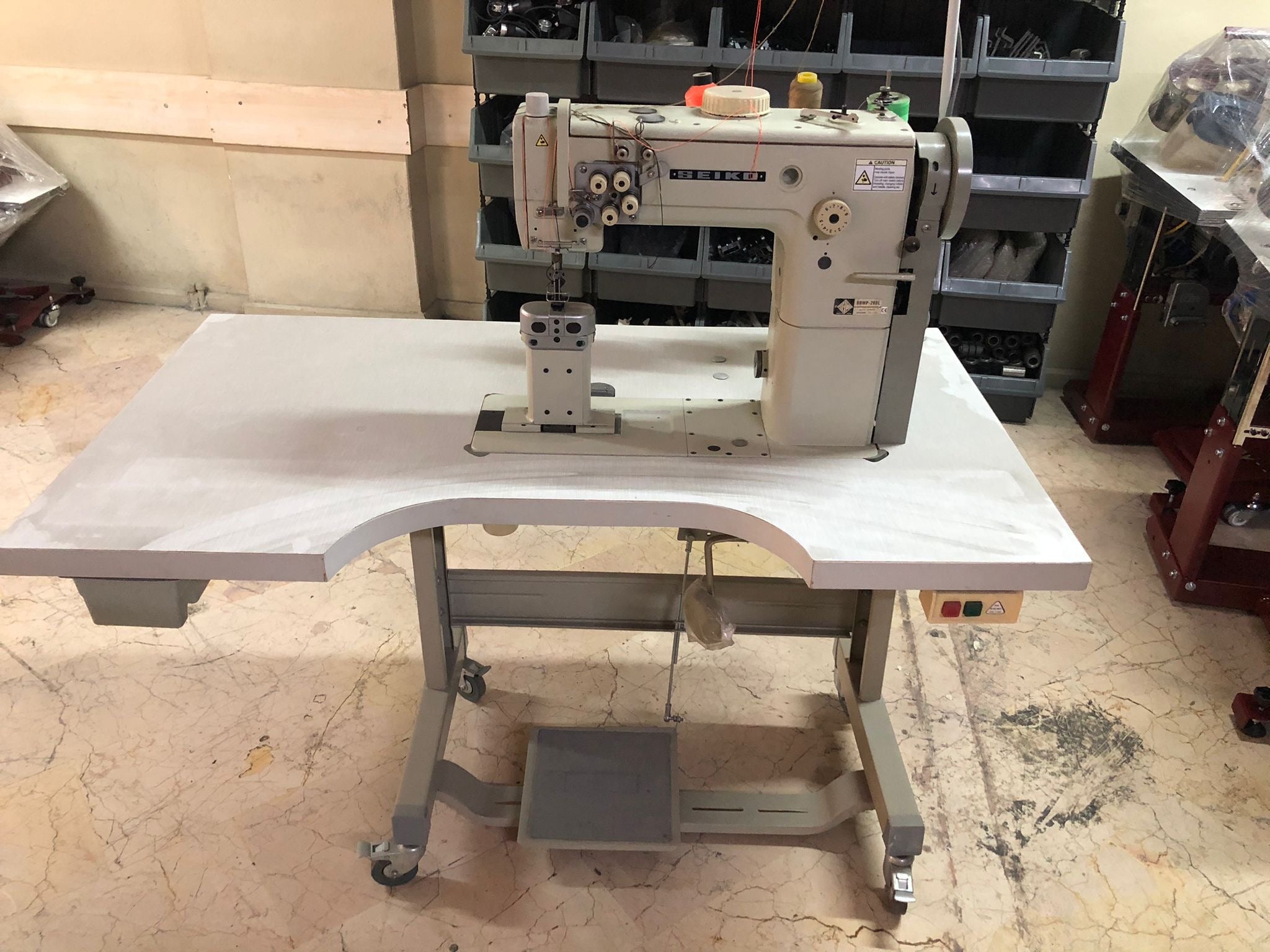

Seiko BBWP-28BL Post-Bed Walking Foot Industrial Sewing Machine
GET PRICE & CONFIRM FIT
⚠️ Avoid ordering the wrong part — confirm before you buy
Submit your request using the form below and our team will quickly confirm pricing, availability, and shipping options.
Looking for multiple sewing machine parts?
Send us your parts list - our team will help you source them quickly at competitive pricing.
Fast response for urgent spare parts requests.

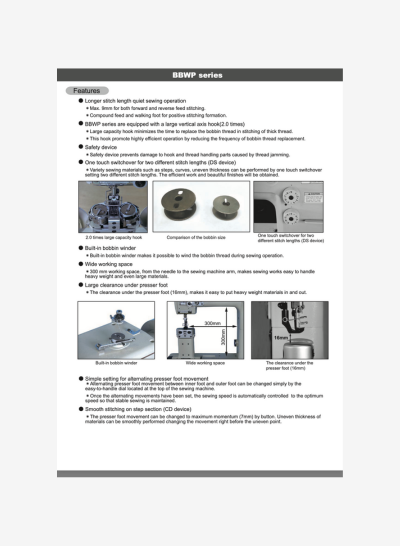

Highlights (Bullet Points):
-

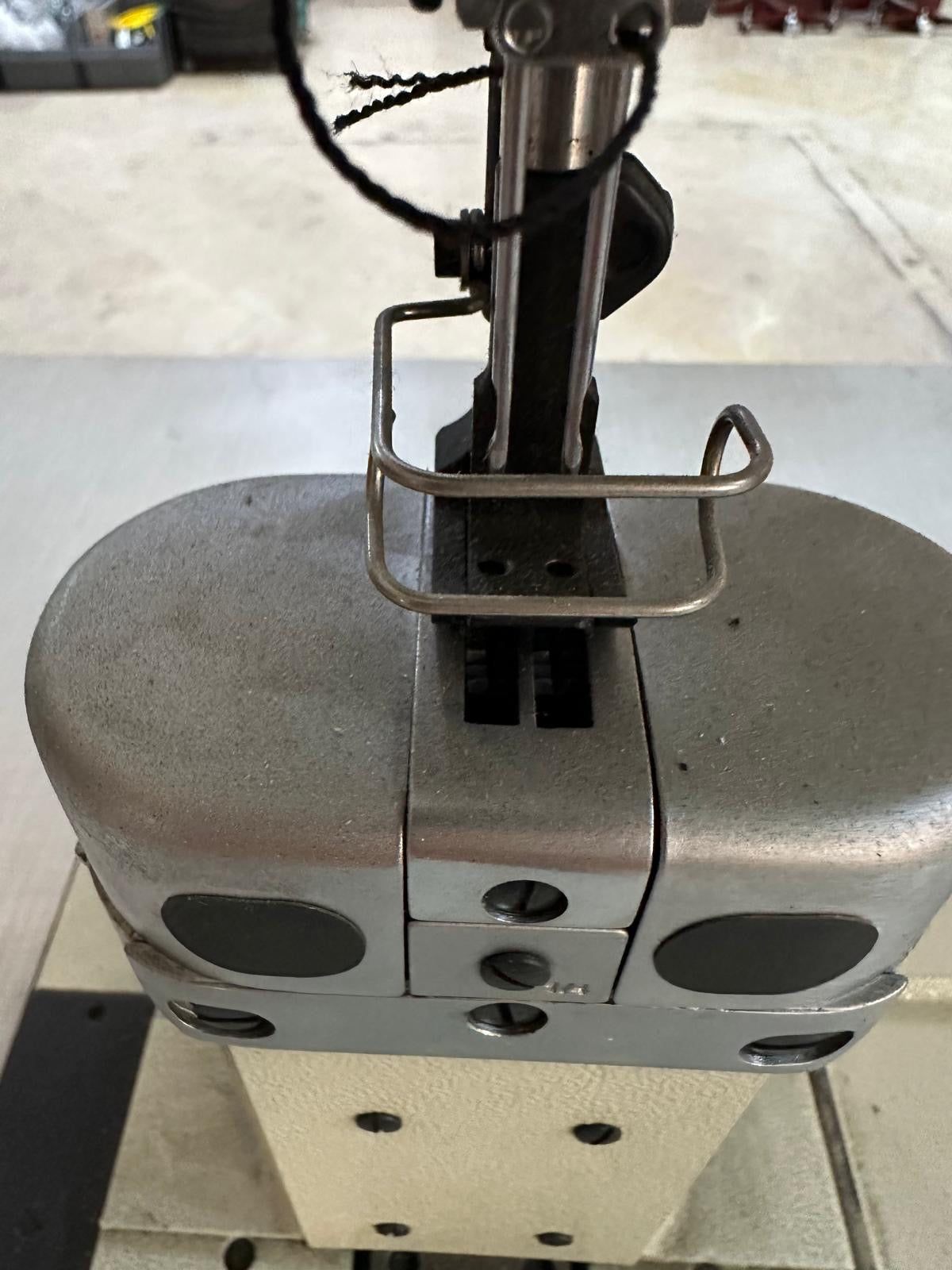

Post-bed, compound feed & walking foot system
-
Two-needle lockstitch with large vertical axis hook
-
Reverse stitch, automatic back tack, optional presser foot lift
-
Large capacity hook (2.0×) for reduced bobbin changes
-
Wide working space: 300 mm clearance
-
Clearance under presser foot: 16 mm
-
Showroom machine – unused, excellent condition
-
Includes head + motor only (no table/stand)
Description (Long Form):
The Seiko BBWP-28BL is a high-performance post-bed industrial sewing machine designed for heavy-duty applications. Equipped with a compound feed and walking foot mechanism, it delivers stable and precise stitching on leather, vinyl, synthetics, laminated and coated materials.
With a large vertical axis hook (2.0× capacity), the BBWP-28BL reduces downtime from frequent bobbin changes. Its reverse stitch, auto back tack, and optional presser foot lift make it ideal for high-productivity environments.
This machine offers:
-
Working space: 300 mm clearance from needle to arm
-
Presser foot clearance: 16 mm, allowing easy handling of thick materials
-
Built-in bobbin winder for continuous operation
-
Stitch length: up to 9 mm (forward and reverse)
-
Max speed: 2,500 spm
Applications:
-
Leather goods: bags, belts, shoes
-
Automotive upholstery & interiors
-
Camping gear, tents, tarpaulins, covers
-
Umbrellas, handbags, luggage, travelware accessories
-
Outdoor clothing, sportswear requiring heavy materials

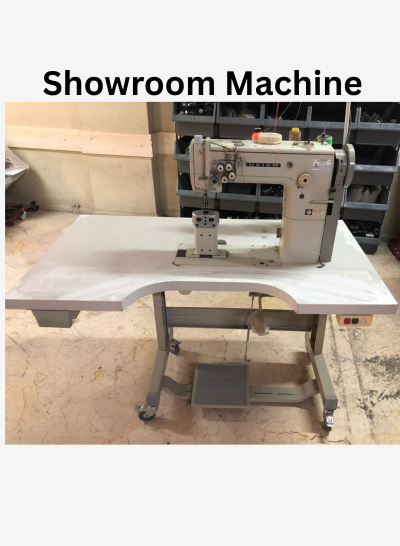

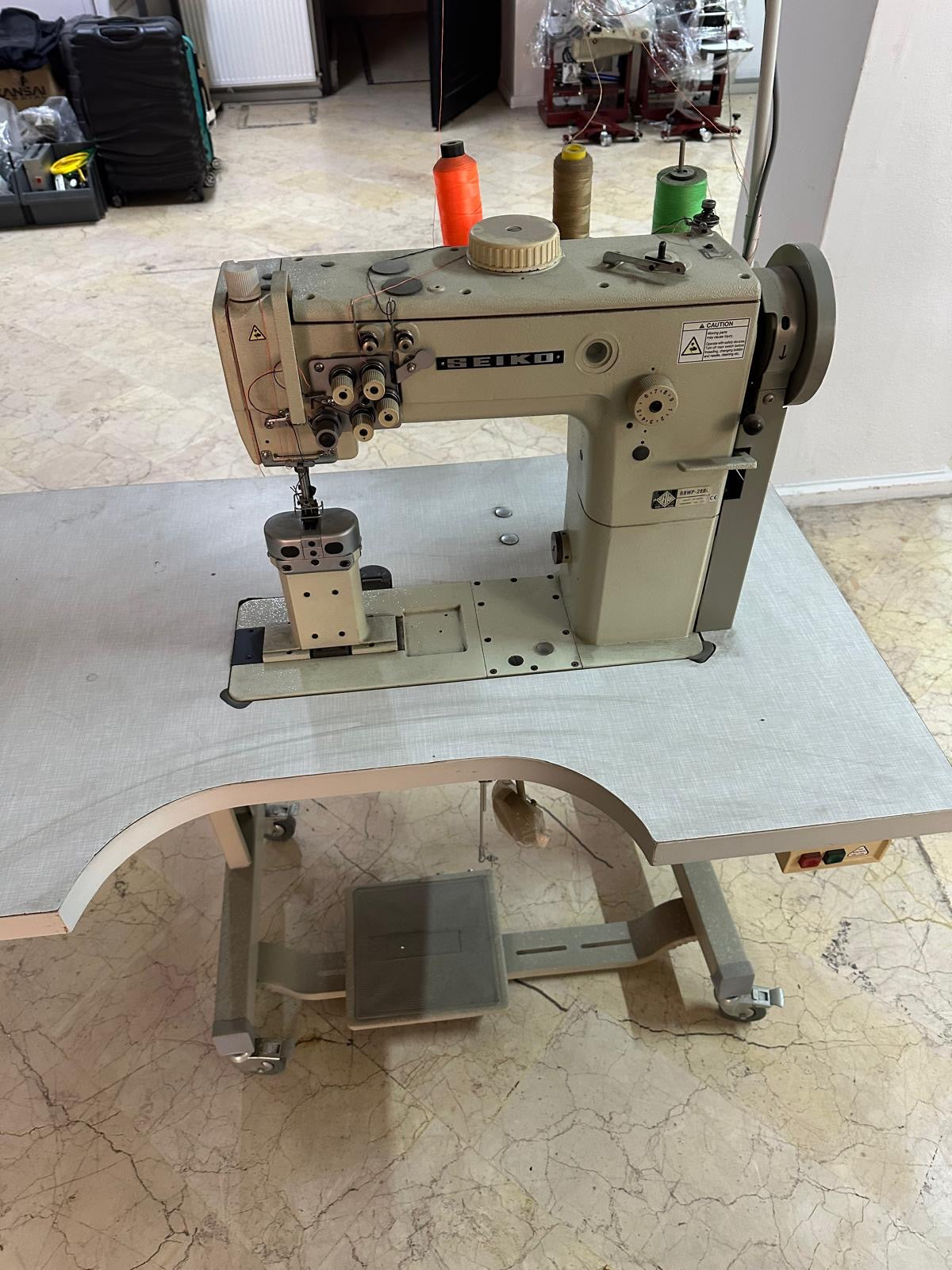

This is a showroom machine – unused but stored for display. Condition is like new, tested and functional.
⚠️ Note: This listing includes machine head + motor only (no table/stand).

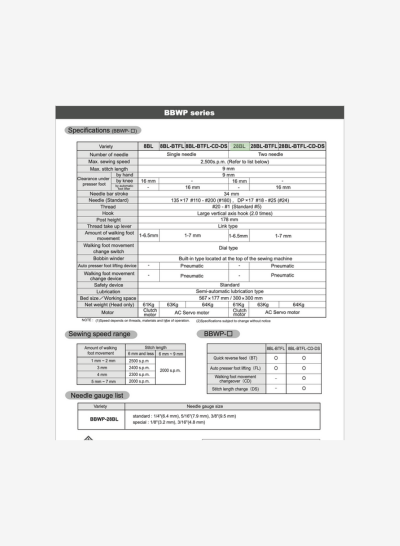

| Feature | Specification |
|---|---|
| Model | Seiko BBWP-28BL |
| Needles | 2 |
| Max Speed | 2,500 spm |
| Max Stitch Length | 9 mm |
| Presser Foot Lift | 16 mm |
| Needle Bar Stroke | 34 mm |
| Hook | Large vertical axis hook (2.0× capacity) |
| Thread | #20 – #1 (Standard #5) |
| Working Space | 300 × 300 mm |
| Bed Size | 567 × 177 mm / 300 × 300 mm |
| Lubrication | Semi-automatic |
| Net Weight (Head Only) | 64 kg |
| Motor | AC Servo motor |
