Home » Seiko LSWNH Series Long Arm - 20 Inch Long Arm and High Arm, Large Vertical Axis Hook, Compound Feed And Walking Foot, Reverse Stitch, Lockstitch Sewing Machine

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Seiko

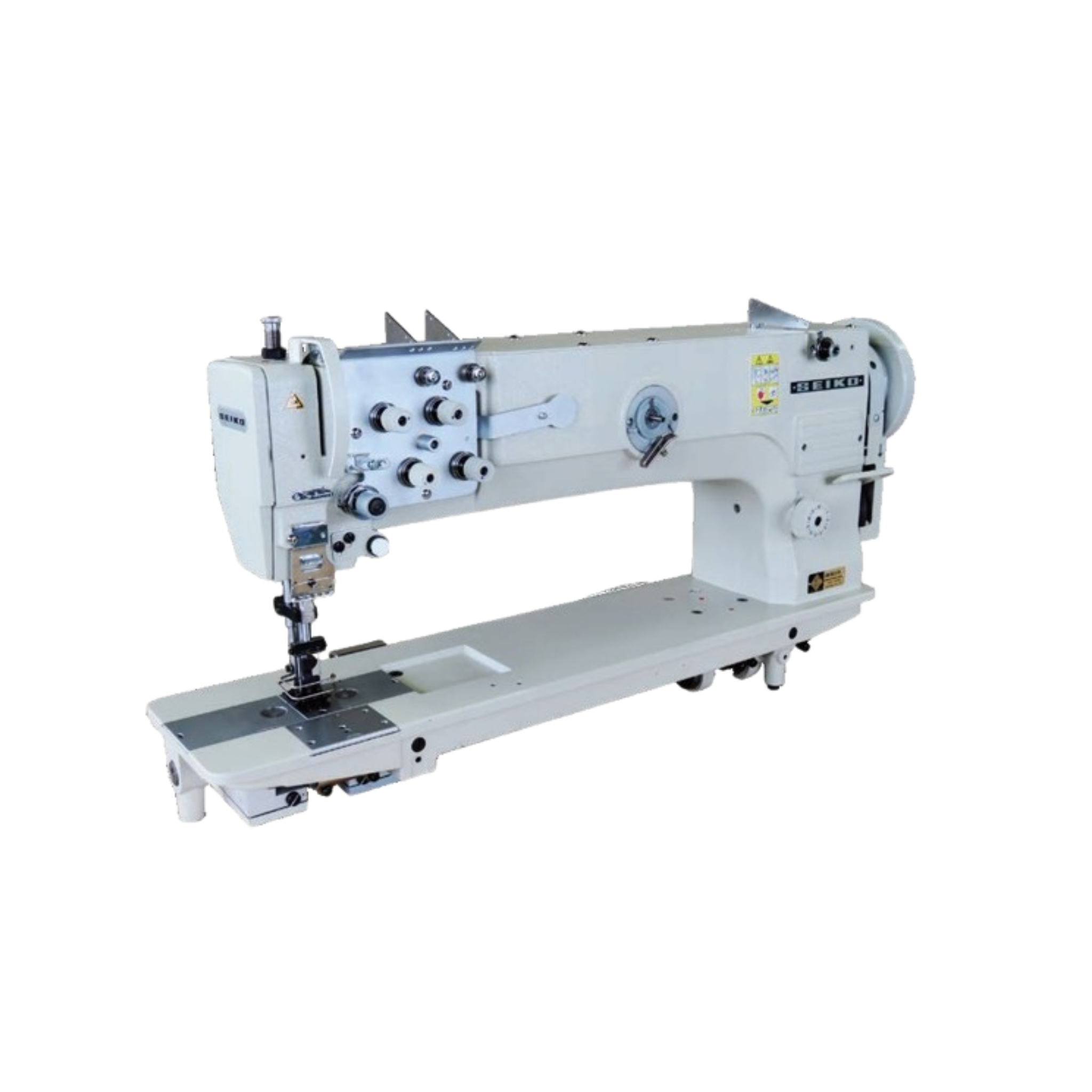

Seiko LSWNH Series Long Arm - 20 Inch Long Arm and High Arm, Large Vertical Axis Hook, Compound Feed And Walking Foot, Reverse Stitch, Lockstitch Sewing Machine

SKU: LSWNH-28BL-20-1-BTFL
GET PRICE & CONFIRM FIT
⚠️ Avoid ordering the wrong part — confirm before you buy
Submit your request using the form below and our team will quickly confirm pricing, availability, and shipping options.
Looking for multiple sewing machine parts?
Send us your parts list - our team will help you source them quickly at competitive pricing.
Fast response for urgent spare parts requests.

Not sure if this part fits your machine ? Send us your machine name plate, or a photo we’ll help you confirm before ordering.Or email us your photo: order@empenzo.com

Variety LSWNH-28BL-20-1-BTFL
Max.sewing speed 1,500s.p.m.
Max.stitch length 10mm
Clearance under
presser foot		 16mm(by pedal)
8.5mm(by hand)
Needle bar stroke 37mm
Needle(Standard) DPx17 #22
135×17 #140
Hook Large vertical axis hook (2.0times)
Amount of walking
foot movement		 3-6mm(Standard 4mm)
Lubrication Semi-automatic lubrication type
Working space 516×150mm
Variety
  • LSWNH-8BL-20-1
    Single needle, 20inch long arm.
  • LSWNH-8BL-20-1-BTFL
    Single needle, automatic back tack,automatic presser foot lift, 20inch long arm.
  • LSWNH-8BL-20-1-TA-BTFL
    Single needle, automatic back tack,automatic presser foot lift, for thick thread, 20inch long arm.
  • LSWNH-28BL-20-1
    Two needle, 20inch long arm.
  • LSWNH-28BL-20-1-BTFL
    Two needle, automatic back tack,automatic presser foot lift, 20inch long arm.
  • LSWNH-28BL-20-1-TA-BTFL
    Two needle, automatic back tack,automatic presser foot lift, for thick thread, 20inch long arm.
Applications
  • For sewing medium to heavy weight materials such as leather, vinyl, synthetics and laminated and coated materials.
  • Suitable for sewing such as tents, covers, sails, awnings, tarpaulins, automobile upholstery.
