Transfer Printing Pressings

Transfer Printing Pressings

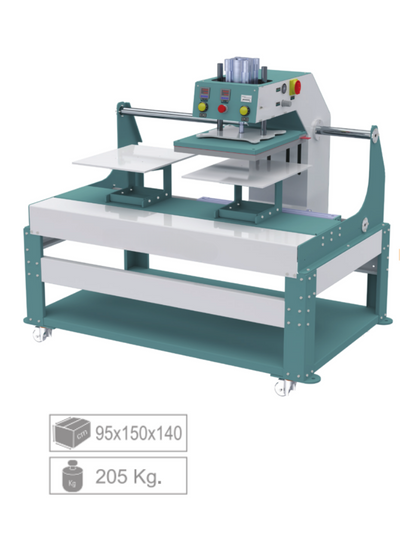

40*50 CM. Double Head Pneumatic EPZ-H504-TR-2

About product

The pneumatic system works with air.
Thanks to its double mold feature, it minimizes time loss.
While doing a print job, you can prepare new prints on another plate.
Precise temperature control is provided with the digital thermostat.
With the digital seconds counter, you can set it to the desired seconds and determine how many seconds of pressure will be applied.
It has a print adjustment feature.
It has a double plate and prints vertically by moving left and right automatically.

Features

ELECTRIC POWER: 220V & 380V
MOLD HEATER: 4 Kw
TABLE DIMENSIONS: 40x50 cm
AIR CONSUMPTION: 35 lt/d
DIMENSIONS E.B.Y. : 95 X 150 X 140 cm.
WEIGHT: 205 Kg.

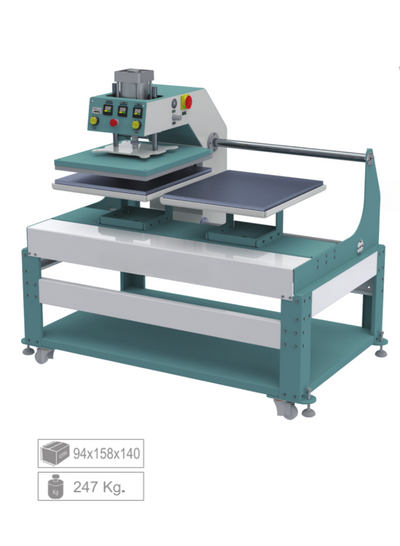

Moveable Head Full Automatic Steam System Stone Heat Transfer Printing Machine 50*70 CM. Double Pneumatic EPZ-H505-TR

Description:

It works with 220V electricity.

There is a homogeneous type in the aluminum upper mold with resistance heating.

Top mold resistance power is 4 kW.

Precise temperature control with digital thermostat in the magazine.

Pneumatic pressure adjustment can be made for any type of fabric.

It has a robust construction and is ergonomic to use.

It complies with CE norms.

Special European silicone.

The printing time is time adjusted and it is turned on automatically.

It has two lower bucks and the upper buck presses right-left automatic sewing.

Steam capacity 20 kg / h.

Put it in 100 jobs.

It is ready in about 20 minutes.

Working research is 4 bars.

It is easily transported thanks to its wheels.

Its resistance power is 2X7,5 kW.

TECHNICAL SPECIFICATIONS:

RESISTANCE POWER: 19 KW

BONDING TIME: 5 - 60 SEC

PRESSURE 0-10 KG

MAX TEMPERATURE 0- 200 ° C

VOLTAGE 380V AC 50 HZ

DIMENSIONS 100 x 180 x 170 cm

WEIGHT 400 kg

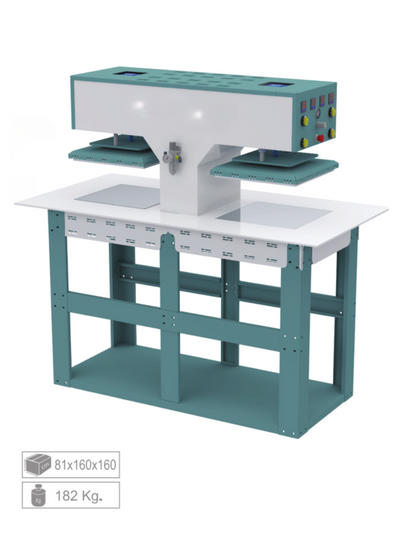

 40x40 CM Embossed Printing Machine  EPZ-H540-TR

Fabric Embossing machine I Size: 400*400 mm I Made in Turkiye ISize: 400*400mm

PID controlled thermostats are used for homogeneous heat distribution in our machine that prints embossing on fabric. The pressure regulator used to prevent marks on the fabric is placed on the control panel. It is designed to achieve maximum efficiency with minimum energy.

● 380 degree moving wheels for ease of transportation.

● Digital p.i.d. for homogeneous heat distribution. controlled thermostats

● Aluminum alloy tables resistant to wear.

● Regulator for precise pressure control.

● Special stainless resistances.

● Automatic. Water trap and lubricant conditioner system

● Panel assembly with disassembly system for dismantling the lower stand and the upper part

● Made from first quality materials.

Table Heater: 3500 W*4 pcs.

Air Pressure: 6-8 BAR
Table Dimension: 40×40 CM
Operating Voltage: 380 W
Dimensions: 81*160*160
Weight: 182 KG

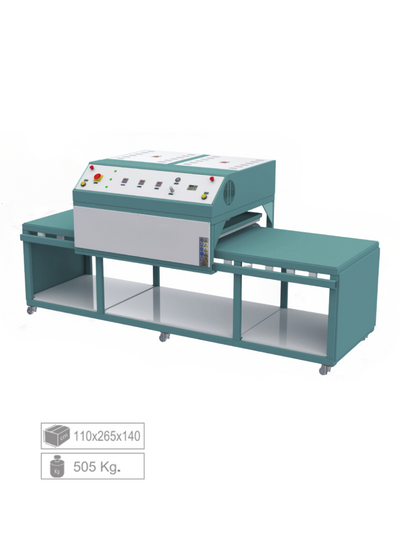

80*110 CM. Double Pneumatic  EPZ-H508-TR

About product
The pneumatic system works with air.
Thanks to its double mold feature, it minimizes time loss.
While doing a print job, you can prepare new prints on another plate.
Precise temperature control is provided with the digital thermostat.
With the digital timer, you can set it to the desired seconds and determine how many seconds of pressure will be applied.
It has a print adjustment feature.
There is a counter system that shows how many prints are made.
It has a double plate and prints by moving left and right automatically.

Features
Double Tray System
Digital Heat Setting
Cooling Fans
Emergency Stop System
Pneumatic Press Adjustment
Stainless Resistance
ST 37 Quality Sheet
Digital Time Setting
Pressure indicator
Digital Meter System
Automatic Lubrication Conditioner
