The waistband attaching sewing automat KM 921 AR-T3 chain stitch is a flexible unit a high level of efficacy and quality output. The daily capacity of the machines is 1700-2500 pcs/8 hours. The innovative transport system allows the machine to perform on all type of fabric thickness from stretch denim fabric to cotton denim fabric.

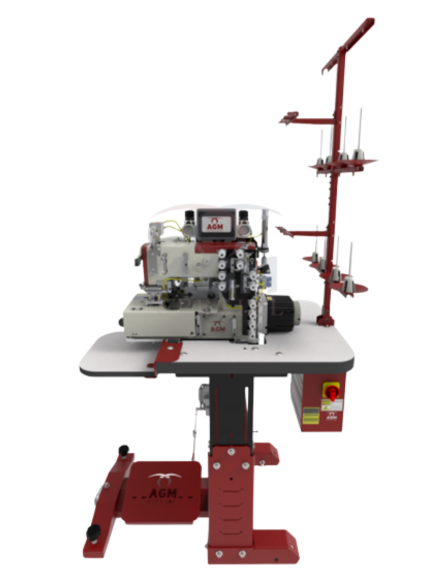

AGM Special Straight and Curved Waistband Automat Machine
Couldn't load pickup availability
Ready to work out of the box!
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Got questions?
Feel free to get in touch
Ask an expert!

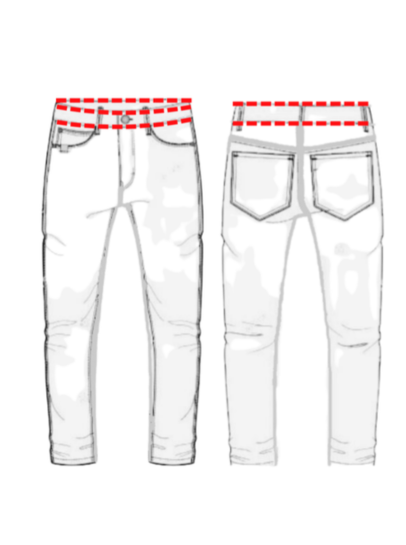

Waistband Attaching/Sewing Automat For Jeans
THE STAND-ALONE NEEDLE SUPPORT SYSTEM
The stand-alone needle support system does not require additional needle support adjustment when the stitch length is changed.(PATENTED)
ADJUSTABLE CUTTING DEVICE
Automatic cutting programm can be adjustable easily on panel
PROGRAMMABLE SKIP STITCH OPTIONS
The skip stitch can be adjusted seperately(left-right) according to waistband design
SPECIAL DESIGN 6 NEEDLE CHAIN STITCH MACHINE HEAD (PATENTED)
The machine head specially designed for AGM Special with 1/8 needle distance.
TECNICAL FEATURES
- The stand-alone needle support system does not require additional needle support adjustment when the stitch lenght is changed.(PATENTED)
- Needle feed 6 needle chain stitch sewing machine head specially designed for AGM Special.(PATENTED)
- Software fully developed by AGM Special.
- Left and right independently adjustable skip stitch feature.
- Additional pulling roller device behind the blade.
- Automatic cut-off device on enter and exit.
- Special design guided presser foot.
- Upper and lover rubber roller for curved and flat form waistbands.
- Automatic double tension mechanism that prevents sharp chain stitch effects.
- Easy to use touch screen with English, Turkish and Spanish languages option.
- Oil tank drain mechanism for an easy oil change.
GAUSET OPTIONS.
Standard Gauge Set : 1/8-1/8-1-1/8-1/8
Optional Gauge Set :
Needle Distance : Minimum 1/8 ” , Maksimum 1/4 “
Needle No : Minimum 1 , Maksimum 6
Gauge Set Size : Minimum 1 ” , Maksimum 1 3/4 “
TECHNICAL SPECIFICATIONS
Machine Head : | Needle feed 6 needle chain stitch. |
Motor : | Direct drive servo electronic motor. |
Table and Stand : | Adjustable L type. |
Skip Stitch System : | Independently adjustable left and right stitch skipping feature. |
Cutting Device : | Automatic cut-off device on enter and exit. |
Foot Lifter Device : | Automatic. |
Extra Pulling Device : | Additional pulling roller device behind the blade. |
Needle Cooling Device : | Extra strong needle cooling. |
Presser Foot : | Special designed guided pressure foot by AGM Special |
Roller Device : | Upper and lover rubber roller device for both curved and standard flat form waistbands. |
Puller Adjustment : | Easy to change puller adjustment system. |
Oil Tank Drain Mechanism : | Oil tank drain machanism for an easy oil change. |
Roller Air Pressure System : | Extra air pressure system on roller. |
Tension Mechanism | Automatic double tension mechanism that prevents sharp chain sticth effects. |
Touch Screen | Easy to use touch screen with english , turkish and spanish languages option. |
Blade Cutting Range | 55 mm. |
Maximum Speed : | 3200 rpm. |
Daily Capacity : | 1700-2500 pcs/8 hours. |
Net Weight : | 98 kg. |
Gross Weight : | 125 kg. |
Dimensions | 60x100x130 cm. |
Air Pressure : | 6 bar. |
Voltage : | 220-240v 60Hz |
Power : | 2400-2800w |
