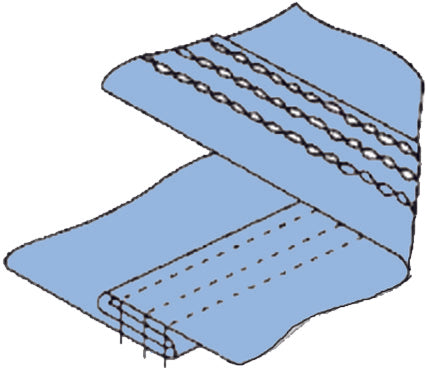

The unique feeding system enables to handle all kind of fabric thicknesses , ranging from 8 ounce elastan denim fabric to 14 ounce full cotton denim fabric with ease , making it an ideal choice for manufacturers who work with a different range of materials.

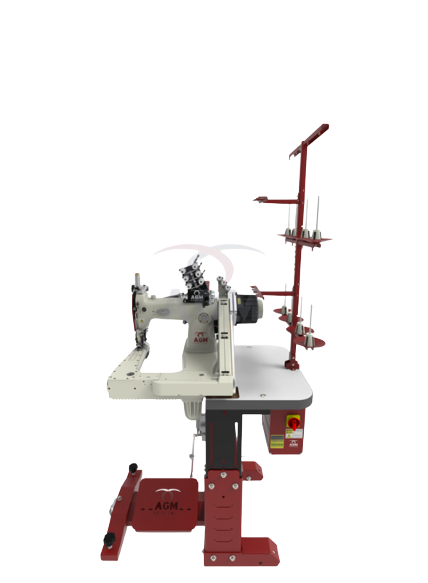

AGM Special Electronic Feed Off The Arm Machine For Heavy Materials
Couldn't load pickup availability
Ready to work out of the box!
All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!
Got questions?
Feel free to get in touch
Ask an expert!
FULL OIL LUBRICATION SYSTEM GEARBOX(PATENTED)
Full oil lubrication transmission system designed by AGM Special R&D department.

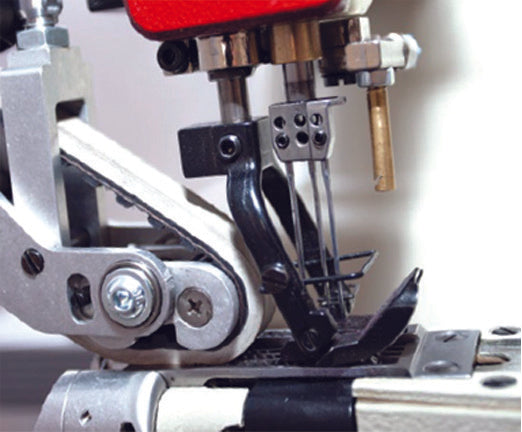

PULLING DEVICE
Movable roller puller system that prevents overlapping the seem and puckering problems in joint areas

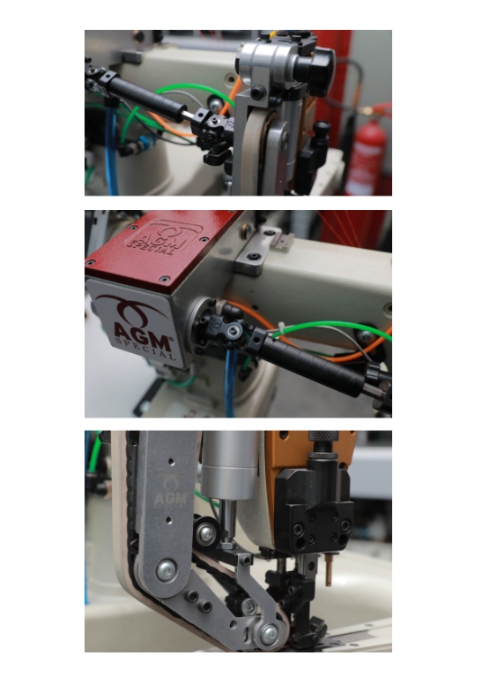

THREAD CUTTING UNIT
ZD 1001 model automatic cutting unit designed by AGM Special.
PERFECT FULL OIL LUBRICATION SYSTEM
Provides high performance without any oil leakage.
TECNICAL FEATURES KZ 1060 JL-T3 ZD 1001 WITH KNIFE
- Full oil lubrication gearbox transmission system.(PATENTED)
- Movable roller puller system that prevents overlapping the seem and puckering problems in joint areas
- ZD 1001 model long lasting thread cutting system designed by AGM Special.(PATENTED)

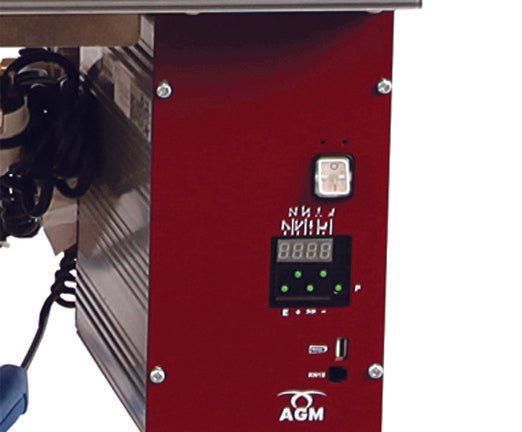

- Direct drive servo electronic motor.
- Adjustable L type table and stand.
- Automatic foot lifter device.
- Extra strong needle cooling system.
- Special designed guided pressure foot by AGM Special
- Automatic double tension mechanism that prevents sharp chain sticth effects.
- 3 needle chain stitch machine head with full oil lubrication system.
TECNICAL FEATURES KZ 1060 JL-T3 WITHOUT KNIFE
- Full oil lubrication gearbox transmission system.(PATENTED)
- Movable roller puller system that prevents overlapping the seem and puckering problems in joint areas
- Direct drive servo electronic motor.
- Adjustable L type table and stand.
- Automatic foot lifter device.
- Extra strong needle cooling system.
- Special designed guided pressure foot by AGM Special
- Automatic double tension mechanism that prevents sharp chain sticth effects.
- 3 needle chain stitch machine head with full oil lubrication system.
OPTIONS
GUAGE SET OPTİONS
Standard Gauge Set : 1/8″-1/8″ |
Needle Distance : Minimum 1/8 ” , Maksimum 1/4 “ |
Needle No : Minimum 1 , Maksimum 3 |
Gauge Set Size : Minimum 1/8 ” , Maksimum 1/4 “ |
Optional Gauge Set: |
1/8-1/8 Slim Gauge (6.35mm , 3 needle) |
3/16 Gauge Set (4.76mm , 2 needle) |
9/32 Gauge Set (7.14 mm , 3 needle) |
5/32 Gauge Set (4 mm , 2 needle) |
TECHNICAL SPECIFICATIONS
Machine Head : | 3 needle chain stitch. |
Motor : | Direct drive servo electronic motor. |
Table and Stand : | Adjustable L type. |
Foot Lifter Device : | Automatic. |
Thread Cutting Unit : | ZD 1001 model designed by AGM Special. |
Gearbox : | Full oil lubrication transmission system. |
Needle Cooling Device : | Extra strong needle cooling. |
Presser Foot : | Special designed guided pressure foot by AGM Special |
Pulling Device : | Movable roller puller system that prevents overlapping the seem and puckering problems in joint areas |
Tension Mechanism | Automatic double tension mechanism that prevents sharp chain sticth effects. |
Maximum Speed : | 5000 rpm. |
Voltage : | 220-240v 60Hz |
Power : | 2400-2800w |
Air Pressure : | 6 bar |
Air Consumption : | 3 lt / min. |
Net Weight : | 98 kg. |
Gross Weight : | 125 kg. |
Dimensions | 60x100x130 cm. |
