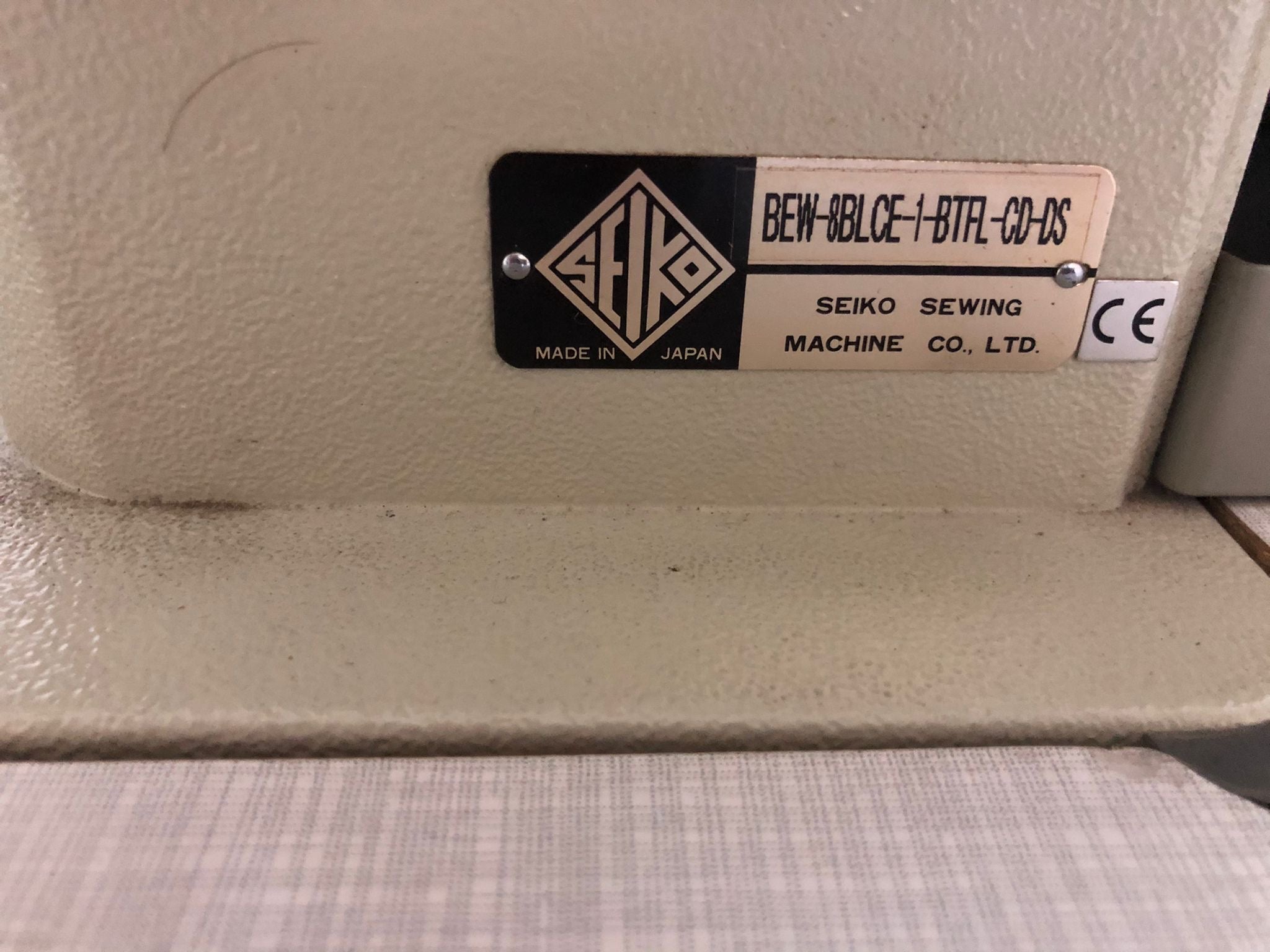

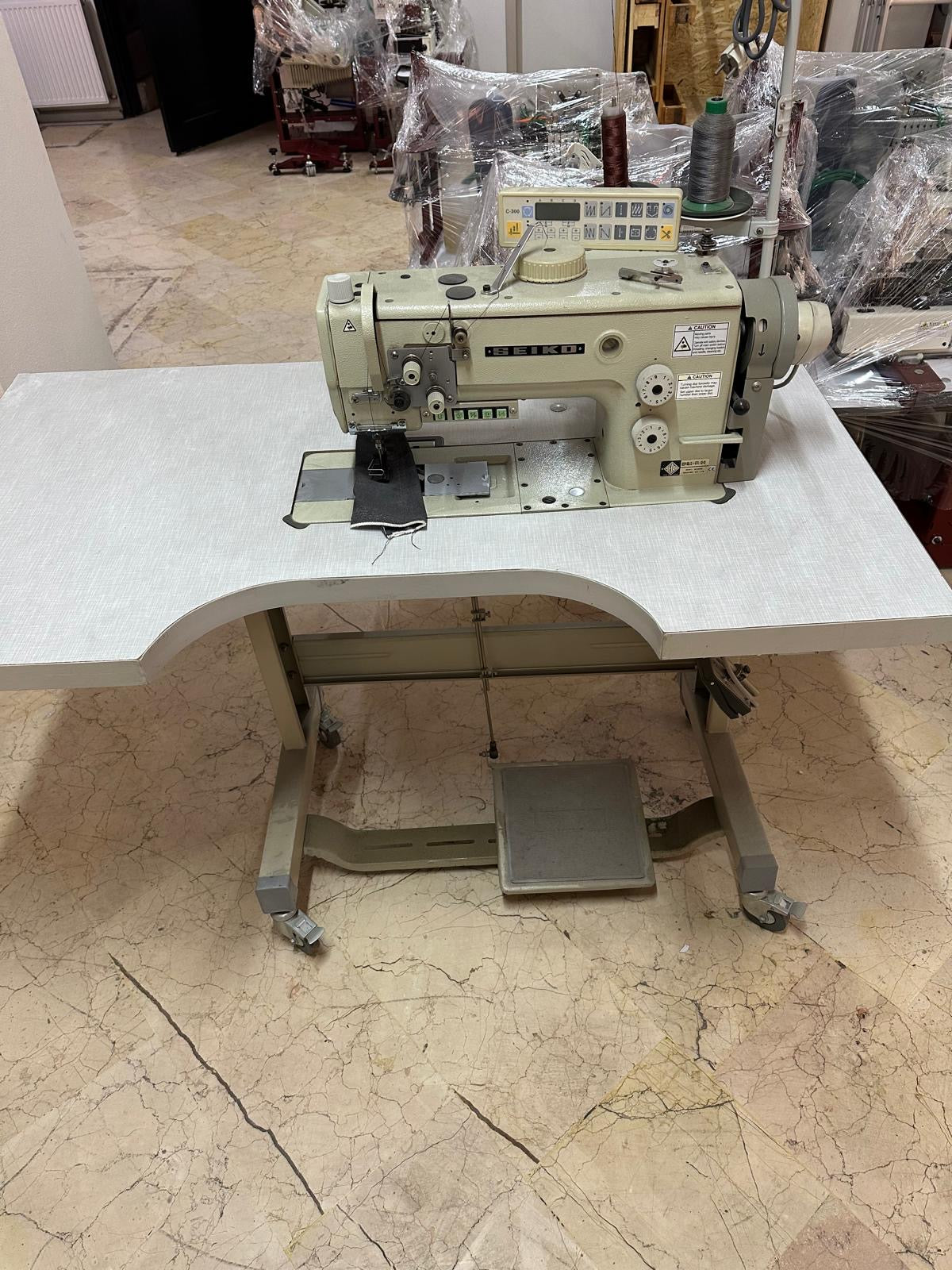

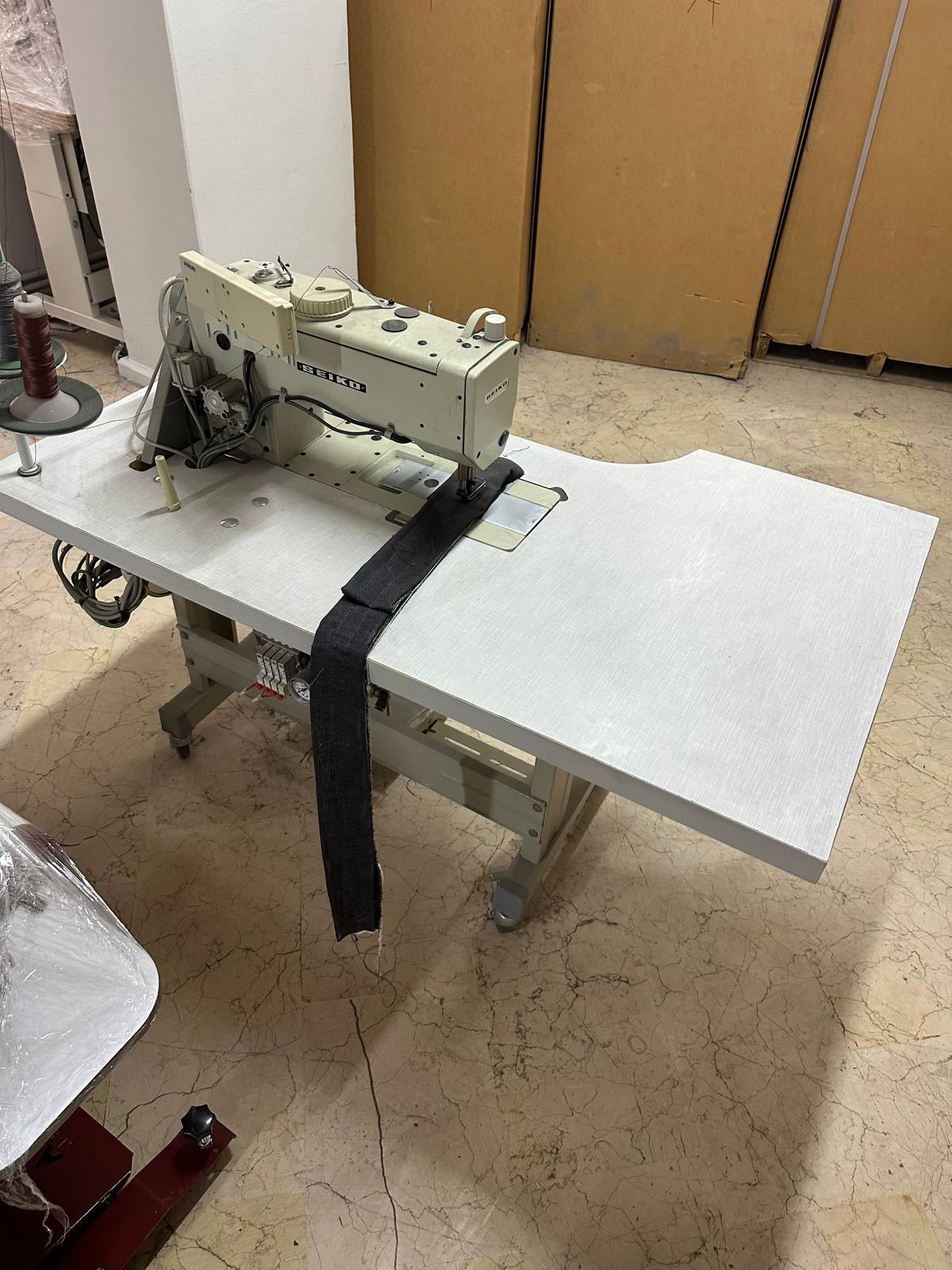

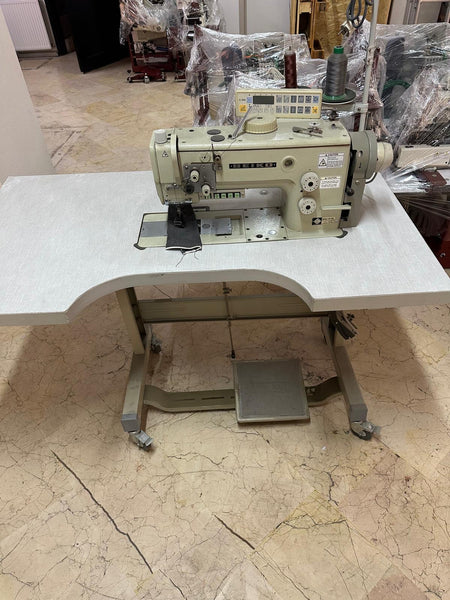

Seiko BEW-8BLCE-1-BTFL-CD-DS Walking Foot Lockstitch Industrial Sewing Machine
GET PRICE & CONFIRM FIT
⚠️ Avoid ordering the wrong part — confirm before you buy
Submit your request using the form below and our team will quickly confirm pricing, availability, and shipping options.
Looking for multiple sewing machine parts?
Send us your parts list - our team will help you source them quickly at competitive pricing.
Fast response for urgent spare parts requests.
-

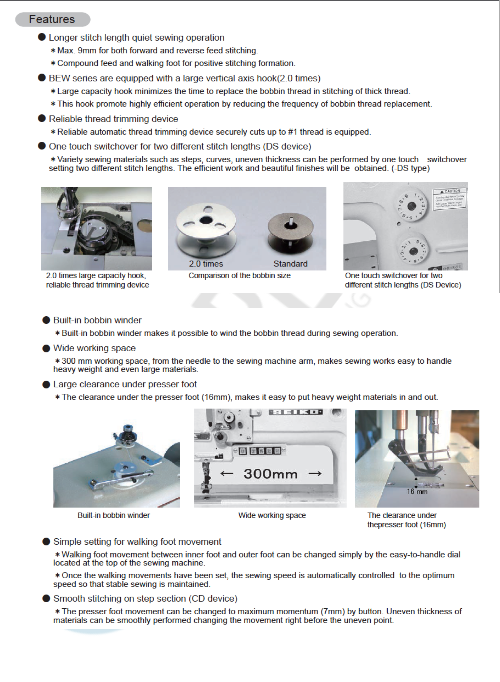

High-speed flat-bed walking foot lockstitch machine
-
Compound feed & walking foot system for stable stitch formation
-

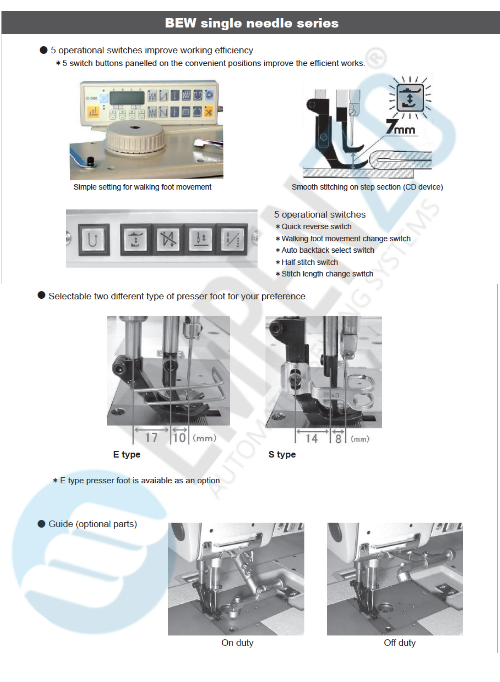

Automatic back tack, presser foot lift, climbing device, dual stitching device
-
Thread trimmer and reverse stitch function
-
Large vertical axis hook (2.0× capacity) → less downtime for bobbin changes
-
Clearance under presser foot: 16 mm (auto lift)
-
Built-in bobbin winder for efficiency
-

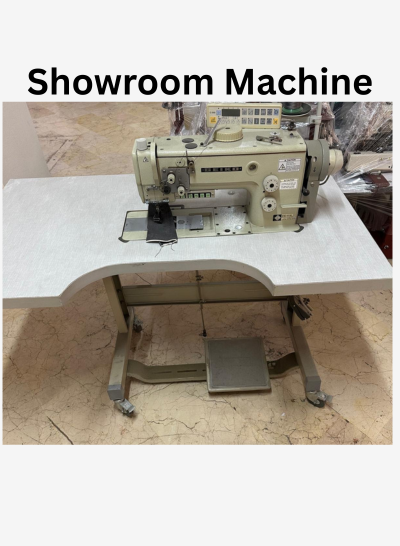

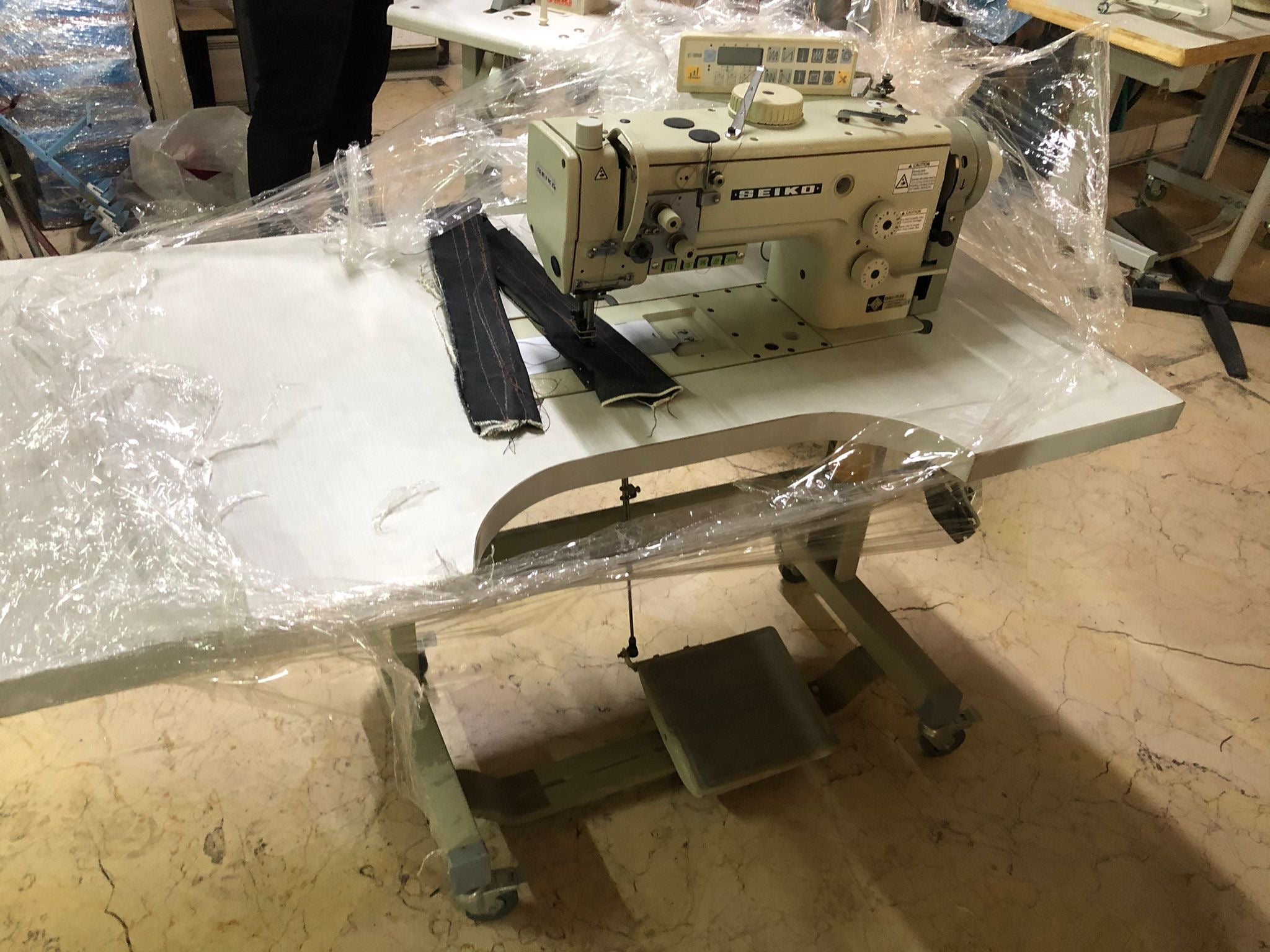

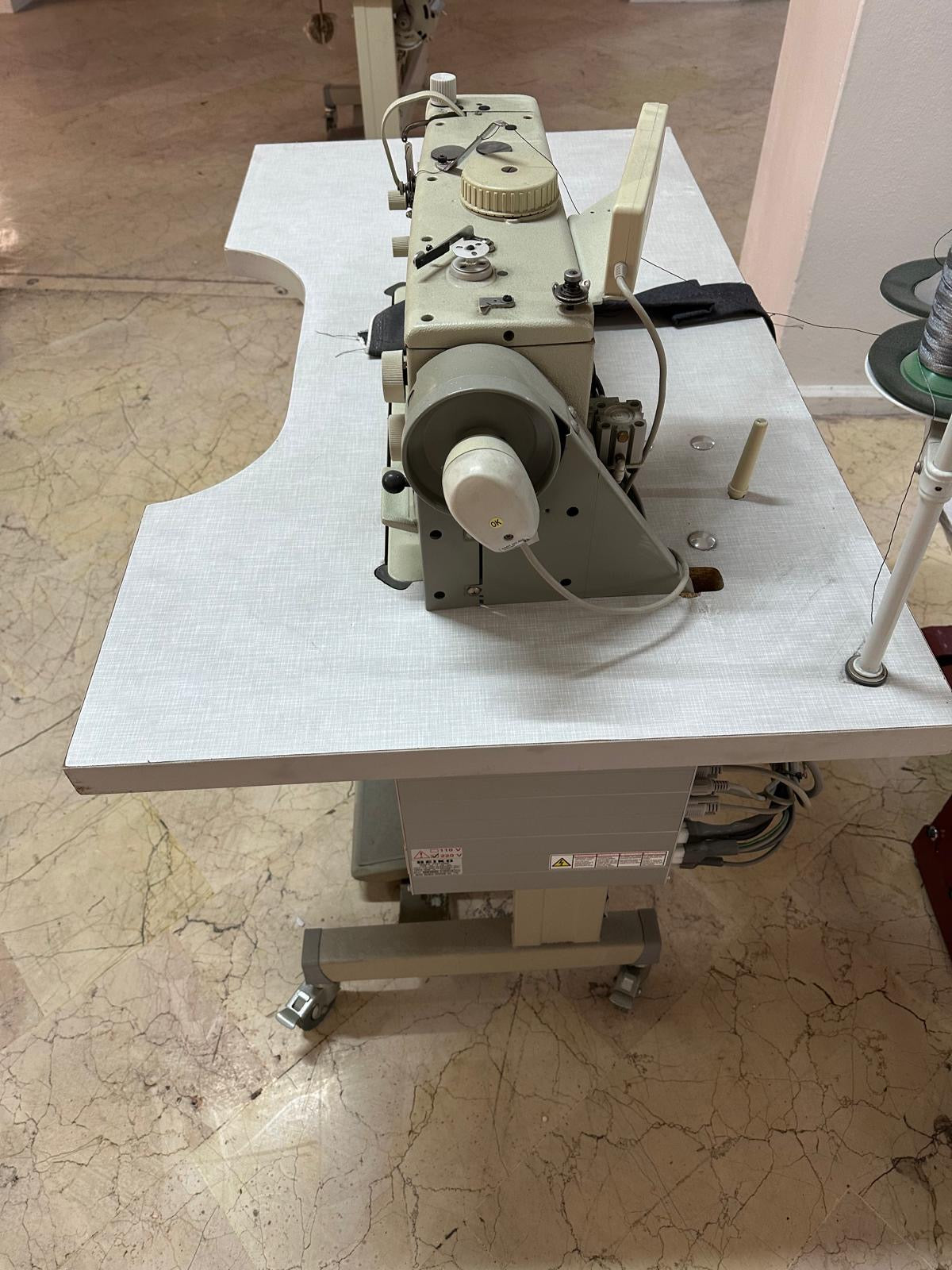

Showroom condition – unused, stored 5+ years
-
Includes head + motor only (no table/stand)
The Seiko BEW-8BLCE-1-BTFL-CD-DS is a heavy-duty flat-bed walking foot industrial lockstitch machine built in Japan. Engineered for medium to heavy-weight materials, it excels in handling leather, vinyl, synthetics, laminated and coated fabrics.
With its compound feed & walking foot system, this machine ensures slip-free sewing and perfect stitch consistency, even across multiple layers of thick material. The automatic back tack, presser foot lift (16 mm clearance), thread trimmer, climbing device, and dual stitching device make it a versatile, high-productivity solution for professional workshops.

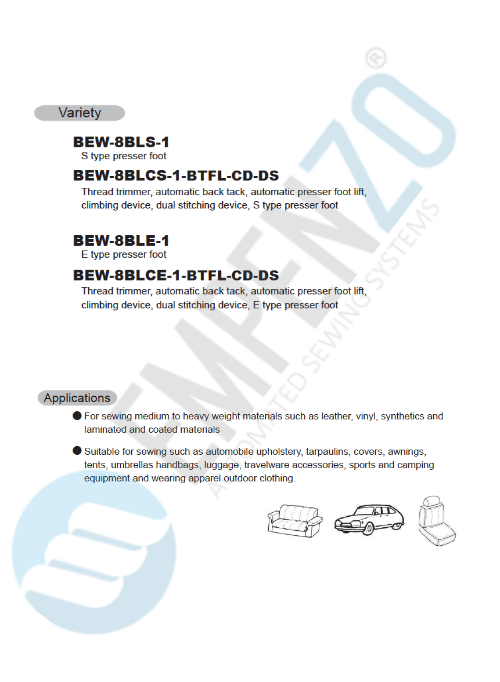

Applications:
-
Leather goods: bags, belts, shoes, wallets
-
Upholstery: furniture, automotive, marine
-
Industrial products: tarpaulins, tents, awnings, covers
-
Travelware, luggage, and outdoor wear
⚠️ Note: Listing includes machine head + motor only (no table/stand).

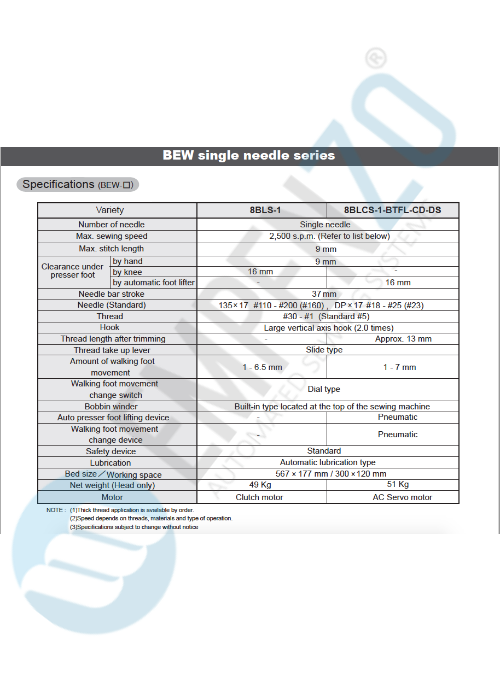

| Feature | Specification |
|---|---|
| Model | BEW-8BLCE-1-BTFL-CD-DS |
| Needle | 135×17 Nm110–Nm200 (DP×17 #18–#25) |
| Max Sewing Speed | 2,500 spm |
| Max Stitch Length | 9 mm (forward & reverse) |
| Presser Foot Lift | 9 mm (manual), 16 mm (automatic) |
| Needle Bar Stroke | 37 mm |
| Walking Foot Movement | 1–7 mm |
| Hook | Large vertical axis hook (2.0× capacity) |
| Thread | #20 – #1 (Standard #5) |
| Bed Size / Working Space | 567 × 177 mm / 300 × 120 mm |
| Net Weight (Head Only) | ~51 kg |
| Motor | AC Servo motor |
| Lubrication | Automatic lubrication system |
| Country of Origin | Japan |
| Condition | Showroom, unused |
