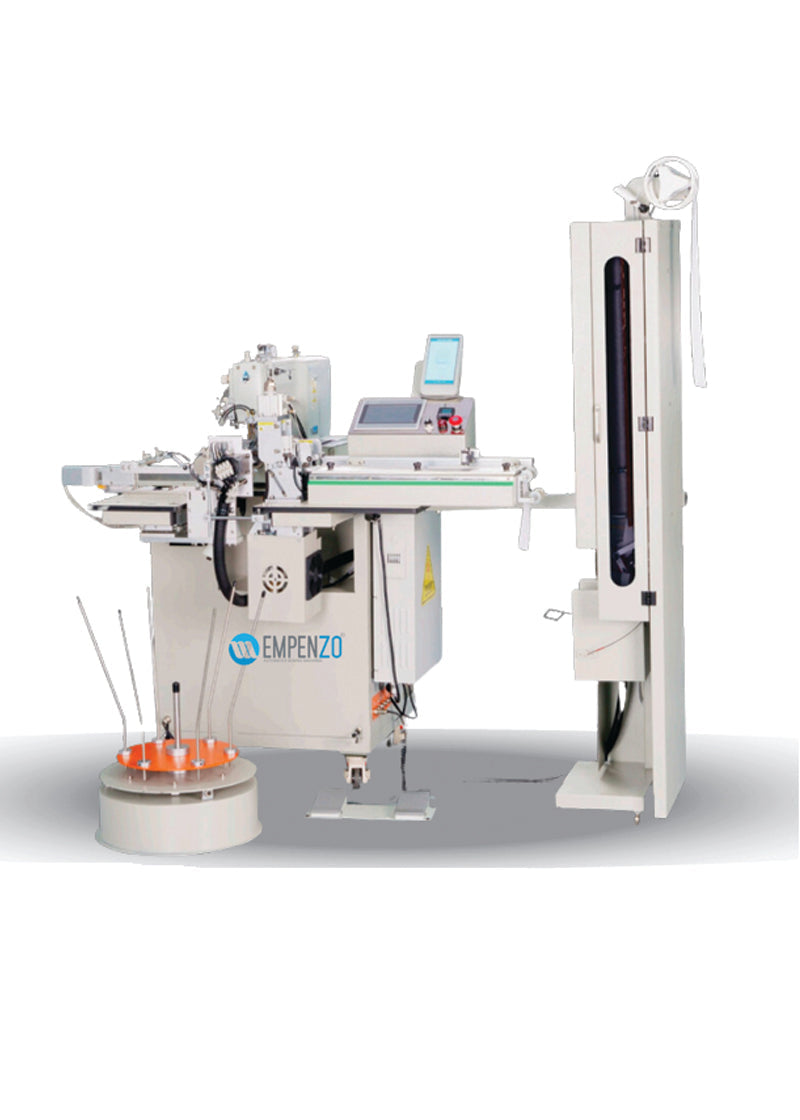

Automatic Elastic Sewing Machine

Product Feature:

1. Using imported SMC electrical component, the running speed is faster, and the durability is much higher than similar machines.
 2. The output can be preset easily in the operation panel, and the length of the elastic band can be adjusted left and right, which is convenient
        and relaxed.single or multiple LOGO positions.
 3. LOGO positioning function, through the color positioning system, it can accurately locate
 4. The setting/feeding device with infrared induction, the feeding device has a heating function, which can remove the crease of raw materials, make the finished product more beautiful. At the same time, infrared induction is used to prevent the elastic band from being deformed due  toexcessive tension during the feeding process.
5. Quick pause function, when the machine is running, the pause function can be realized ，through the control panel as needed, and the It does  not affect the normal feeding during return.
 6. Automatic over-knot function, the elastic band can be automatically sensed and automatically get rid of staples and tapes when it is connected  with them.It can save material and labor, and at the same time protect the cutter machine head.
7. With automatic alarm and shutdown function when thread breakage or no bottom stitch.

8. Rewinding function, the quantity of each bundle can be set according to the needs, and the material can be automatically rewould, which greatly improves the work efficiency.
9. Intelligently control the length, reduce the deviation of elastic band length, and only need to set parameter of length once, do not need to   modify it each time.

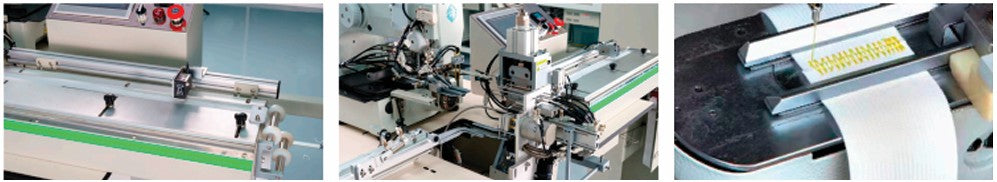

 Performance advantage

Specification parameter

 Specification-EPZ-AT6112-XJ CN
 Use a sewing machine- 1010  Electronic Pattern Machine
 Stitches- Single Lockstitch
 (Max.mm) Sewing area (XxY)-100mm x 100mm
 Feeding device-  Intermittent feeding (pulse motor drive)
 Stitches distance- 0.05-12.7mm
 Max. sewing speed- 2500rpm
 Motor- AC1750W AC-servo motor 750W
 Power supply- 220V Simplex 220V
 Air pressure-0.5Mpa 1.71/min
 Work Clamp- 2-stage,pneumatically actuated
 Elastic band width-10mm-70mm
 Elastic band length-200mm-1100mm
 Fiber Correction Function- OFF/ON
