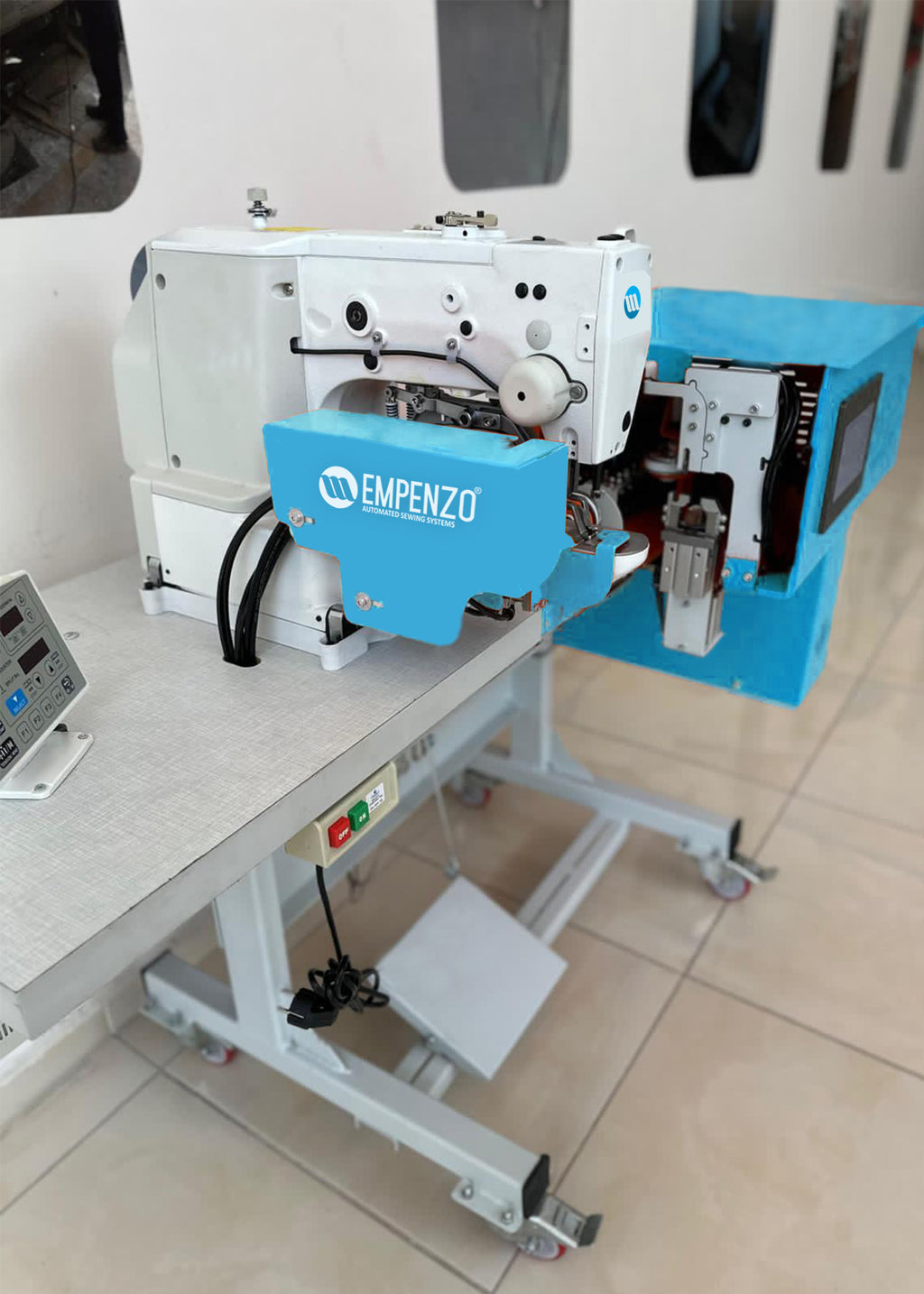

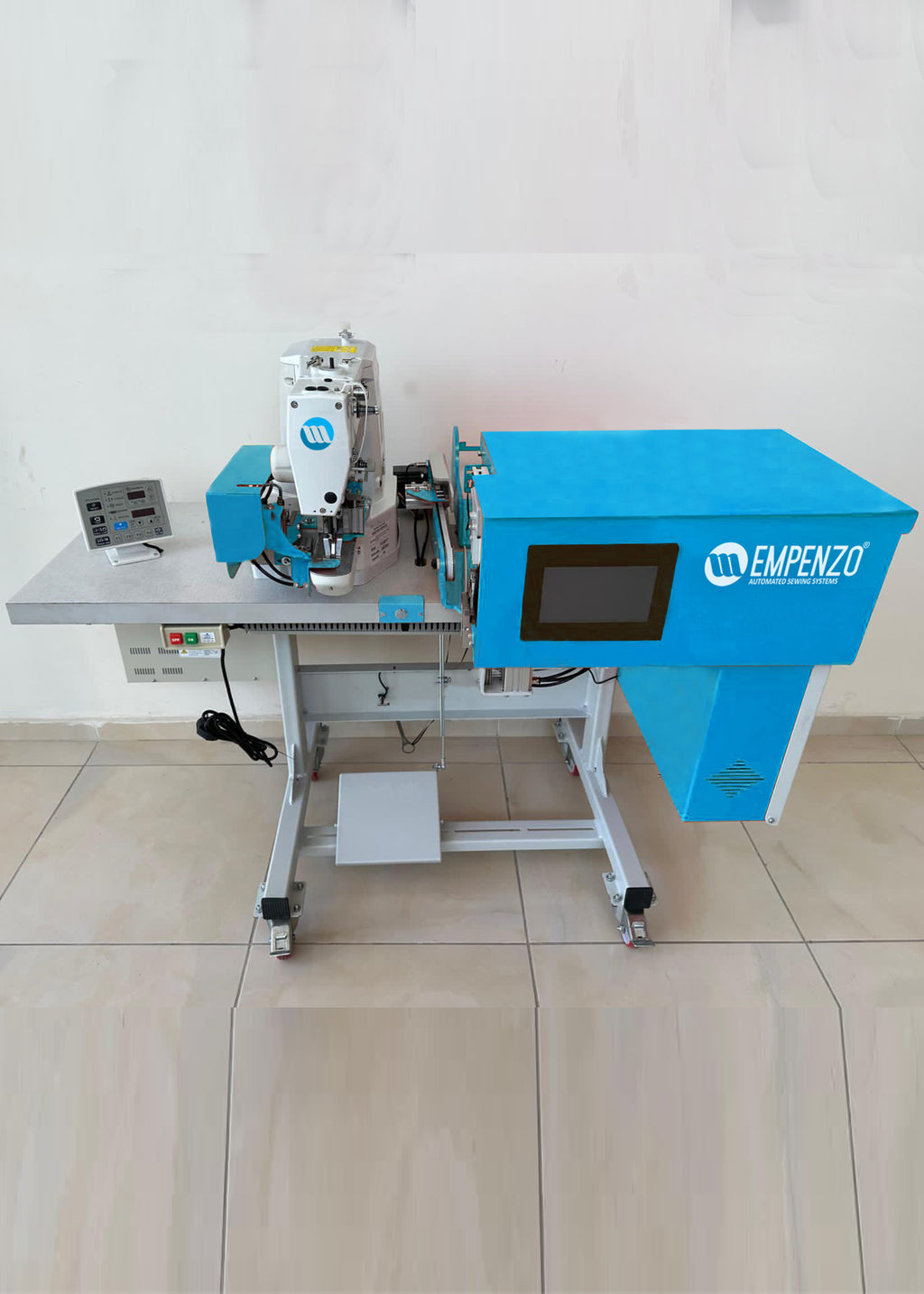

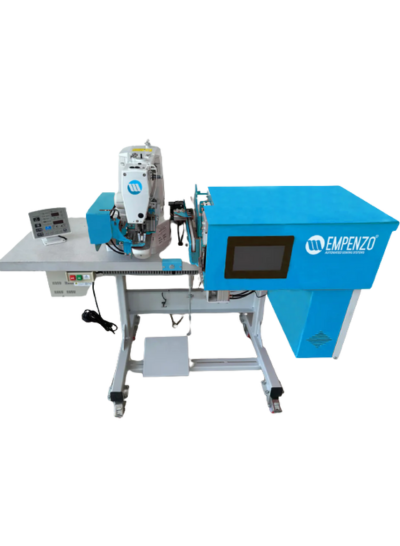

Automatic Loop Hanger Attacher

Direct Drive Bartack sewing head, Maximum sewing speed.

Adjustable Ring size with step motor controller.
Ultrasonic cutting and welding.
To work without outage, 5cm-30cm ribbon width size.
Adjustable ring length with desired measurement, being able
to enter the number of jobs to be done, Node and additional
sensing audible warning systems.

Model Epz-405
Application Ultrasonic Satin Ribbon
Machine Head Direct drive bartack sewing head automatic thread trimming
sewing speed imming 3500 rpm
Ribbon Cutting Unit ultrasonic
Ring Size 5cm-30cm
Ribbon Width 3mm-10mm
Productivity 1000-1100 pcs
Noise measurement according to DIN 45635-48-1-1

Technical Details:
 • Cutting Length: 1-40 cm
 • Cutting System: Ultrasonic Cutting
 • Type of Ribbon: Can do Many Kind of Different Types.
 • Wastage Loop: 0 wastage with ultrasonic Systems limits.
 • Control Panel: FATEK
 • PLC: FATEK
 • Air Cylinder: Mindman

Cold Cutting Ribbon Loop Attacher EPZ-405 LA-TR-AIO-4

CLEAN FOLDING- FLAT FOLDING-S OPTIONS AT THE SAME TIME

Machine Head Driect drive bartack sewing head automatic thread trimming
sewing speed imming 3500 rpm
Ribbon Cutting Unit ultrasonic
Ring Size 1cm-40cm
Ribbon Width 3mm-10mm
Productivity 1250/hours pcs

Cold Cutting Reverse Loop Attacher (Small Size) EPZ-405 LA-TR-AIO-4

Machine Head Direct drive bartack sewing head automatic thread trimming.
sewing speed 3500 rpm
Ribbon Cutting Cold
Ribbon Width 3mm-10mm
Productivity 1250/hours pcs

Ultrasonic Ribbon Loop Attacher Standard Model EPZ-405 LA-TR-AIO-3

Machine Head Direct drive bartack sewing head automatic thread trimming.

OPTIONS STRAIGHT AND CLEAN FOLDED RIBBON LOOP ATTACHER

sewing speed 3500 rpm

Ribbon ULTRASONIC CUTTING
Ribbon Width 3mm-10mm
Productivity 1250/hours pcs

Ultrasonic Ribbon Loop Attacher (Reverse Mode) EPZ-405 LA-TR-AIO-3

Machine Head Direct drive bartack sewing head automatic thread trimming.

OPTIONS STRAIGHT RIBBON LOOP ATTACHER (REVERSE MODE)

sewing speed 3500 rpm

Ribbon ULTRASONIC CUTTING
Ribbon Width 3mm-10mm
Productivity 1250/hours pcs
