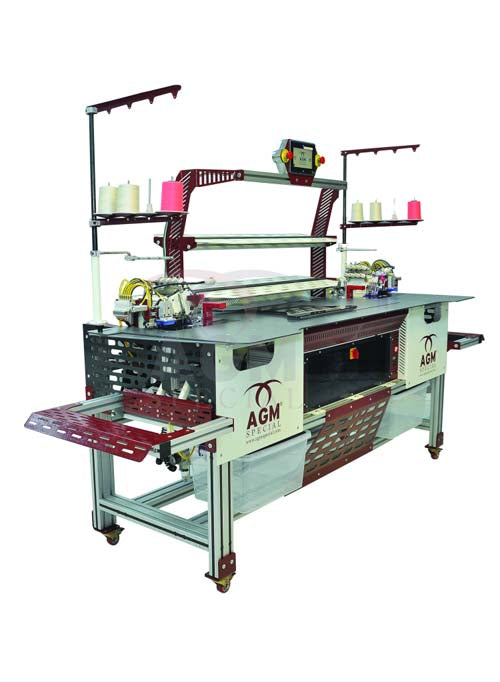

AGM Special Double Head Serging Automat

SKU: KLR 400-T2
(0)
$27,500.00
-21% $35,000.00 $27,500.00
In stock
On backorder

Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

AGM Special Double Head Serging Automat KLR 400-T2

Production Capacity-Approx. 250 panels Per Hour

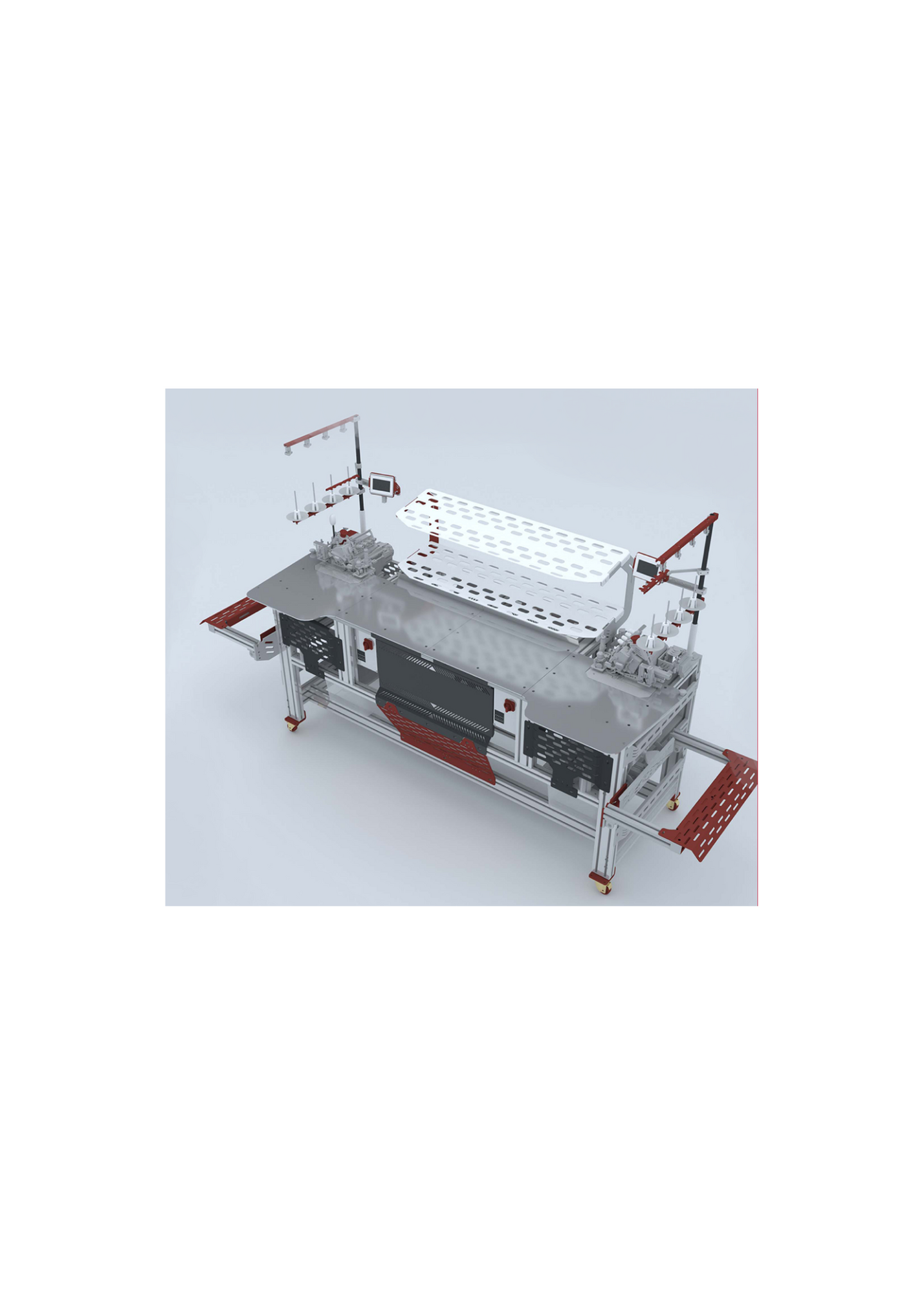

The paradigm-shifting innovation. The world’s first and only double-head serging automat. A real game changer resulted from many years of effort by Agm Special engineers. Innovative and practical, this serging machine can sew simultaneously both right and left trouser panels. The KLR 400-T2 is economically viable because it reduces by half the number of operators previously required for the this type operation.

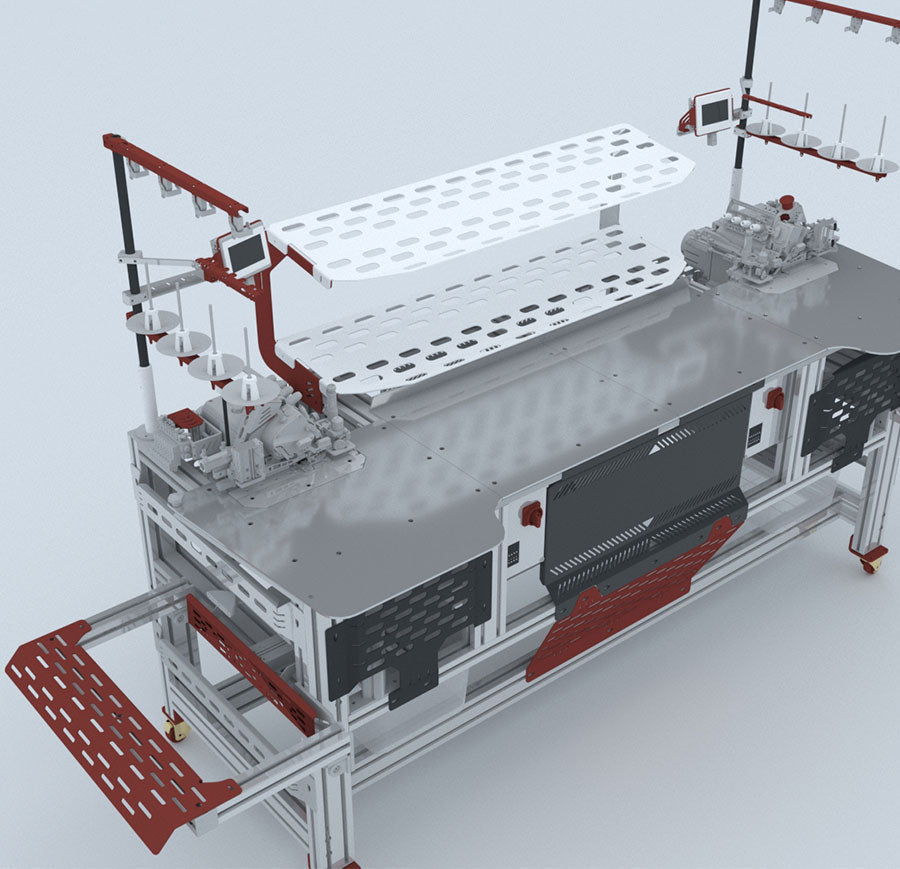

UNIQUE DESIGN

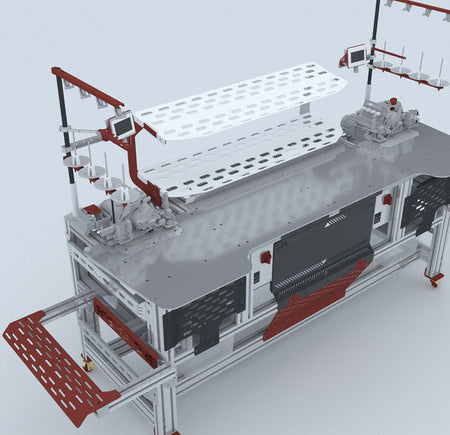

Unique design that allows left and right two panels to be feeding from top to bottom at the same time.

THE PRECISE THREAD CUTTING UNIT
The precise thread-cutting unit (that can cut the threads at the beginning and at the end of the process) (patented) with a double knife developed by a professional AGM Special R&D team.

SPECIALLY DESIGN FOR JEANS

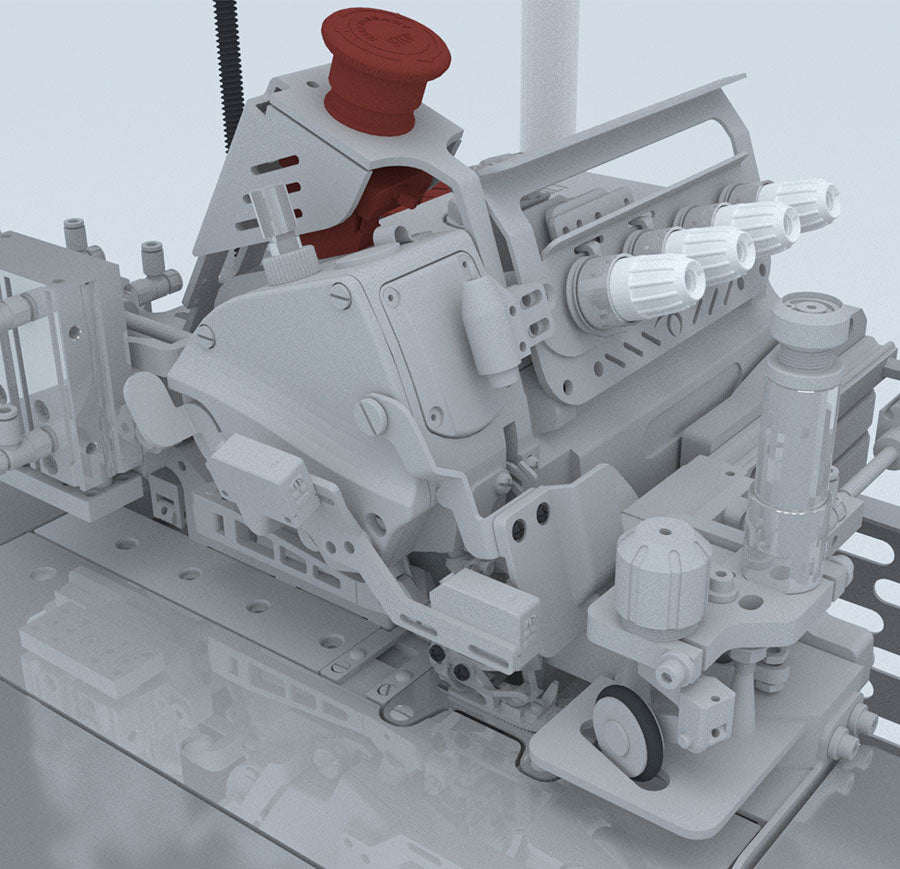

Specially designed for jeans fabric 4-thread left hand and  4-thread standard overlock machine head.

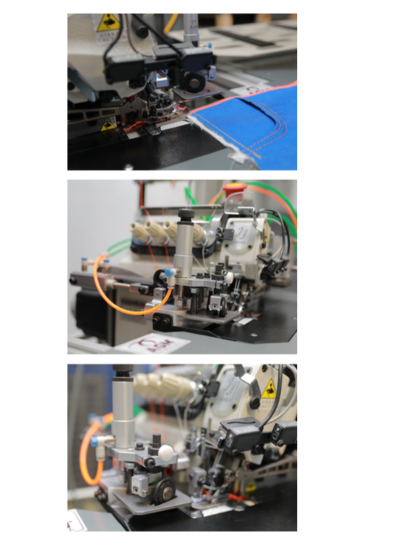

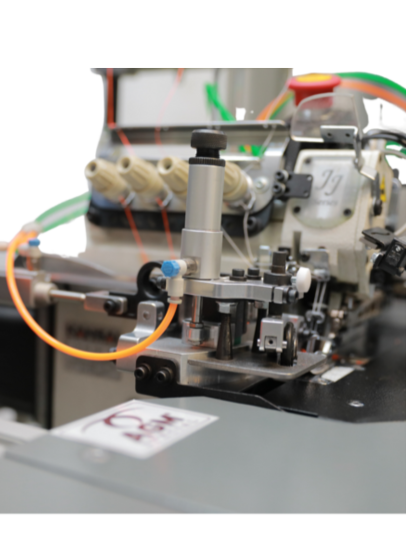

NEW DESIGNED ADJUSTABLE ACCURATE ZYPPY UNIT
New designed adjustable accurate zyppy unit that moves left- right and up-down according to different kinds of fabrics(light to heavy fabrics included full lycra and power stretches).


TECHNICAL FEATURES

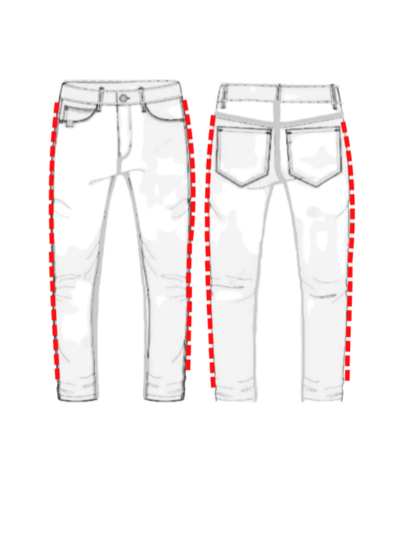

  • Unique design that allows left and right two panels of the jeans trousers to be feeding from top to bottom at the same time.
  • The precise thread-cutting unit (that can cut the threads at the beginning and at the end of the process) (patented) with a double knife developed by a professional AGM Special R&D team.
  • Specially designed for jeans fabric 4-thread left hand and 4-thread standard overlock machine head.
  • New designed adjustable accurate zyppy unit that moves left- right and up-down according to different kinds of fabrics(light to heavy fabrics included full lycra and power stretches).

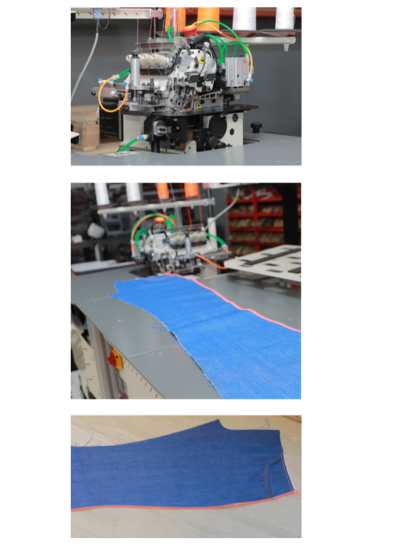

  • All kinds of deeply curved forms and straight forms of the panels can be surging precisely through the new fabric edge guide designed by AGM Special R&D experts (patented).
  • New designed stacker unit adjustable towards up and down for different lengths of panels.
  • Very easy-to-use touch screen with Turkish, English, and Spanish languages option.

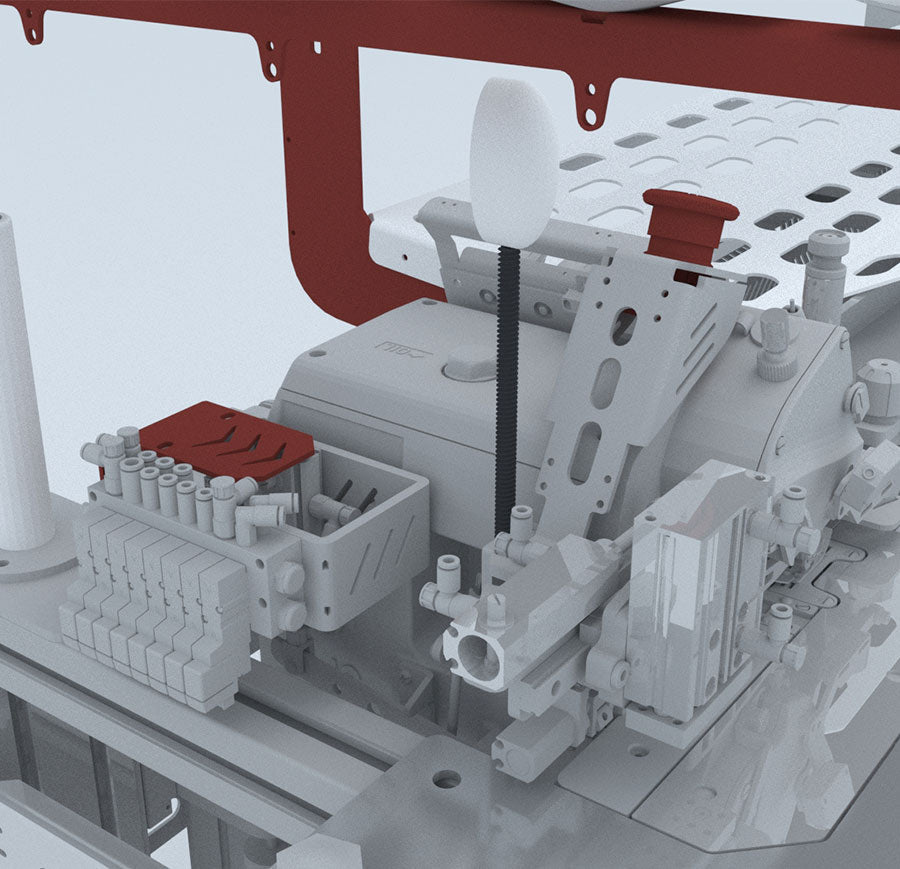

  • The new automatic double-tension system enables automatically the tension while stitching and tension while empty chain stitch separately.

OPTIONS

GUAGE SET OPTIONS

Standard Guage Set :
Needle Distance : 3 mm
Threads No : 4 threads
Guage Set Size  : 9mm
Optional Gauge Sets :
Threads No : 3 threads
Needle Distance : 2-3 mm
Serging Width : 3mm – 9mm
Threads No : 4 threads
Needle Distance : 2-3 mm
Serging Width : 5.5mm – 9mm

TECHNICAL SPECITICATIONS

Thread Cutting Unit : Double knife developed by AGM Special.
Machine Head : 4 thread overlock
Motor : Direct drive servo electronic motor.
Zyppy Unit : Adjustable up-down , left-right designed by AGM Special.
Stacker Unit : Adjustable up-down.
Fabric Edge Guide : Suitable for deeply curved forms of the panels.
Tension Mechanism : Double tansion system enables automaticly stictching and empty chain stitch seperately.

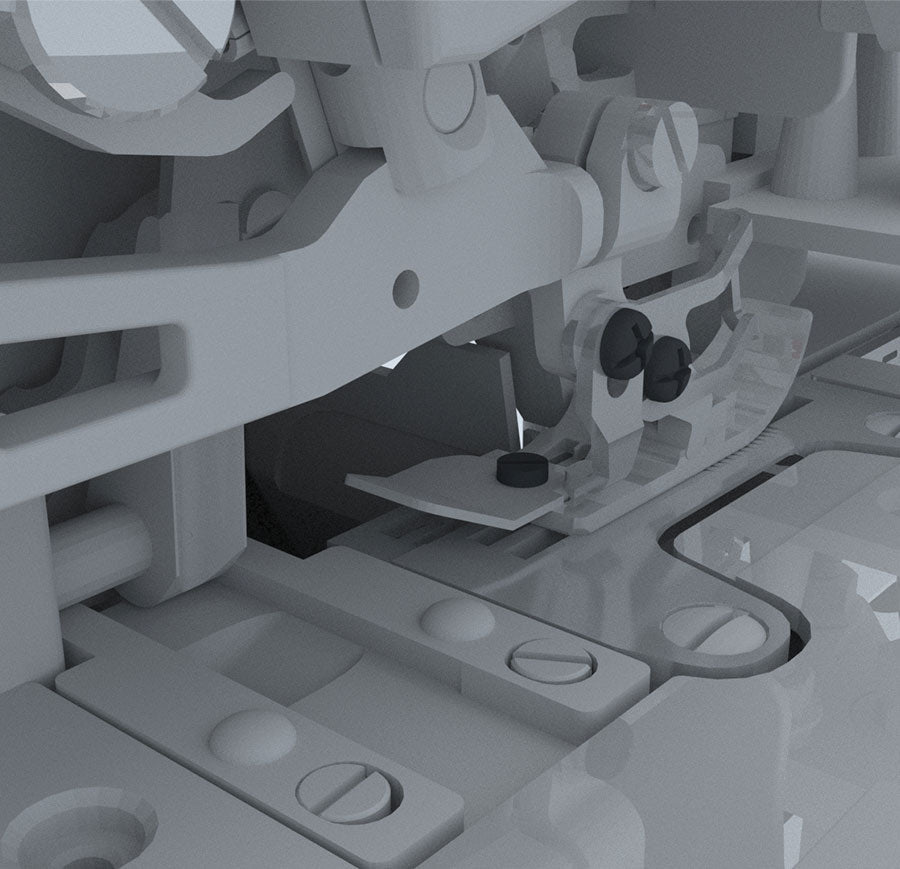

Presser Foot : Special designed guided pressure foot by AGM Special.
Touch Screen Easy to use touch screen with english , turkish and spanish languages option.
Voltage : 220-240v 60Hz
Power : 4800-5600w
Air Pressure : 6 bar
Air Consumption : 8 lt / min.
Daily Capacity : 6000 panels/8 hours.
Net Weight : 250 kg.
Gross Weight : 300 kg.
Dimensions 200x120x160 cm.
